Description

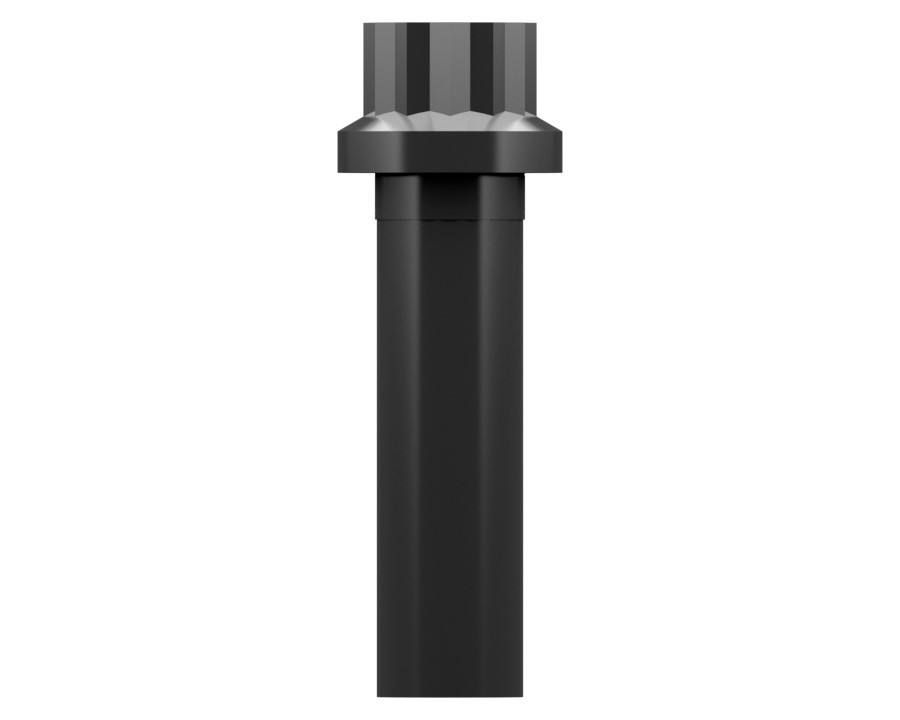

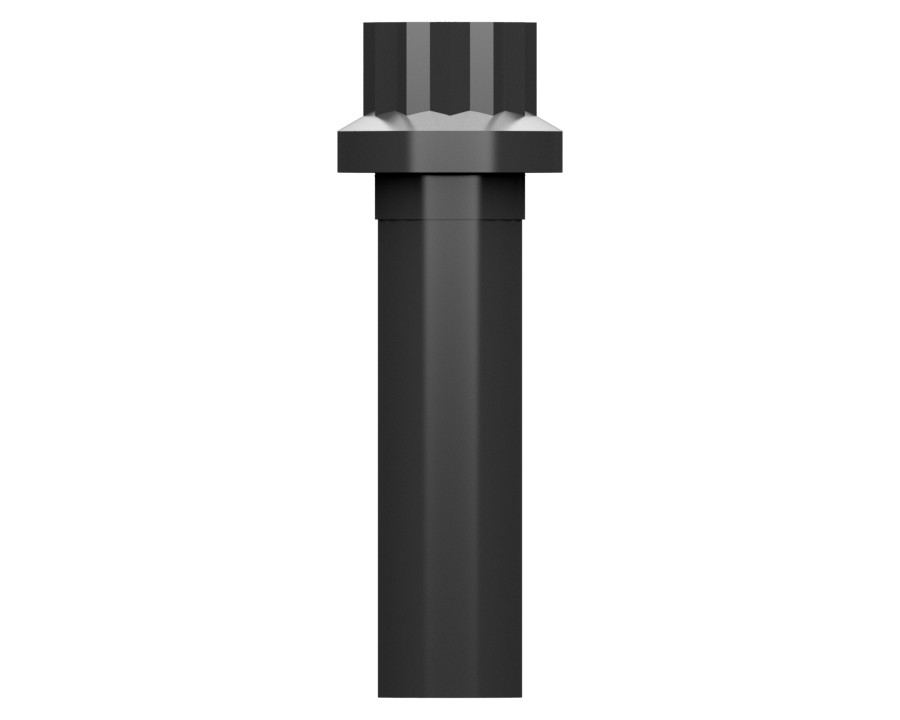

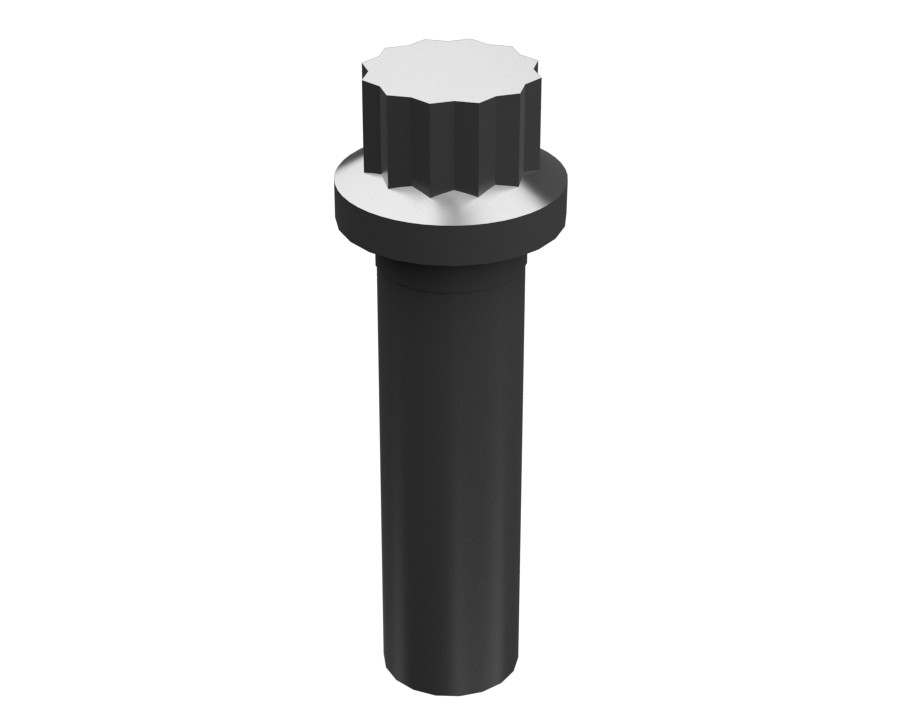

Track bolts are used to secure track shoes to the link assembly.
Specifications
| Bolt Size | 1/2 in |
|---|---|
| Locking Feature | None |
| Class or Grade | Cat/ASTM F2882 (170 ksi) |
| Thread Size (Diameter × Pitch) | 1/2×13 mm |
| Thread Size | 0.500 mm (0.02 in) |
| Thread Direction | RH |

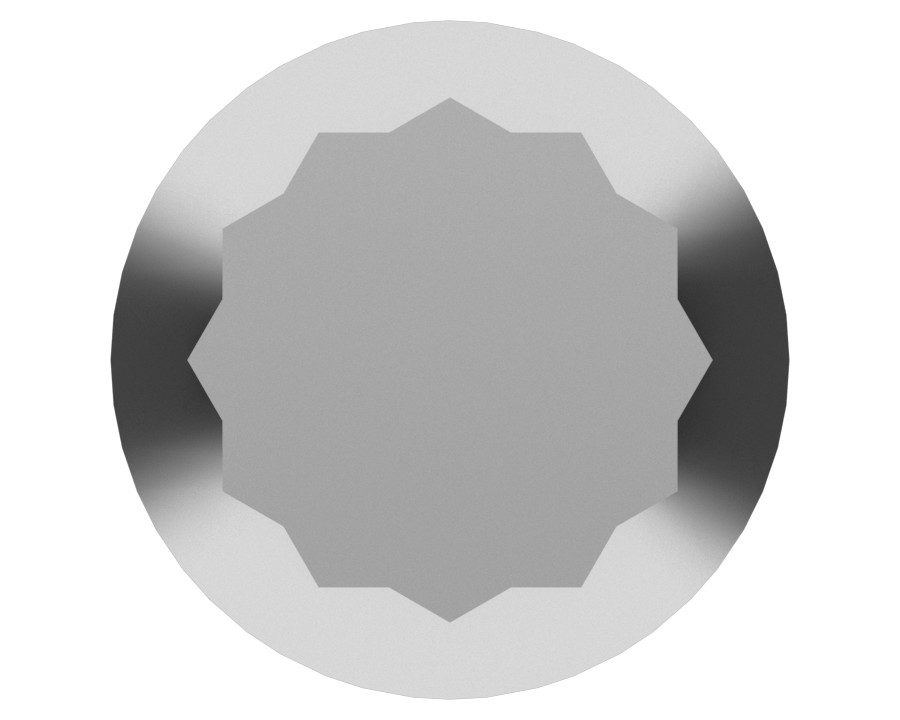

| Type | 12-Point Head Bolt |
| Bolt Length | 44.45 mm (1 3/4 in) |
| Material | STEEL |
| Bolt Type | 12 Point Head |
| Coating | Plain With Corrosion Inhibitor or Black Oxide With Corrosion Inhibitor |
| Handle Length | 3.97 mm (0.16 in) |
| Flange Diameter | 0.75 in |
Compatible Equipment
- Generator Sets: 3406C, 3516C, 3512B, C4.4, 3512E, 3406B
- Track Loaders: 995, 994K
- Cold Planers: TH55-E70
- Wheel Excavators: MD6250, MD6310
- Engines: C15, C32, C27, C18, C12
- Compactors: C-15
- Dozers: D11T, D10R, D11R, D11, D10N, D11N, D7H, D9N, D9R, D9L, D4E, D8L
- Excavators: 3508B, 657G, 3512C, 3516E, 3516B, 637G, 637E, 6060, 621G
- Wheel Loaders: 836, 988F, 992D, 992C
- Off-Highway Trucks: 785D, 770G, 785, 777E, 777D, 773E, 793D, 771D, 789, 772G, 773F, 740, 773D, 740B, 789D, 777, 775G, 793, 735, 773
- Asphalt Pavers: AD45, AD63
Additional information
| Machine Model | 3406B, 3406C, 3508B, 3512B, 3512C, 3512E, 3516B, 3516C, 3516E, 6060, 621G, 637E, 637G, 657G, 735, 740, 740B, 770G, 771D, 772G, 773, 773D, 773E, 773F, 775G, 777, 777D, 777E, 785, 785D, 789, 789D, 793, 793D, 836, 988F, 992C, 992D, 994K, 995, AD45, AD63, C-15, C12, C15, C18, C27, C32, C4.4, D10N, D10R, D11, D11N, D11R, D11T, D4E, D7H, D8L, D9L, D9N, D9R, MD6250, MD6310, TH55-E70 |
|---|---|
| Equipment Type | Excavators, Wheel Excavators, Wheel Loaders, Track Loaders, Dozers, Off-Highway Trucks, Compactors, Asphalt Pavers, Cold Planers, Engines, Generator Sets |
| Part Source | Genuine OEM |
