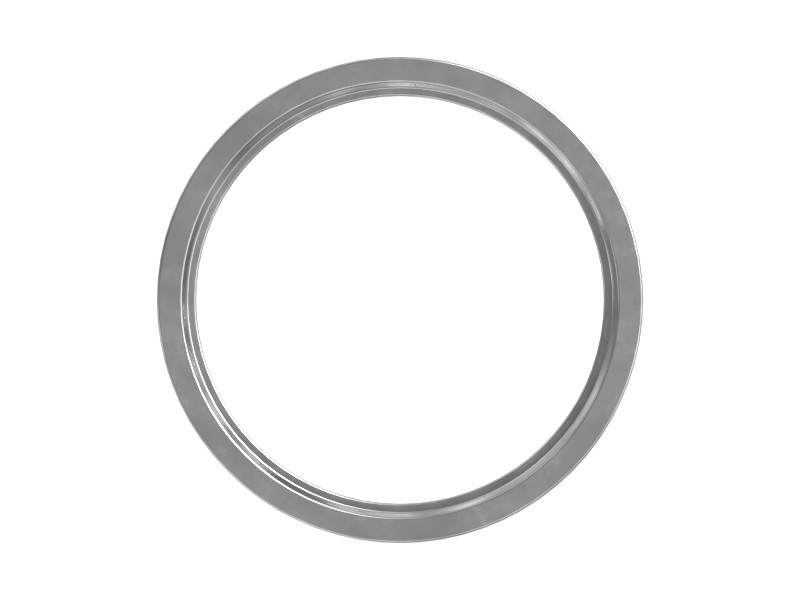

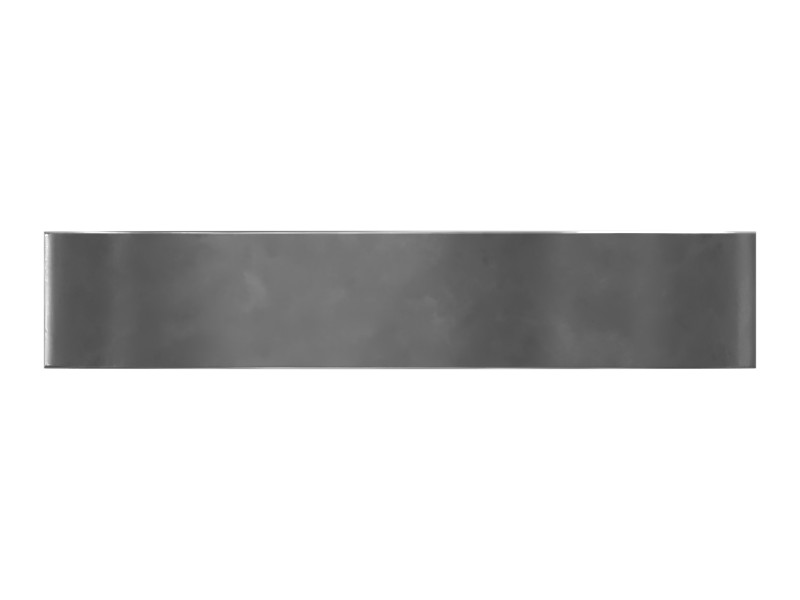

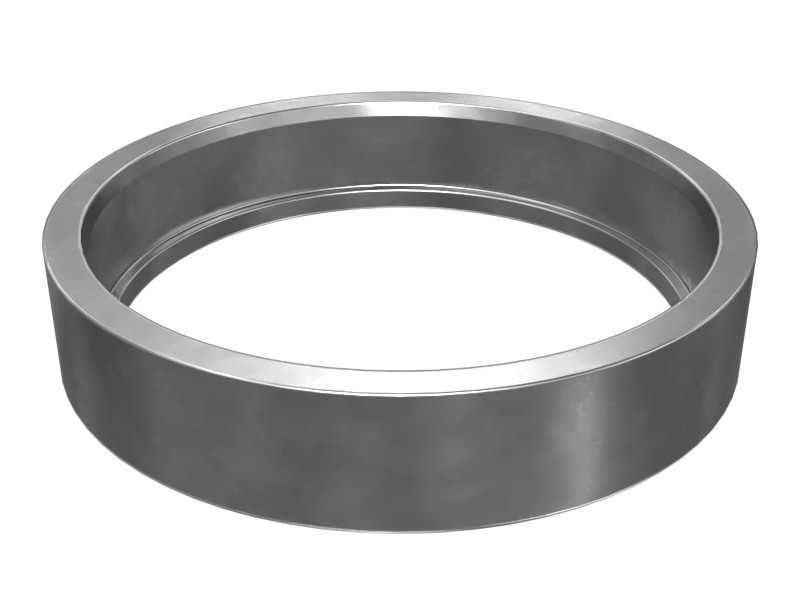

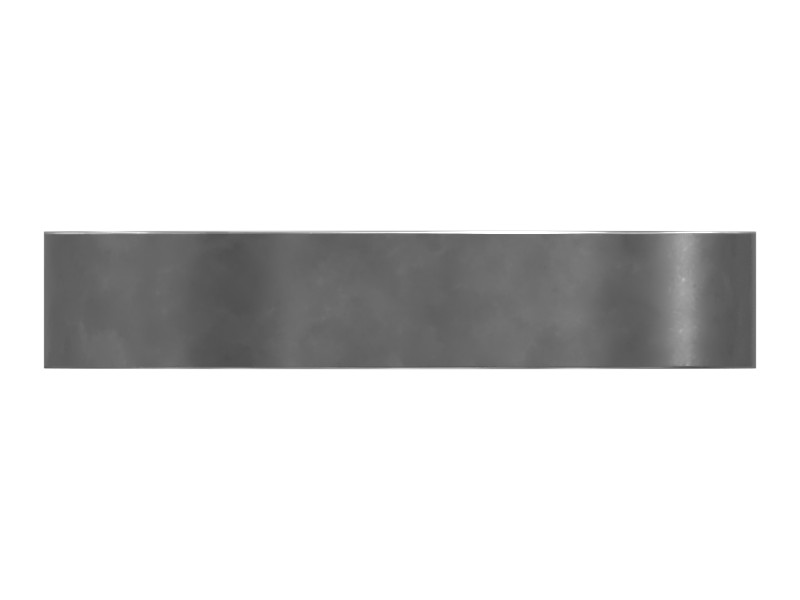

5P-5411 105.847 mm ID Outer Race
Cat® 105.847 mm ID Outer Race for Roller Bearings Used in Transmission Output Drives
Description
Cat bearings are designed for specific applications based on load, operating speed, temperature range, size and past performance, and are manufactured to the highest quality standards for long life and high performance. Cat caged cylindrical roller bearings can withstand heavy radial loads, rapid acceleration and high speeds. Full complement cylindrical roller bearings are suited to very heavy radial loads at moderate speeds. High-capacity cylindrical roller bearings can handle both heavy radial loads and extremely high rotational speeds. Cat cylindrical roller bearings are purpose-built for their specific applications to ensure that all power train components work together as a system.
Features
- Heavy press-fit outer bearing race
- Single flange
- Outside Diameter: 120.056 mm (4.7266 in)
- Inside Diameter: 105.847 mm (4.167 in)
- Height: 23.000 mm (0.9055 in)
Applications
Cat cylindrical roller bearings are commonly used in transmission and axle systems, pinion and drive gear groups, and clutch systems. Refer to your Operation and Maintenance Manual or contact MECHSC for more information.
Specifications
| Material | Alloy Steel |
|---|---|
| Outside Diameter | 120.056 mm (4.7266 in) |
| Inside Diameter | 105.847 mm (4.167 in) |
| Height | 23.000 mm (0.9055 in) |
Compatible Equipment
- Track Loaders: 972, 816F
- Compactors: 815, 816, 814
- Excavators: 3516B
- Wheel Loaders: 966 GC, 972M, 966M
Additional information
| Machine Model | |
|---|---|
| Equipment Type | |
| Part Source | Genuine OEM |
