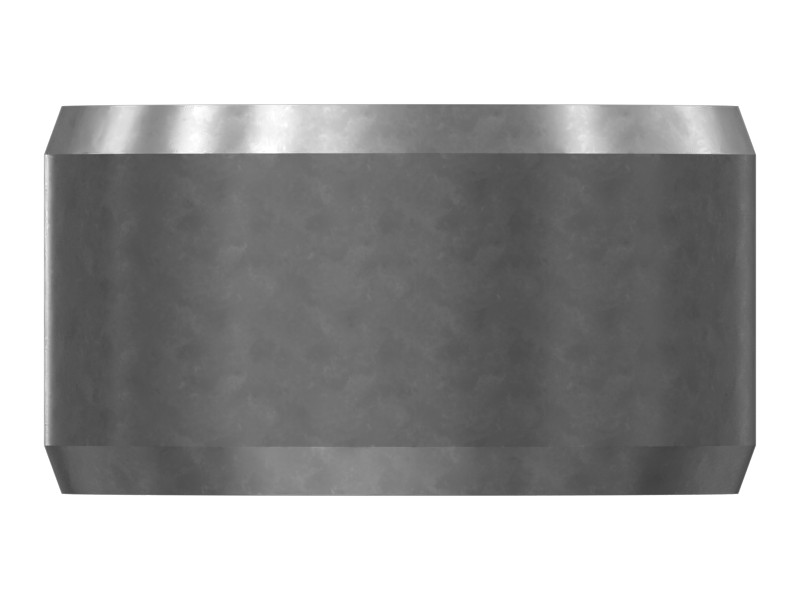

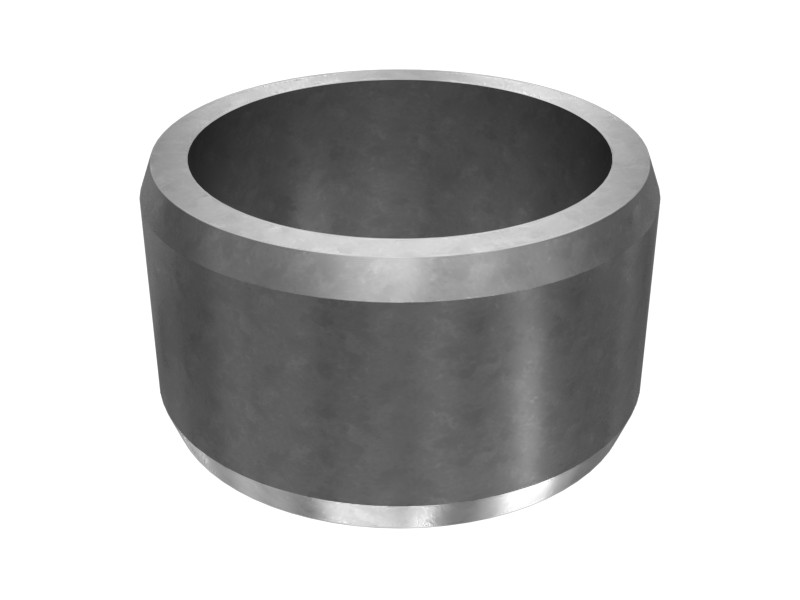

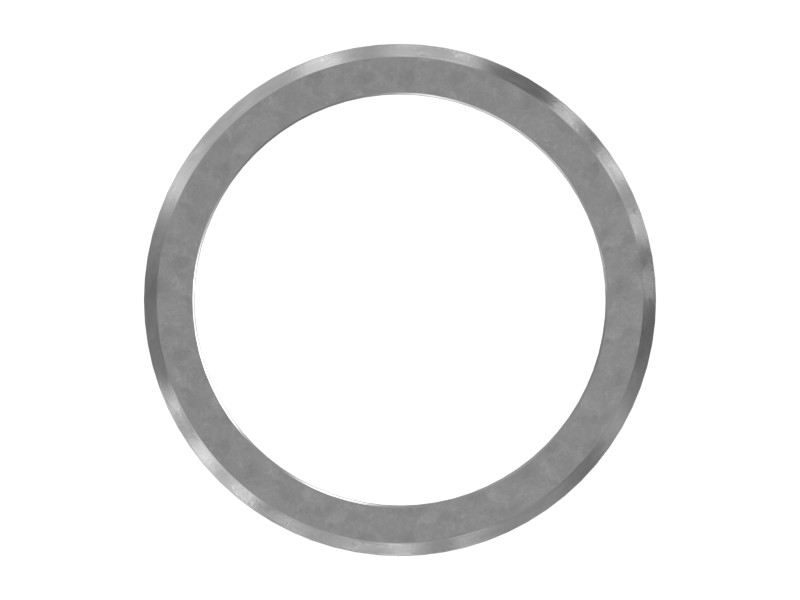

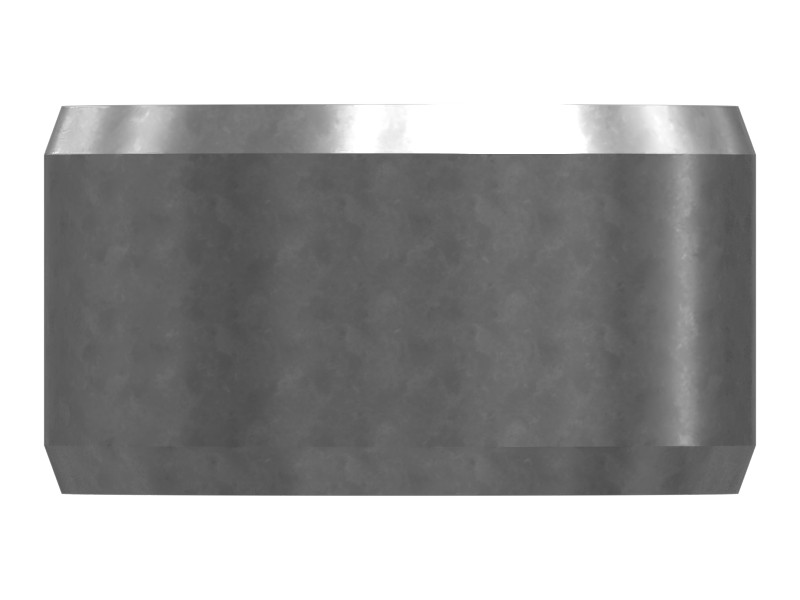

5P-5405 55.519 mm OD Inner Race
Cat® 55.519 mm OD Inner Race for Roller Bearings Used in Torque Converters
Description
Cat bearings are designed for specific applications based on load, operating speed, temperature range, size and past performance, and are manufactured to the highest quality standards for long life and high performance. Cat caged cylindrical roller bearings can withstand heavy radial loads, rapid acceleration and high speeds. Full complement cylindrical roller bearings are suited to very heavy radial loads at moderate speeds. High-capacity cylindrical roller bearings can handle both heavy radial loads and extremely high rotational speeds. Cat cylindrical roller bearings are purpose-built for their specific applications to ensure that all power train components work together as a system.
Features
- Bearing Inner Race Without Flange
- Outside Diameter: 55.519 mm (2.1857 in)
- Inside Diameter: 45.000 mm (1.7716 in)
- Height: 30.160 mm (1.187 in)
Applications
Cat cylindrical roller bearings are commonly used in transmission and axle systems, pinion and drive gear groups, and clutch systems. Refer to your Operation and Maintenance Manual or contact MECHSC for more information.
Specifications
| Material | Alloy Steel |
|---|---|
| Outside Diameter | 55.519 mm (2.1857 in) |
| Inside Diameter | 45 mm (1.7716 in) |
| Height | 30.16 mm (1.187 in) |
Compatible Equipment
- Dozers: D10, D11, D11T, D11R, D10R, D11N, D10N, D10T2, D10T, D9R, D8L, D9L, D9N
