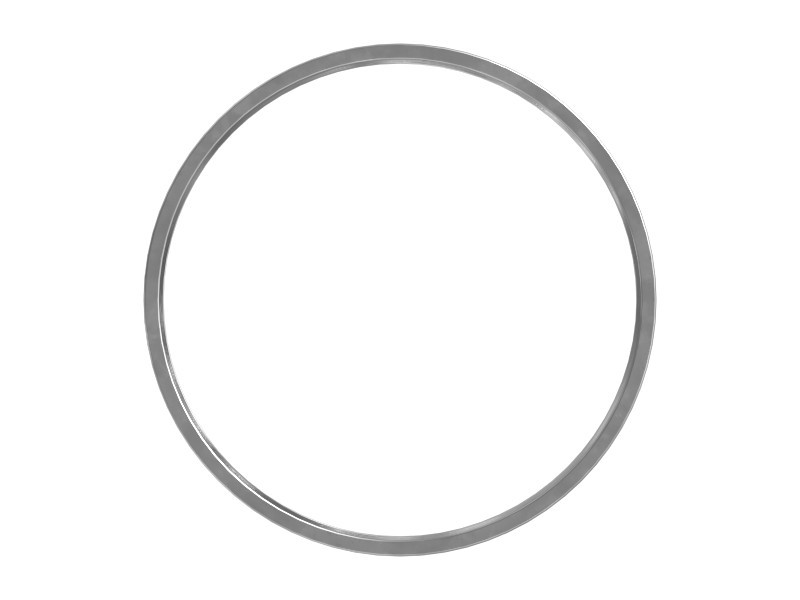

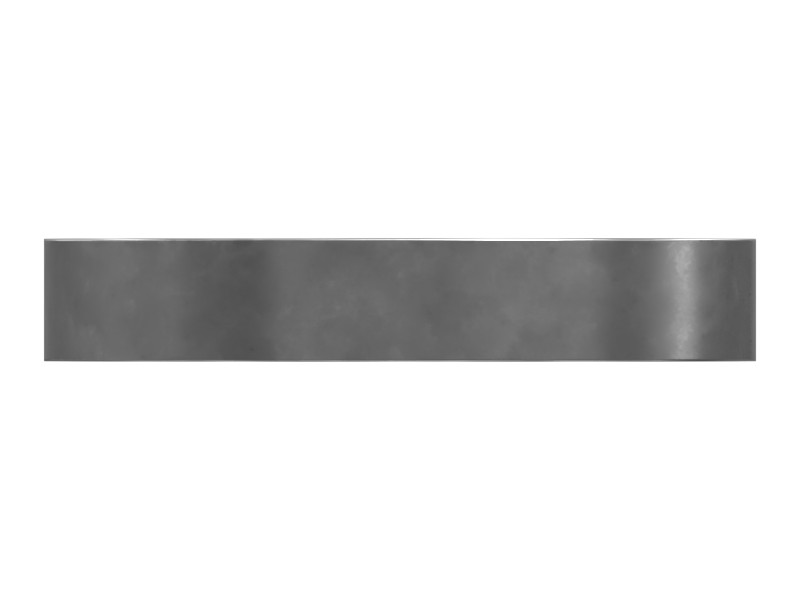

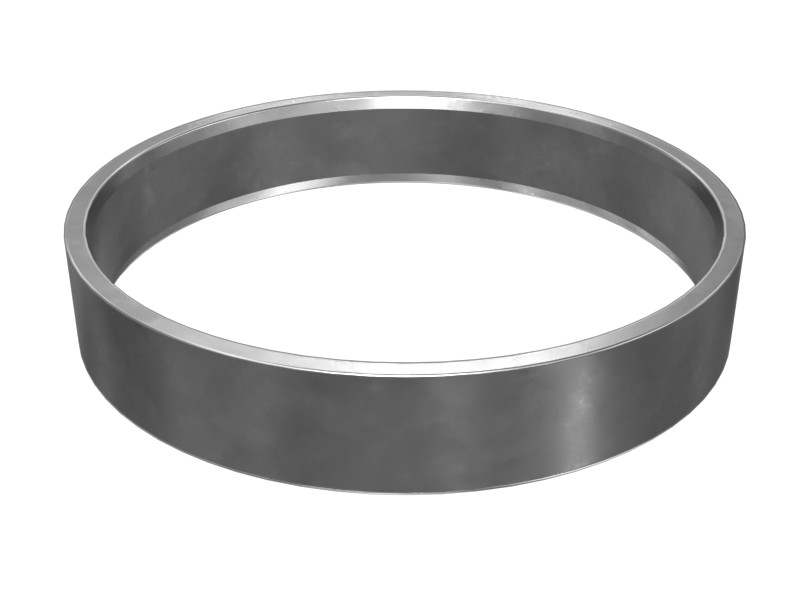

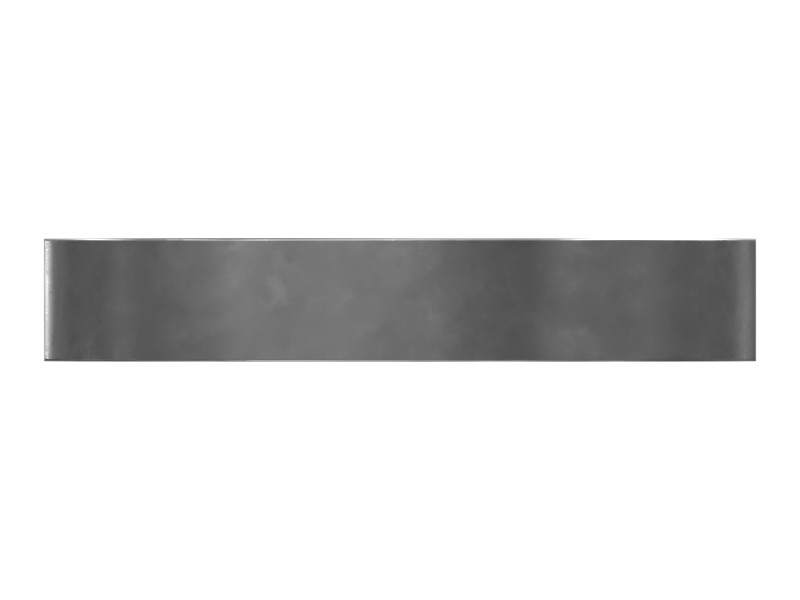

5P-5167 129.631 mm ID Outer Race
Cat® 129.631 mm ID Outer Race for Torque Converter Roller Bearings
Description
Cat bearings are designed for specific applications based on load, operating speed, temperature range, size and past performance, and are manufactured to the highest quality standards for long life and high performance. Cat caged cylindrical roller bearings can withstand heavy radial loads, rapid acceleration and high speeds. Full complement cylindrical roller bearings are suited to very heavy radial loads at moderate speeds. High-capacity cylindrical roller bearings can handle both heavy radial loads and extremely high rotational speeds. Cat cylindrical roller bearings are purpose-built for their specific applications to ensure that all power train components work together as a system.
Features
- Heavy press-fit outer bearing race
- Outside Diameter: 140.058 mm (5.514 in)
- Inside Diameter: 129.631 mm (5.1035 in)
- Height: 24.000 mm (0.9448 in)
Applications
Cat cylindrical roller bearings are commonly used in transmission and axle systems, pinion and drive gear groups, and clutch systems. Refer to your Operation and Maintenance Manual or contact MECHSC for more information.
Specifications
| Material | Alloy Steel |
|---|---|
| Outside Diameter | 140.058 mm (5.514 in) |
| Inside Diameter | 129.631 mm (5.1035 in) |
| Height | 24 mm (0.9448 in) |
Compatible Equipment
- Dozers: D5H
- Excavators: 637E
- Wheel Loaders: 966F, R1600H
Additional information
| Machine Model | |
|---|---|
| Equipment Type | |
| Part Source | Genuine OEM |
