Description

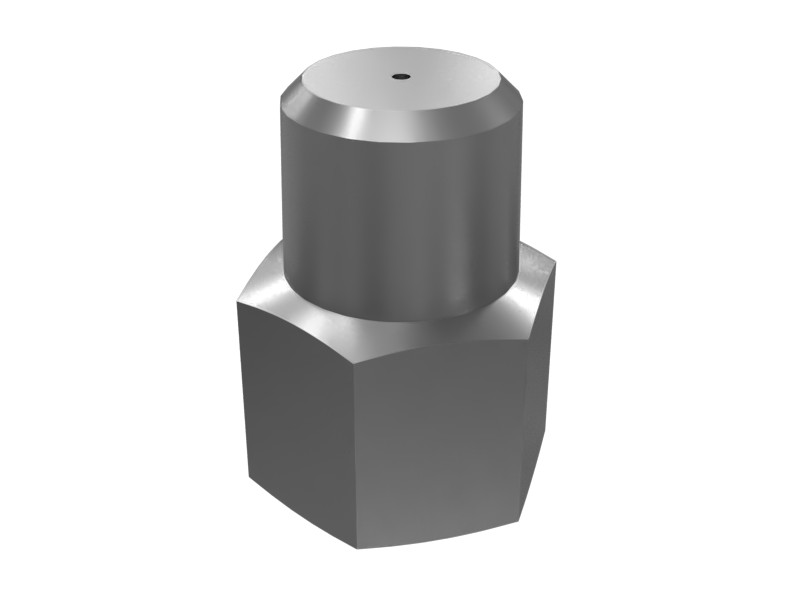

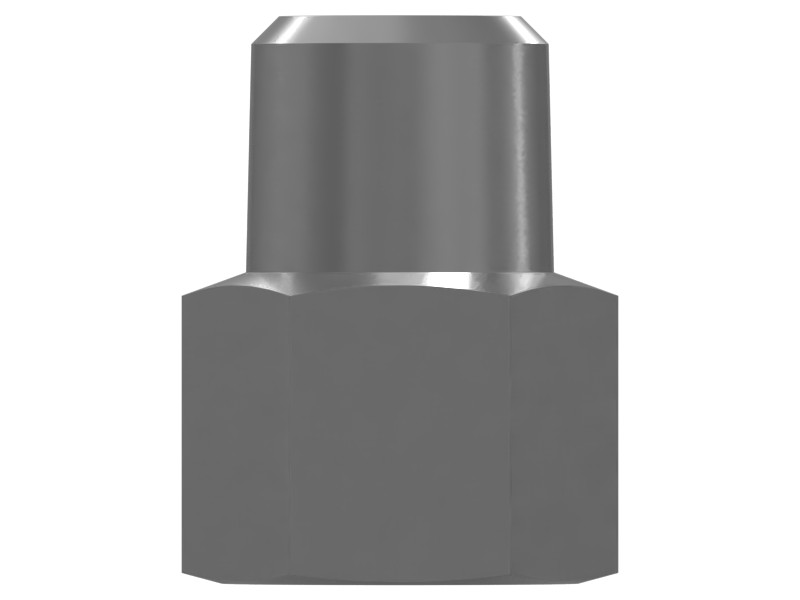

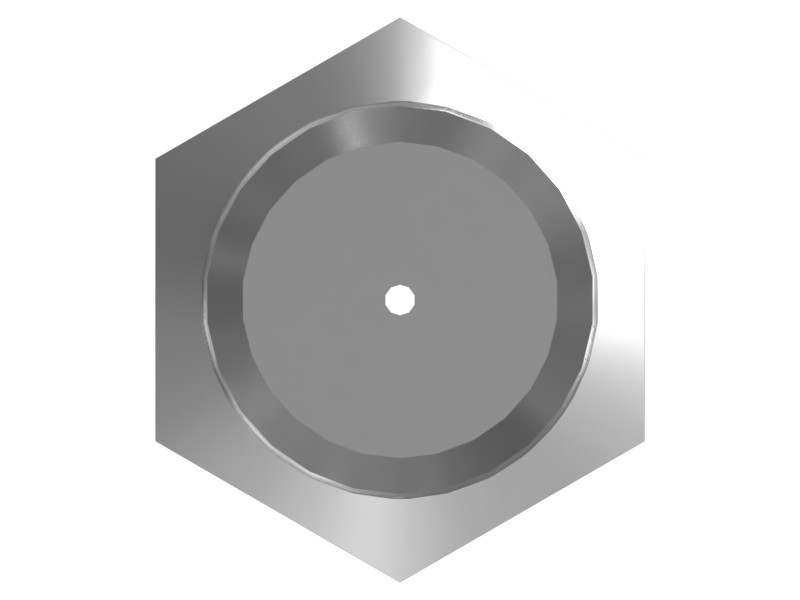

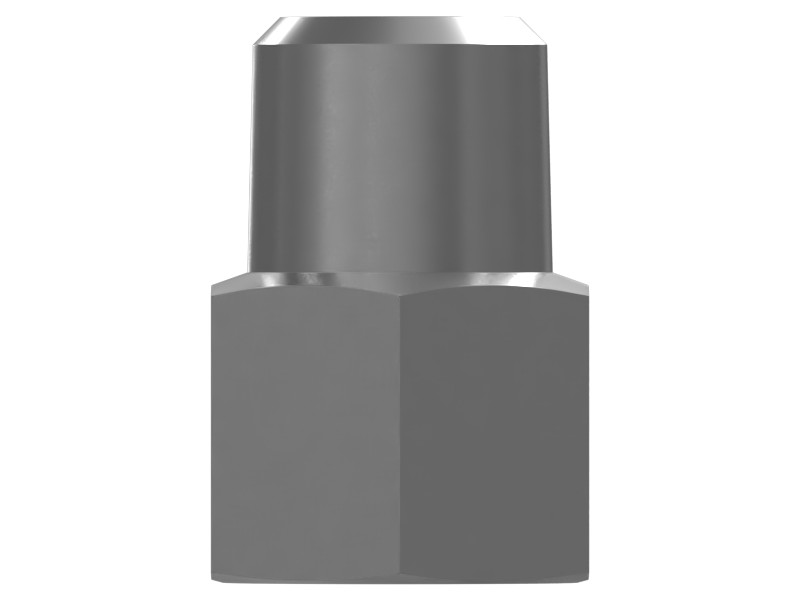

An orifice straight adapter is a fitting used in oil systems. It is designed to connect two pipes or tubes of various sizes, with one end fitting into the larger pipe or tube and the other end fitting the smaller one. In an adapter, the term orifice refers to the tiny opening or hole located in the middle of the fitting. By restricting the amount of oil entering through the fitting, the orifice is used to control the amount of oil flowing through the system.
Attributes
● Connection type is PTF-SAE male stud to PTF-SAE port.
● Orifice size is 0.8 mm.
● High corrosion resistance, durability, and wear resistance.
Applications
Orifice straight adapters are used to connect fluid-carrying hoses and rigid tubes to other system components for efficient, precise control of fluid flow.
Specifications
| Material | Alloy Steel |
|---|---|
| Hose Warning | Improper selection of hose and coupling combinations will void the warranty and may result in serious injury or death, property damage, or component and machine system failure. Cat® hose assembly products are designed and tested as a system to achieve reliable connections, maximizing hydraulic system safety and reliability. In addition, use of properly maintained, appropriate Caterpillar tooling is recommended to ensure hoses are crimped to specification. Using Caterpillar hose with another manufacturer's couplings, or Caterpillar couplings with another manufacturer's hose, may result in hose assemblies that are unreliable, unsafe or perform poorly. Caterpillar does not recommend or endorse this practice. For more information, refer to SAE J1273 Section 6.3 and ISO 17165-2 Section 6.3. |
| Material Description | Brass |
Compatible Equipment
- Dozers: D10
- Wheel Loaders: 992C
Additional information
| Machine Model | |
|---|---|
| Equipment Type | |
| Part Source | Genuine OEM |
