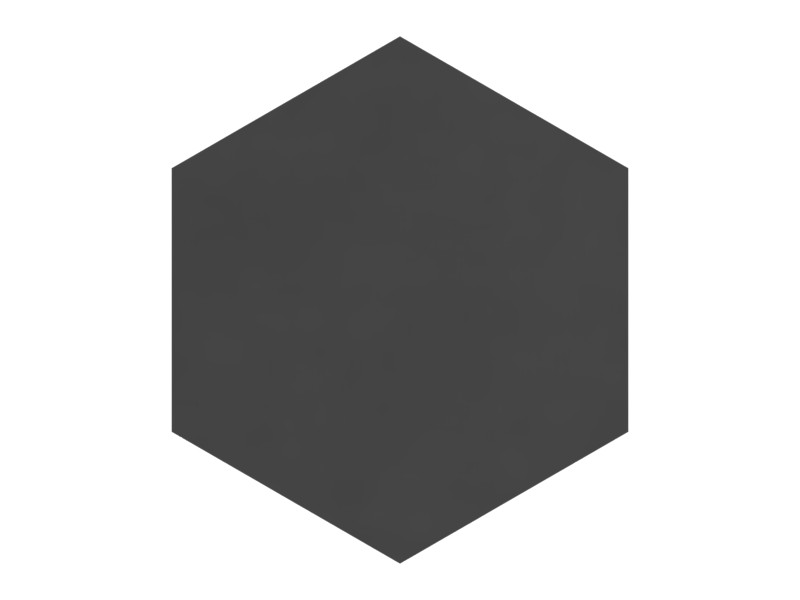

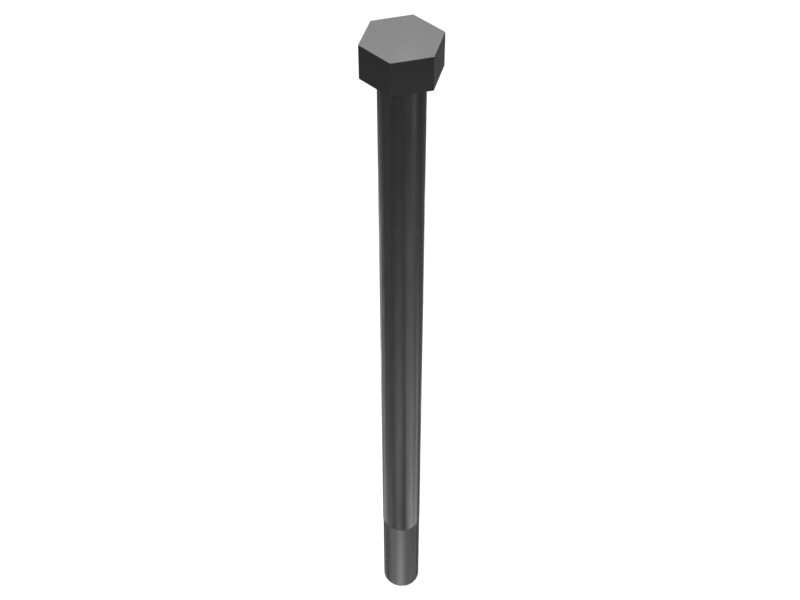

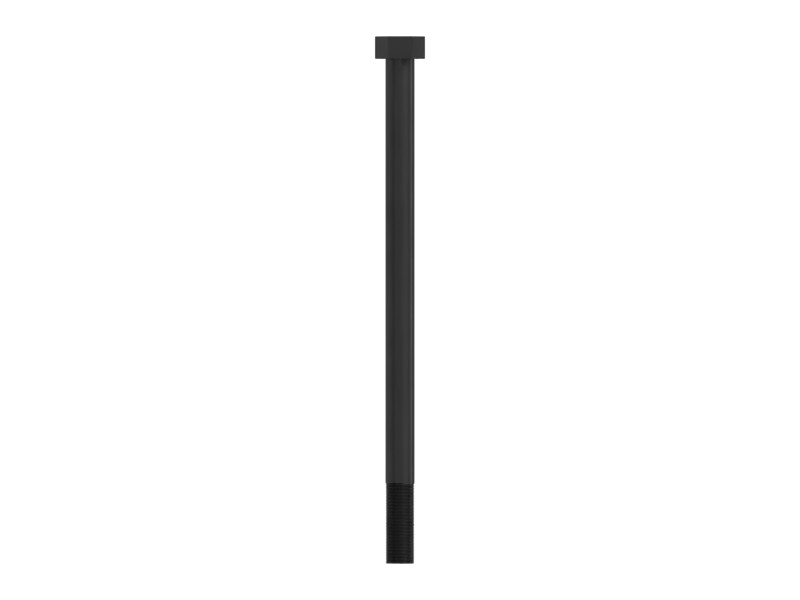

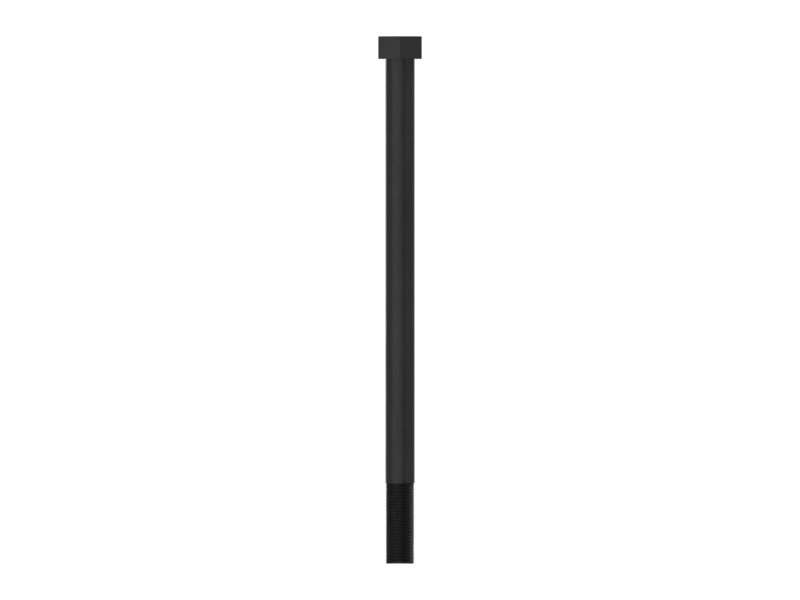

5P-4625 5/8″-11 x 11″ Hex Head Bolt
Cat® 5/8" steel hex head bolt fastens components, generating axial clamping force through thread engagement.
Description
Hex head bolts are used to fasten two or more components together. They have a hexagonal head on one end and a threaded shank on the other. The hex head allows you to turn the bolt with a wrench.
Attributes
- Built to exact specifications for durability and reliability
- Made of steel for excellent strength
Applications
Hex head bolts are used with nuts to assemble two components.
Specifications
| Thread Size | 0.625 mm (0.025 in) |
|---|---|
| Locking Feature | None |
| Thread Direction | RH |
| Bolt Size | 5/8 in |
| Thread Size (Diameter × Pitch) | 5/8×11 mm |
| Class or Grade | SAE J429 Grade 8 (150 ksi) |
| Head Height | 0.48 in |
| Drive Chain | 15/16 in |
| Thread Size (in – TPI) | 5/8-11 in |
| Material Description | SAE J429 Grade 8. Head Marking – 6 Radial Lines (150 ksi Ultimate Tensile Strength) |
| Thread | Rough Milled |
| Bolt Length | 279.4 mm (11 in) |
| Bolt Type | Hex Head |
| Coating | Zinc Plated |
| Handle Length | 234.95 mm (9.25 in) |
Compatible Equipment
- Track Loaders: 953
- Engines: C32
- Dozers: D10N, D10R
