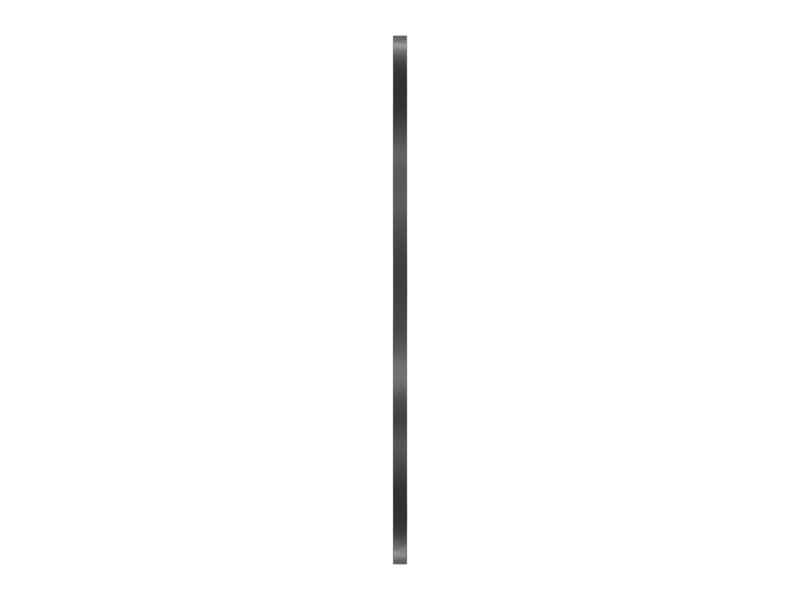

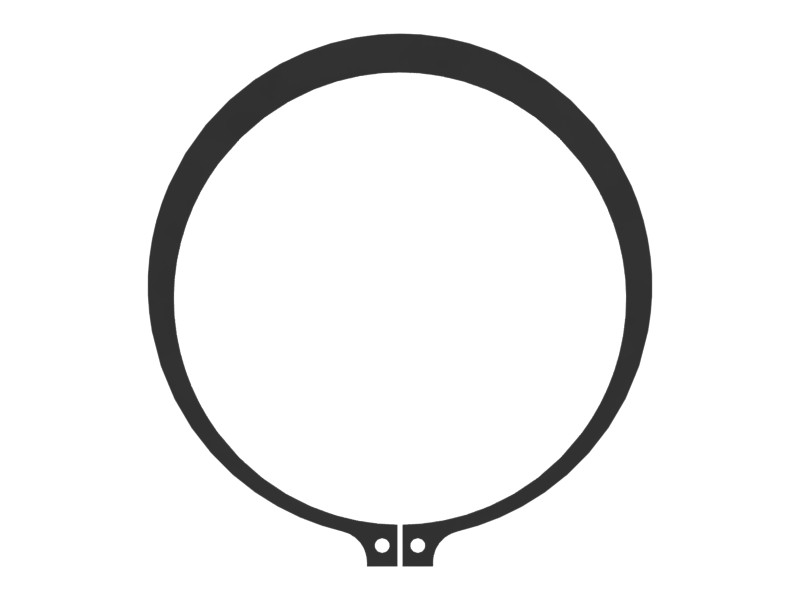

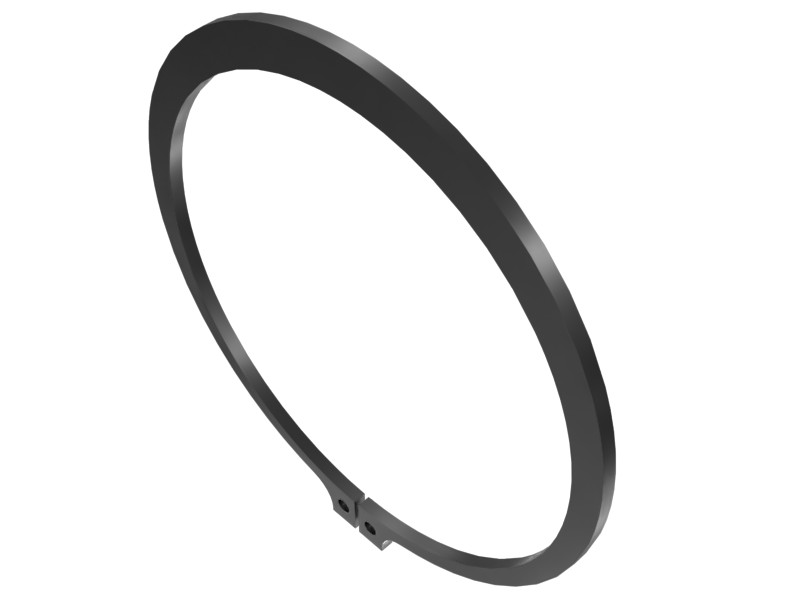

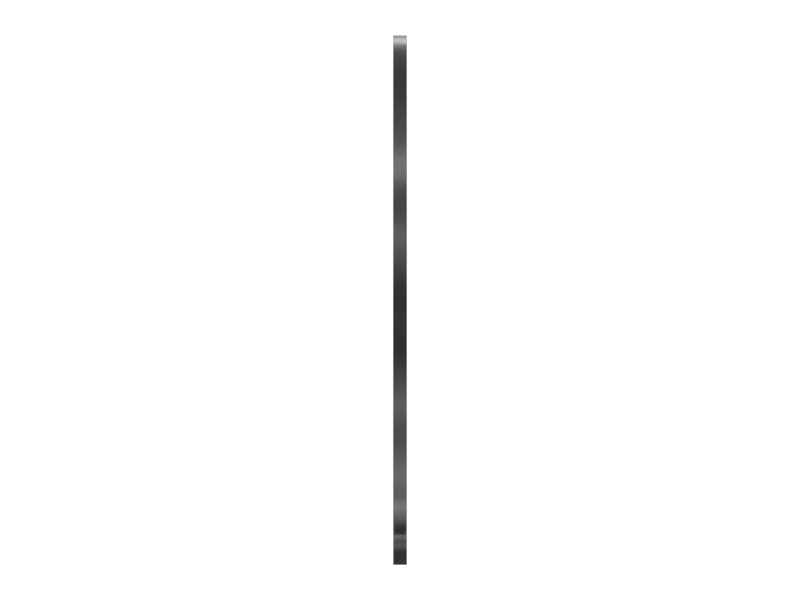

5P-3414 92.51 mm External Axial Retaining Ring
Cat® Tapered Basic External Shaft Retaining Ring
Description
Cat® retaining rings install in a machined groove in a housing/bore (internal) or on a shaft (external), providing high strength and long service life in a wide range of applications. Cat retaining rings are manufactured to precise specifications to be durable, reliable and efficient. You can count on this "Built For It" product to help you get more work done.
Features
- Retaining rings meet or even exceed ANSI, ASTM and DIN requirements
- ROHS compliant
Applications
- Assembles into a shaft or housing groove to secure parts or assemblies.
Specifications
| Material Description | Steel Retaining Ring |
|---|---|
| Thickness | 2.77 mm |
| Remarks | Free Diameter: 92.51, Radial Wall: 8.08, Lug Height: 8.69, Groove Width: 3.05, Groove Diameter: 94.84, Shaft Diameter: 100 |
| Cross Hole | Yes |
| Material | Carbon Steel |
Compatible Equipment
- Generator Sets: 3512B, C4.4
- Cold Planers: TH55-E70, PL61
- Dozers: D10, D10R, D10T2, D10N, D10T, D8L, D9R, D9L, D9N
- Excavators: 3512C, 3516E
- Off-Highway Trucks: 793, 789D, 777, 789, 785, 793D, 785D, 777D, 793F, 777E
