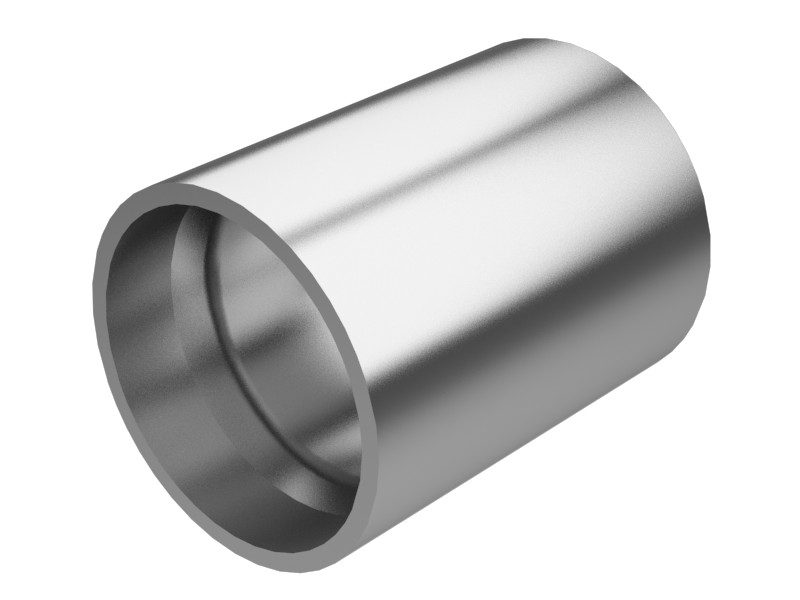

5P-3106 66.42 mm ID Hose Coupling Sleeve
Cat® 66.42 mm ID Hydraulic System Hose Coupling Sleeve
Description
The hose coupling sleeve is an integral part of the Cat proprietary reusable hose coupling design and includes slender collet-style multi-faceted fingers and a stem (tapered), a hardened steel sleeve, a precision-machined O-ring face, and a crimping stem and collet.
Features
- Reusable hose coupling sleeve
- Hardened steel
- Hose Dash Size: -24
- Hose Inside Diameter: 38.1 mm (1.5 in)
- Match Mark: +
- The sleeve is not bent or deformed, so it retains its original size and shape and can be reused.
- Hose stays compressed in the coupling, further helping to secure the coupling.
Applications
Reusable hose coupling sleeve for use with wire-reinforced hydraulic hoses. Refer to your Operation and Maintenance Manual or contact MECHSC for more information.
Specifications
| Material | Alloy Mixed: Metal |
|---|---|
| Hose Warning | Improper selection of hose and coupling combinations will void the warranty and may result in serious personal injury or death, property damage, or failure of components and machine systems. Cat® hose assembly products are designed and tested as a system to provide reliable connections that maximize hydraulic system safety and reliability. In addition, properly maintained, appropriate Caterpillar tooling is recommended to ensure hoses are crimped to technical specifications. Using Caterpillar hose with another manufacturer's couplings, or Caterpillar couplings with another manufacturer's hose, may result in unreliable, unsafe, or poorly performing hose assemblies. Caterpillar does not recommend or authorize this practice. For more information, refer to SAE J1273 Section 6.3 and ISO 17165-2 Section 6.3. |
Compatible Equipment
- Dozers: D10, D9L
- Wheel Loaders: 972G, 966F, 980H, 980G, 992C, R1700 II, R1700G, R2900G
- Asphalt Pavers: AD45
