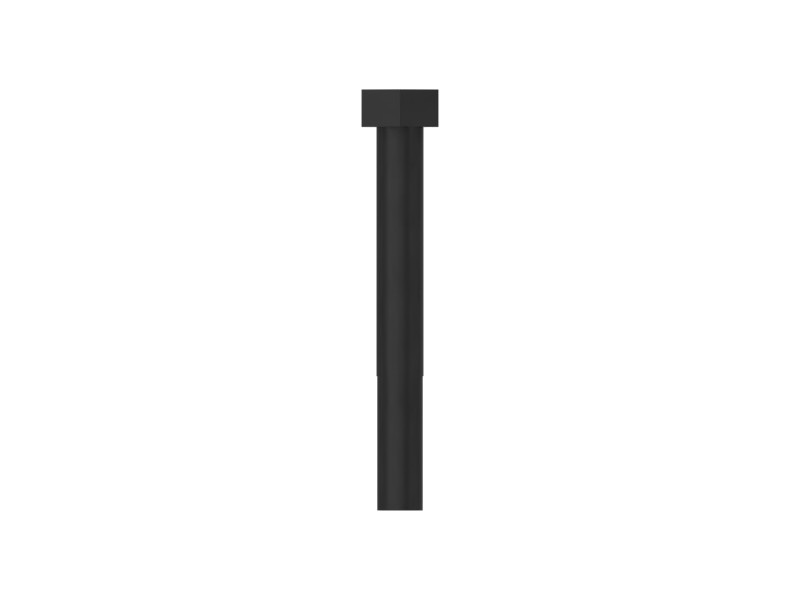

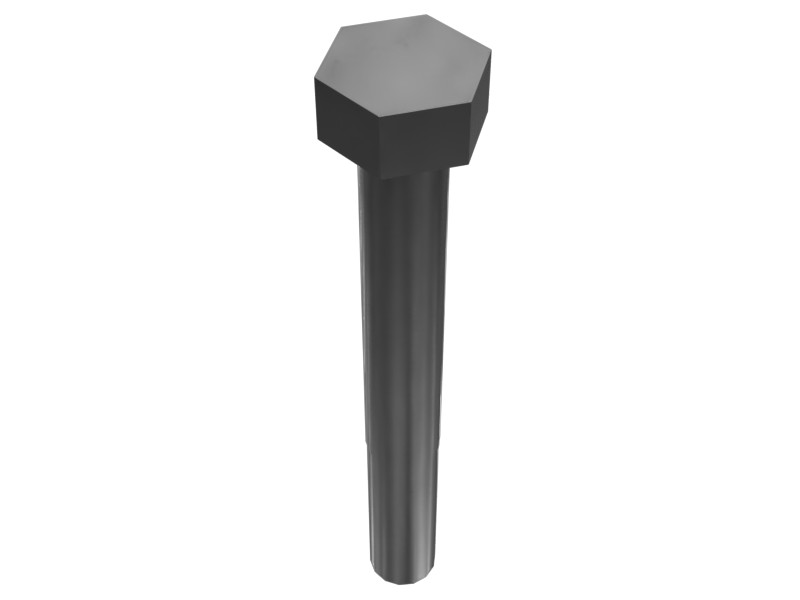

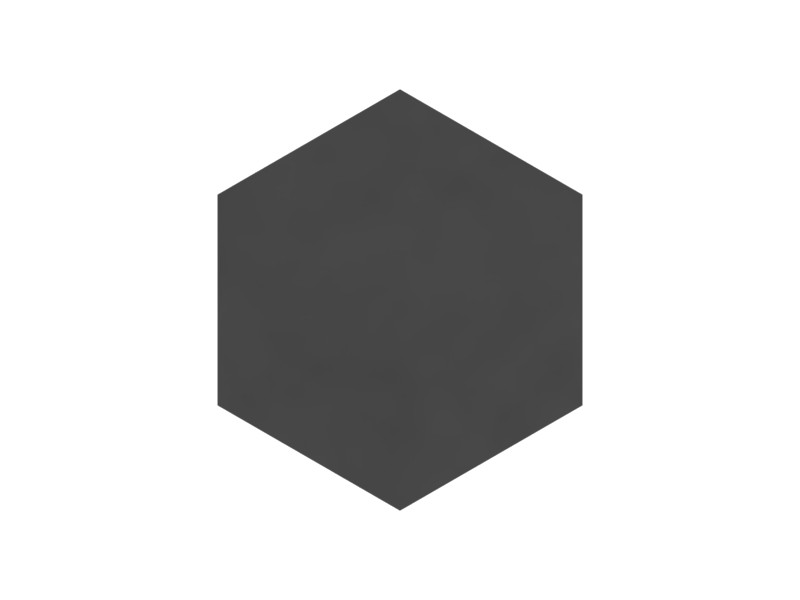

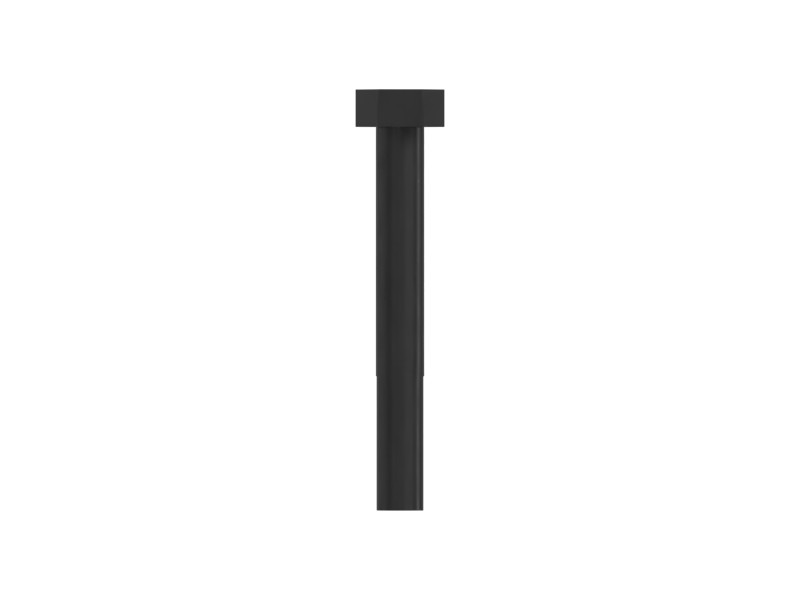

Description
Cat bolts form a matched system with mating hardened washers and nuts to produce consistent, high clamping force
Specifications
| Thread Size | 0.3125 mm (0.012 in) |
|---|---|
| Class or Grade | SAE J429 Grade 8 (150 ksi) |
| Thread Size (Diameter × Pitch) | 5/16×18 mm |
| Locking Feature | None |
| Thread Direction | RH |
| Bolt Length | 63.5 mm (2 1/2 in) |
| Bolt Type | Hex Head Bolt |
| Coating | Zinc Plated |
| Handle Length | 41.28 mm (1.63 in) |
| Material | Steel |
Compatible Equipment
- Generator Sets: 3406C, 3512E, 3512B
- Track Loaders: 824C, 990K
- Cold Planers: TH55-E70
- Compactors: CS-533C, CS-583D
- Engines: C32, C27, C18
- Excavators: 3456, 3516B, 3516E, 657G, 637G, 637E, 6040, 6030, 621G, 3512C, 3508B, 350 L
- Asphalt Pavers: AD30, AD63
- Skid Steer Loaders: 24
- Wheel Excavators: MD6310, MD6250
- Dozers: D8T, D6R, D7R II, D7G, D6R III, D9R, D6R II, D6G2 XL, D6T, D7R, D8R, D9T, D7E, D6G, D7H, D8N, D11T, D10T2, D11R, D11N, D10R, D10T, D9N, D6G2 LGP, D7G2, D10N, D8, D11
- Wheel Loaders: R2900G, R3000H, R1600H, R1700G, R1300G, R1700 II, 836, 966F, 980H, 992D, 988F, 992C
- Off-Highway Trucks: 773E, 798 AC, 777E, 777D, 794 AC, 772G, 771D, 773F, 773D, 796 AC, 775G, 773
Additional information
| Machine Model | 24, 3406C, 3456, 350 L, 3508B, 3512B, 3512C, 3512E, 3516B, 3516E, 6030, 6040, 621G, 637E, 637G, 657G, 771D, 772G, 773, 773D, 773E, 773F, 775G, 777D, 777E, 794 AC, 796 AC, 798 AC, 824C, 836, 966F, 980H, 988F, 990K, 992C, 992D, AD30, AD63, C18, C27, C32, CS-533C, CS-583D, D10N, D10R, D10T, D10T2, D11, D11N, D11R, D11T, D6G, D6G2 LGP, D6G2 XL, D6R, D6R II, D6R III, D6T, D7E, D7G, D7G2, D7H, D7R, D7R II, D8, D8N, D8R, D8T, D9N, D9R, D9T, MD6250, MD6310, R1300G, R1600H, R1700 II, R1700G, R2900G, R3000H, TH55-E70 |
|---|---|
| Equipment Type | Excavators, Wheel Excavators, Wheel Loaders, Track Loaders, Skid Steer Loaders, Dozers, Off-Highway Trucks, Compactors, Asphalt Pavers, Cold Planers, Engines, Generator Sets |
| Part Source | Genuine OEM |
