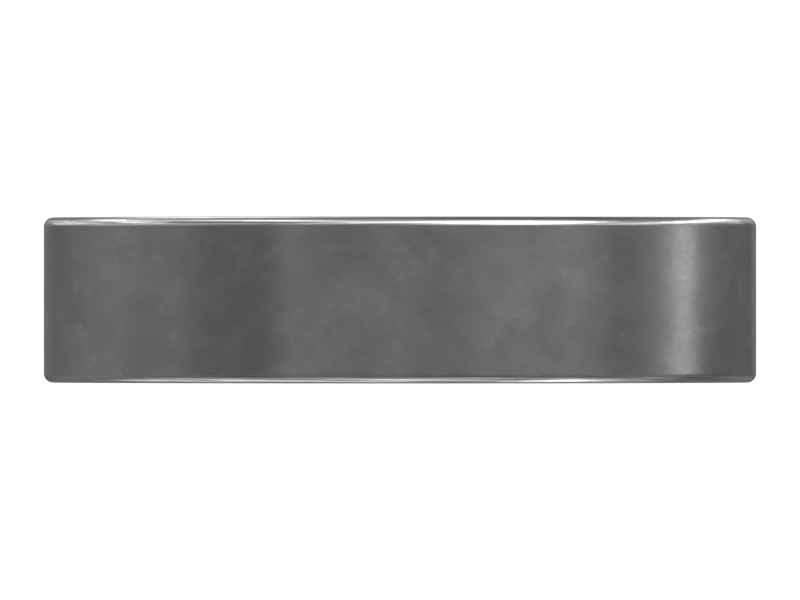

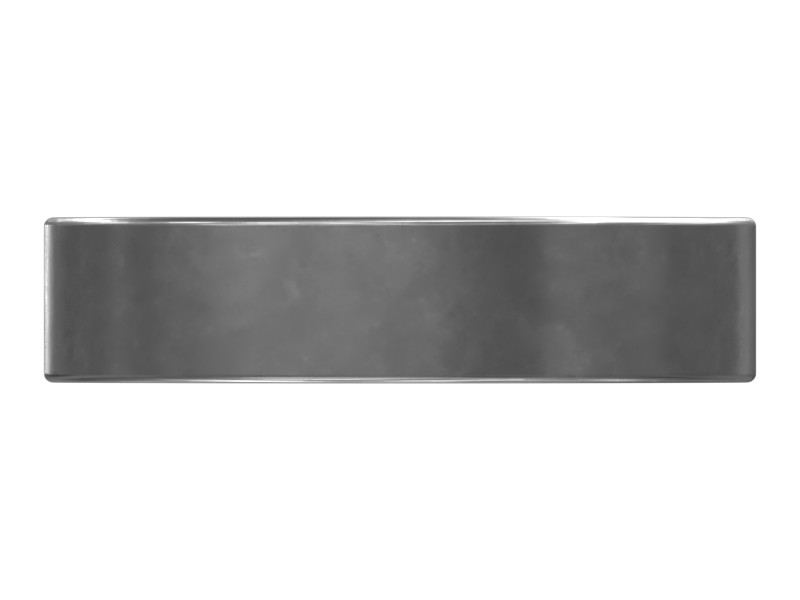

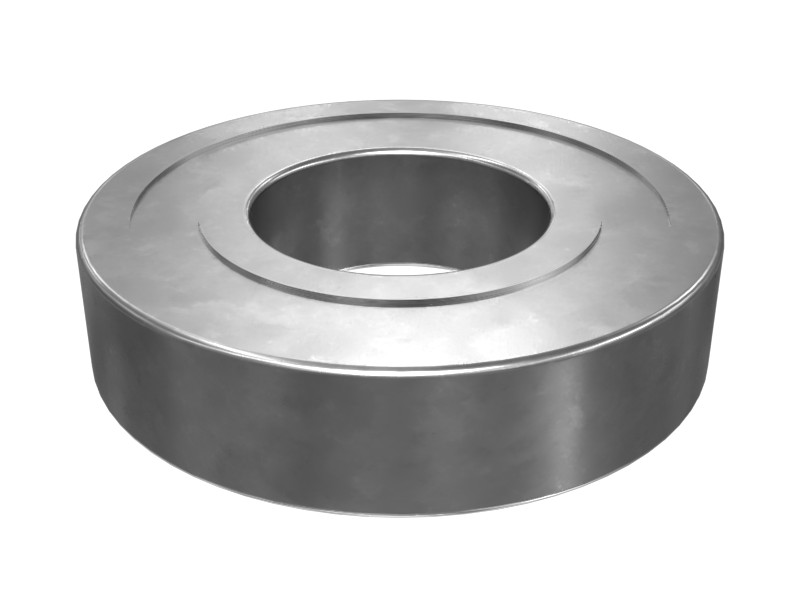

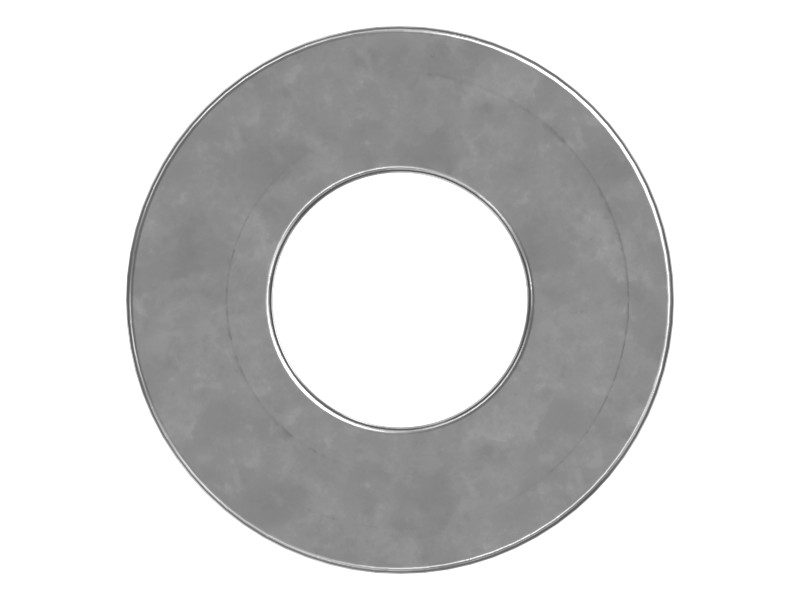

5P-2448 75 mm ID Double Shielded Ball Bearing
Cat® BC Type Size 315 Heat-Treated Double-Seal Special Ball Bearing for auxiliary raw water pumps and vane pumps
Description
Cat bearings are designed for specific applications based on load, operating speed, temperature range, size and past performance. Cat bearings are manufactured to the highest quality standards for long service life and excellent performance. Cat radial ball bearings are designed to carry loads that act primarily perpendicular to the shaft.
Features
- Single-row radial ball bearing
- Double shield
- Outside Diameter: 160.000 mm (6.299 in)
- Inside Diameter: 75.000 mm (2.9527 in)
- Height: 37.000 mm (1.4566 in)
Applications
Cat ball bearings are commonly used in transmissions, powertrains, pulley groups, motors and pumps, and anywhere performance depends on shafts rotating smoothly at high operating speeds and temperatures.
Specifications
| Material | Alloy Steel |
|---|---|
| Outside Diameter | 160 mm (6.299 in) |
| Inside Diameter | 75 mm (2.9527 in) |
| Height | 37 mm (1.4566 in) |
Compatible Equipment
- Generator Sets: 3406C
- Engines: C18
Additional information
| Machine Model | |
|---|---|
| Equipment Type | |
| Part Source | Genuine OEM |
