Description
Cat bolts form a matched system with mating hardened washers and nuts to produce consistent, high clamping force
Specifications
| Locking Feature | None |
|---|---|
| Thread Size | 0.500 mm (0.02 in) |
| Thread Direction | RH |
| Class or Grade | SAE J429 Grade 8 (150 ksi) |
| Thread Size (Diameter × Pitch) | 1/2×13 mm |
| Bolt Length | 57.15 mm (2 1/4 in) |

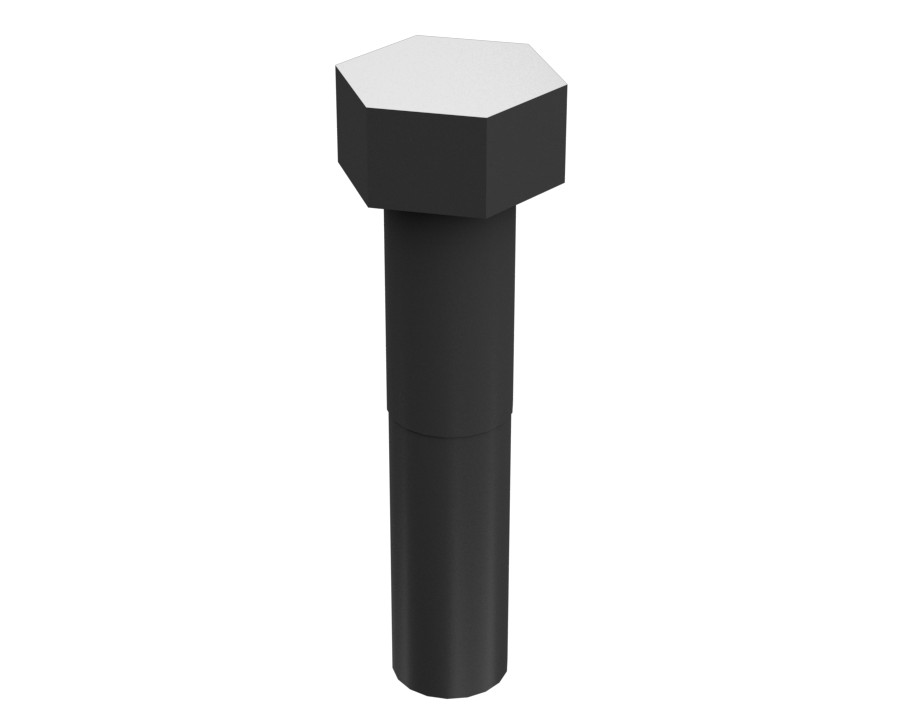

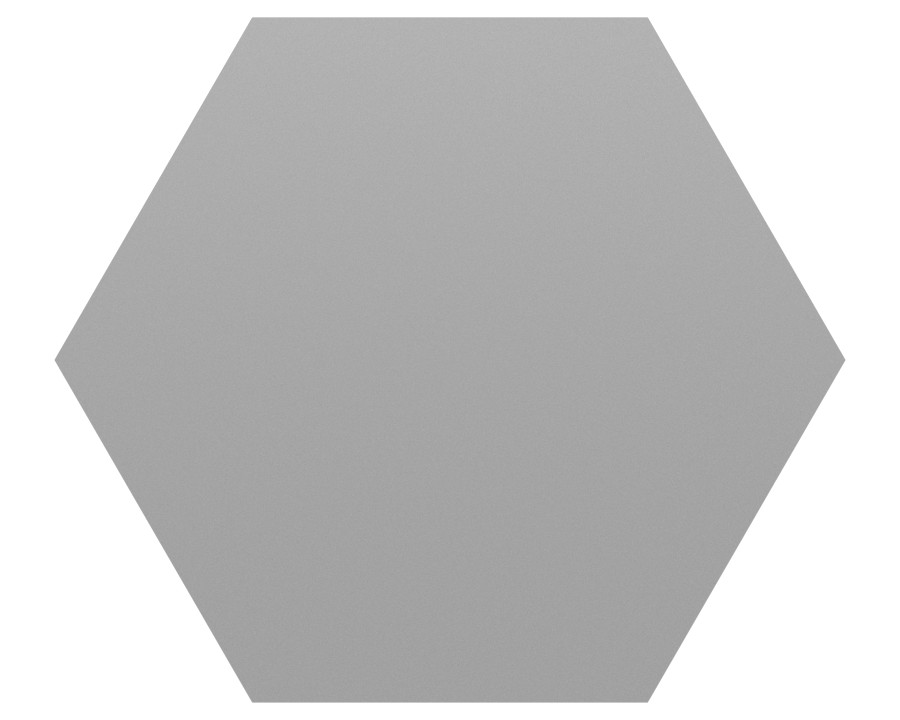

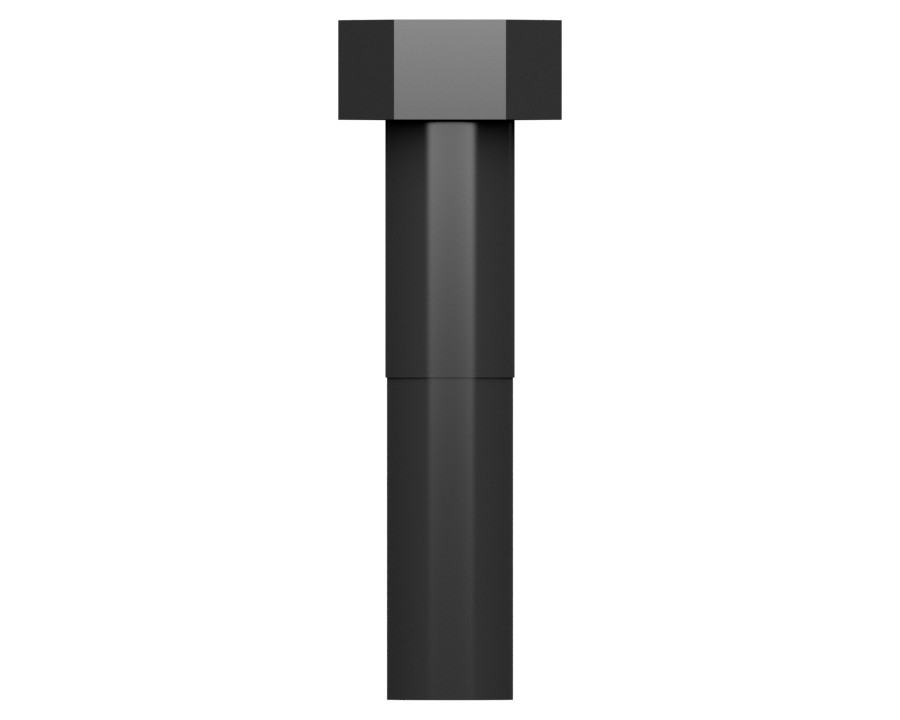

| Bolt Type | Hex Head Bolt |
| Coating | Zinc Plated |
| Handle Length | 25.4 mm (1 in) |
| Material | Steel |
Compatible Equipment
- Generator Sets: 3406C, 3406B, 3516C, G3516C, 3512B, 3512E, C9, C4.4
- Track Loaders: 824G, 826G, 963, 824C, 953, 995, 816F, 994K
- Cold Planers: TH55-E70, TH255C
- Compactors: CS-533C, C-9
- Engines: C15, C32, C7, C27, C18, C12
- Excavators: 336D2, 329D, 3126, 336D, 3456, 330D L, 3516B, 325C L, 325D, 336D2 XE, 325D L, 330D, 336D2 L, 336D L, 330C, 329D L, 324D, 325C, 330C L, 324D L, 336D2 GC, 328D LCR, 326D L, 657G, 637G, 3516E, M325D L MH, 637E, 3508B, 3512C, 340D2 L, 621G, 340D L
- Asphalt Pavers: AD45
- Skid Steer Loaders: 3126B
- Motor Graders: 160K, 12H, 140H, 140K, 12K, 140G, 120H, 16H, 14
- Wheel Excavators: MD6200, MD6250, MD6310
- Dozers: D9R, D1, D10R, D9T, D5H, D4E, D7H, D6R II, D7R II, D7R, D6R, D3K2 LGP, D6G2 XL, D8N, D8R, D9L, D6N, D9N, D7G, D8L, D6G2 LGP, D7G2, D5N, D8T, D6G, D5K2 XL, D11R, D11T, D10N, D11N
- Wheel Loaders: R1300G, 966F, 950, 836, 972G, R1700G, 980G, R1600H, R2900G, R1700 II, 938K, 992C, 988F, 992D
- Off-Highway Trucks: 775G, 785, 773E, 773F, 777D, 796 AC, 798 AC, 789D, 777, 785D, 773, 794 AC, 771D, 773D, 793, 793D, 770G, 7495, 789, 730, 725, 777E
