Description

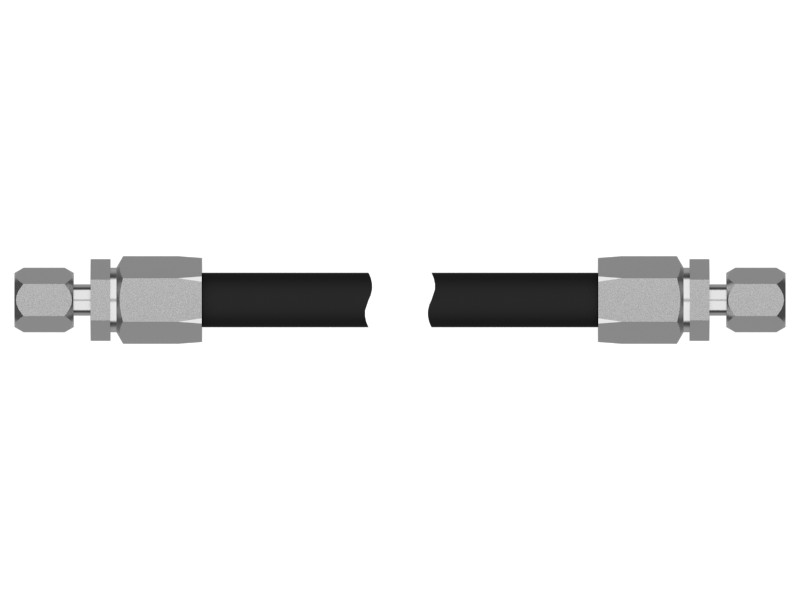

Cat hoses are designed to route liquids and gases through machine systems. These hoses are made of quality materials built to withstand the application-specific pressure, vibration resistance and flow requirements of Cat heavy-duty equipment. Cat hydraulic hoses and couplings are tested using some of the most rigorous processes in the industry. Every Cat hose and coupling combination is tested as a system to ensure a perfect fit, maximizing safety and reliability.
The hose is made of an oil-resistant synthetic rubber inner tube, two layers of textile fiber reinforcement braid and an oil- and weather-resistant synthetic rubber cover.
Specifications
| Hose Warning | Improper selection of hose and coupling combinations will void the warranty and may result in serious personal injury or death, property damage, or failure of components and machine systems. Cat® hose assembly products are designed and tested as a system to provide reliable connections that maximize hydraulic system safety and reliability. In addition, properly maintained, appropriate Caterpillar tooling is recommended to ensure hoses are crimped to technical specifications. Using Caterpillar hose with another manufacturer's couplings, or Caterpillar couplings with another manufacturer's hose, may result in unreliable, unsafe, or poorly performing hose assemblies. Caterpillar does not recommend or authorize this practice. For more information, refer to SAE J1273 Section 6.3 and ISO 17165-2 Section 6.3. |
|---|---|
| Bulk Unit of Measure | CM |
| Inside Diameter | 25.4 mm (1 in) |
| Dash Size | -16 in |
| Outside Diameter | 38 mm (1.5 in) |
| Operating Pressure | 3920 kPa (569 psi) |
| Operating Temperature | -40°C to 93°C |
| Pressurization Capability | 15750 psi |
| SAE | SAE 100R3 |
Compatible Equipment
- Motor Graders: 140 GC
- Generator Sets: C4.4
- Track Loaders: 990K, 982
- Compactors: CB16, 834K, CB-64B, CP56B, CS68B, CS56B, CS78B, CS74B, CS12, CS11, CS7, CB-564D, CB-44B, CS-563E, CP54B, CS-56, CW-34, CB-534D, CS79B, CS54B, CS-54, CB-66B, CW-16, CB13, CB10, CB15, CS-533E, CS-54B, CS64B
- Engines: C15, C32, C13
- Excavators: 120 GC, 416E, 428F, 432, 434F2, 416F2, 330 L
- Wheel Loaders: 980M, 966M, 972M, 982M, 992K, 986K, 966 GC
- Off-Highway Trucks: 789, 785, 793, 797F
Additional information
| Machine Model | 120 GC, 140 GC, 330 L, 416E, 416F2, 428F, 432, 434F2, 785, 789, 793, 797F, 834K, 966 GC, 966M, 972M, 980M, 982, 982M, 986K, 990K, 992K, C13, C15, C32, C4.4, CB-44B, CB-534D, CB-564D, CB-64B, CB-66B, CB10, CB13, CB15, CB16, CP54B, CP56B, CS-533E, CS-54, CS-54B, CS-56, CS-563E, CS11, CS12, CS54B, CS56B, CS64B, CS68B, CS7, CS74B, CS78B, CS79B, CW-16, CW-34 |
|---|---|
| Equipment Type | Excavators, Wheel Loaders, Track Loaders, Motor Graders, Off-Highway Trucks, Compactors, Engines, Generator Sets |
| Part Source | Genuine OEM |
