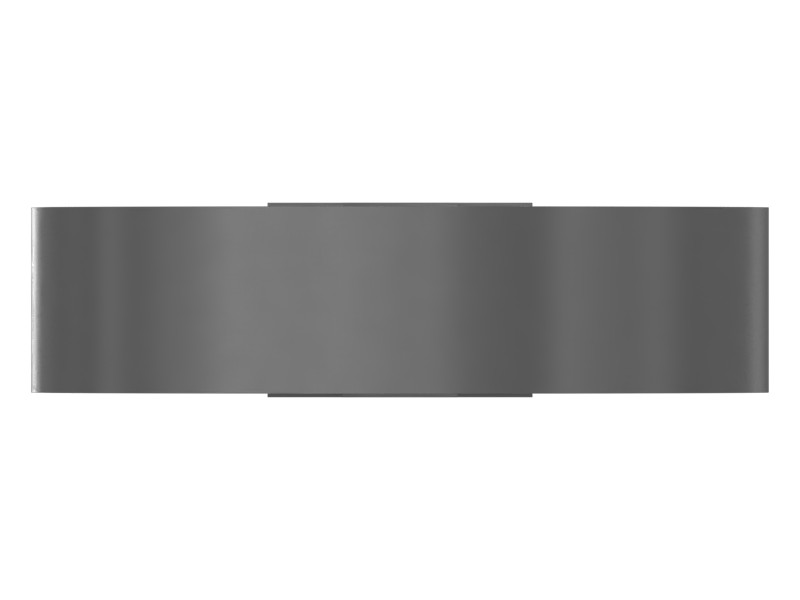

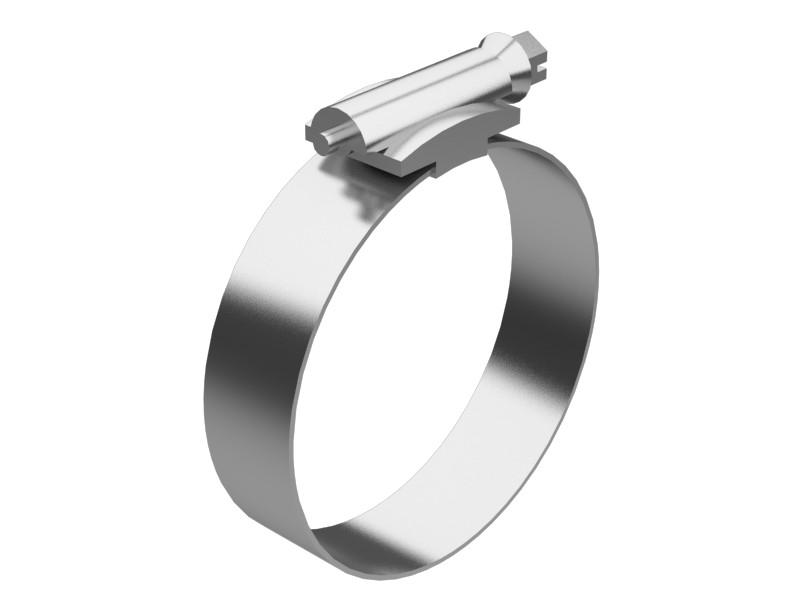

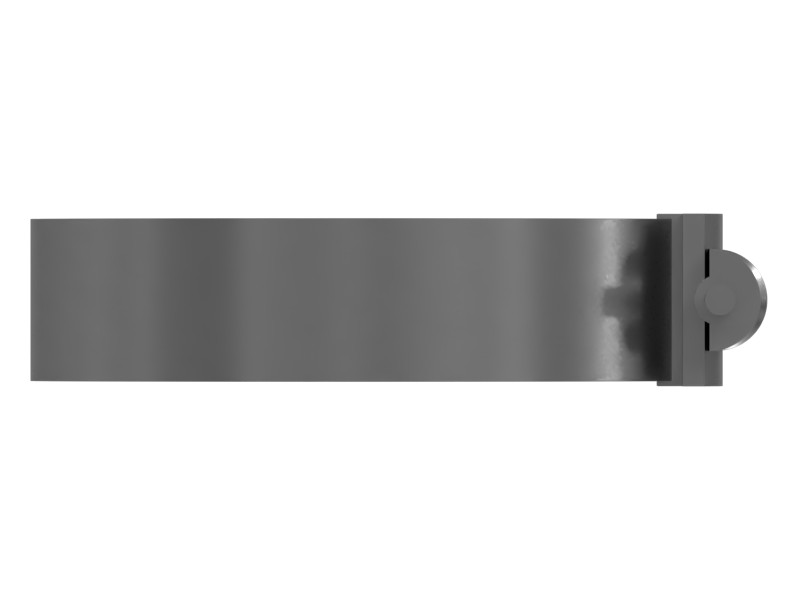

5P-0597 44.45 mm Minimum ID Clamp
Cat® 44.45 mm minimum ID stainless steel heavy-duty hose clamp meets 16.9 Nm torque requirements.
Description
Cat clamps are used to hold two parts tightly together.
Features
- Material: Steel
- Effective Diameter Range: 44.5-67 mm (1.75-2.62 in)
- Cat clamps meet or exceed ANSI, ASTM and DIN requirements
Applications
Refer to your Operation and Maintenance Manual or contact MECHSC for more information.
Specifications
| Hose Clamp Type | Standard (Worm Drive) |
|---|---|
| Working Diameter | 45 – 67 mm (1 3/4 – 2 5/8 in) |
| Width | 15.9 mm (0.62 in) |
| Maximum Effective Diameter | 67 mm (2.62 in) |
| Minimum Effective Diameter | 44.5 mm (1.75 in) |
| Material Description | Steel |
| Hex Size | 7.9 mm (0.31 in) |
| Material | Stainless Steel |
Compatible Equipment
- Generator Sets: C9, 3516C, 3406B, 3406C, 3512B, G3516, 3512E, C4.4, G3516C, C7.1
- Track Loaders: 994K, 963, 816F, 992, 834H, 953, 963D, 824G, 990K, 824C, 826G, 826H, 953D, 995, 993
- Cold Planers: PL87, PM620, PM622, PL83, TH360B
- Compactors: 815, 816, 834K, 814, 824K, CS-533C, CS12, 825K, CS68B, CS74B, CS78B, CS56B, CP56B, CS11, C-9, C-15, CS-54B
- Engines: C6.6, C32, C7, C15, C27, C175-16
- Excavators: 303.5E2 CR, 3126, 3456, 390D L, 307.5, 336D, 336D2, 303C CR, 330D L, 305E2 CR, 3516E, 330D, 330C, 320B, 330C L, 314C, 336D L, 320C, 325B L, 637E, 637K, 3512C, 6060, 3516B, 385C, 621G, 3508B, 385B, 385C FS, 328D LCR, 301.8, 336D2 L, 330 L, 336D2 GC, 637G, 340D2 L, 6015B, 390D, 365C, 385C L, 365B L, 301.6, 6020B, 365C L, 365B, 336D2 XE, 325B, 311B, 330B, 311C, 6015, 6030, 340D L, 6040
- Asphalt Pavers: AP355F, AP300F, AD45, AD63
- Skid Steer Loaders: 246C, 236, 236B3, 24, 262C, 216B3, 279C, 3126B, 226B3
- Motor Graders: 140G, 3606, 140H, 16H, 12H, 16M, 120, 14M, 140 GC, 120H, 16M3, 14
- Wheel Excavators: M315, M320, MD6310, MD6200, MD6250
- Dozers: D7R II, D8T, D7G, D6T, D9N, D5H, D7H, D6N, D6R, D9R, D4E, D5G, D6R II, D8L, D7R, D3G, D11R, D10T, D11N, D9T, D10R, D10T2, D11, D10, D11T, D8N, D6R XL, D6T LGP, D5K XL, D10N, D6R III, D4G, D9L, D7G2, D8R, D6G2 LGP, D5K LGP, D6G2 XL, D6G, D5K2 XL, D3K2 LGP, D8, D6R LGP, D9
- Mini Excavators: 307, 307B, 310, 303.5E, 306, 308, 301.5, 305.5, 308.5, 303.5C, 307C, 305E2, 303.5D, 305.5E2, 306.5
- Wheel Loaders: 836, 988K, 966F, 950, 972G, 950G, 980G, 910, 962G, 966H, 992C, 988G, 988H, 986H, R2900G, 972H, 988F, 980H, R1300G, R1700G, R1700 II, R3000H, 992D, R1600H, 990H, RM400, 834
- Off-Highway Trucks: 773, 772G, 775G, 785, 770G, 777D, 730, 797F, 740, 771D, 740B, 773F, 789, 725C2, 777, 777E, 789D, 735, 793D, 785D, 793, 798 AC, 725, 7495, 793F
