Description
Cat bolts form a matched system with mating hardened washers and nuts to produce consistent, high clamping force.
Specifications
| Hardened | Yes |
|---|---|
| Thread Direction | RH |
| Surface Finish | Phosphate and Oil Coating |
| Thread Size | 0.562 mm (0.022 in) |
| Class or Grade | Cat/SAE J995 Grade 8+ (170 ksi) |
| Hole Thread Pitch | 18 |
| Drive Chain | 22.23 mm (7/8 in) |
| Thread Size (Diameter × Pitch) | 9/16×18 mm |
| Thread | Fine Thread UNF |
| Nut Width – 3 | 7/8 in |
| Thickness | 12.3 mm (0.484 in) |
| Height | 0.48 in |

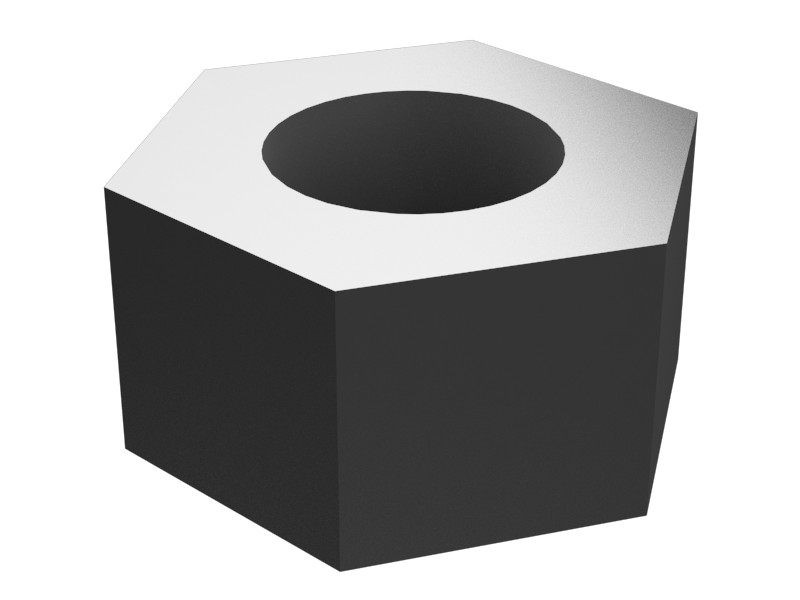

| Nut Model | Hex Nut |
| Thread Size (in – TPI) | 9/16-18 in |
| Material | STEEL |
| Material Description | Hardness More Than 20% Higher Than SAE J995 Grade 8 |
| Coating | Zinc Phosphate and Oil |
Compatible Equipment
- Motor Graders: 3606
- Dozers: D9R, D7H
- Excavators: 320D FM, 320C, 385B, 365B, 345C, M325D L MH, 320D
- Wheel Loaders: 836, 992C, 992D, 988F
- Skid Steer Loaders: 262D, 236D, 246D
Additional information
| Machine Model | 236D, 246D, 262D, 320C, 320D, 320D FM, 345C, 3606, 365B, 385B, 836, 988F, 992C, 992D, D7H, D9R, M325D L MH |
|---|---|
| Equipment Type | Excavators, Wheel Loaders, Skid Steer Loaders, Dozers, Motor Graders |
| Part Source | Genuine OEM |
