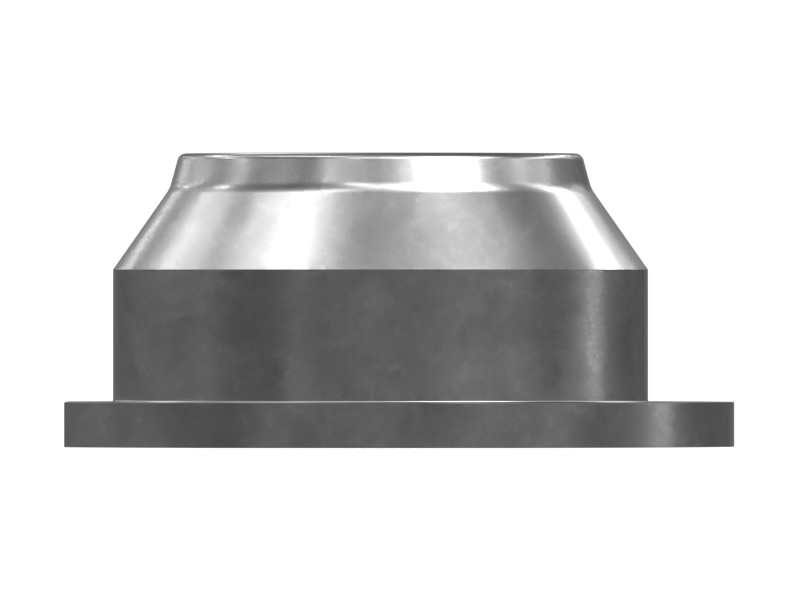

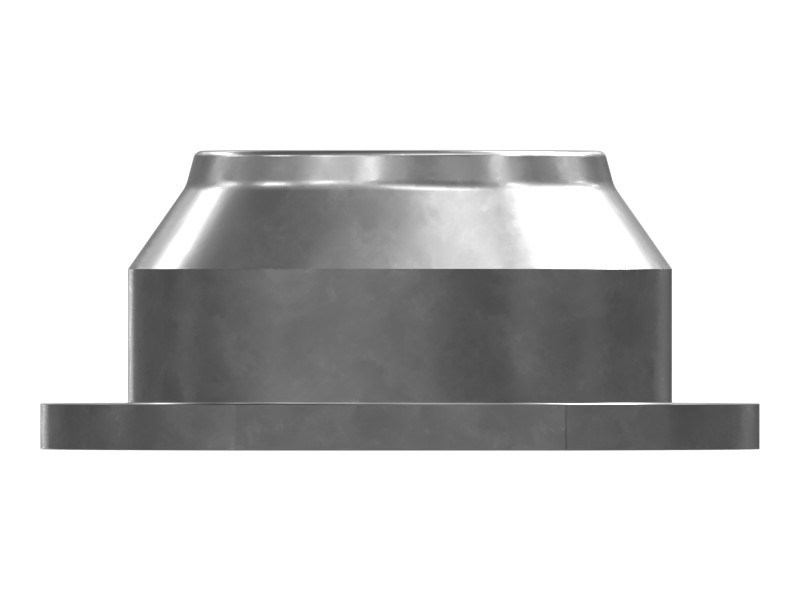

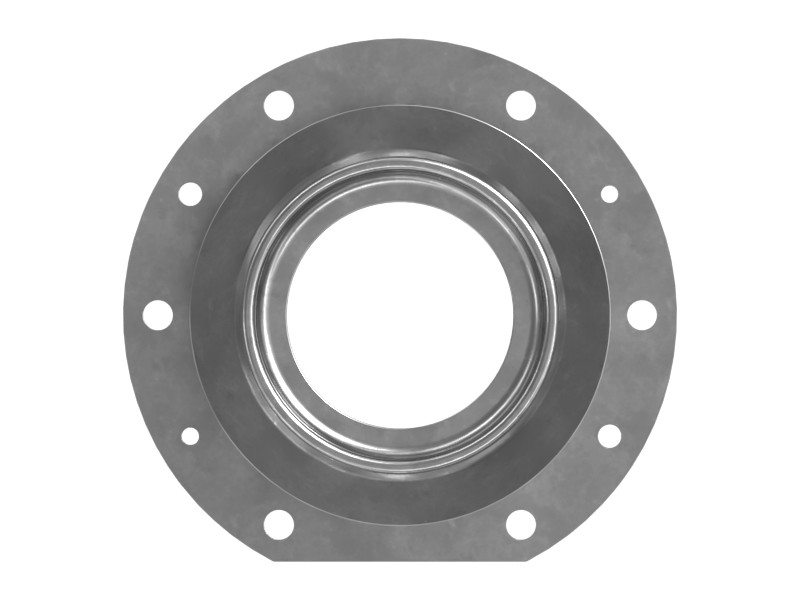

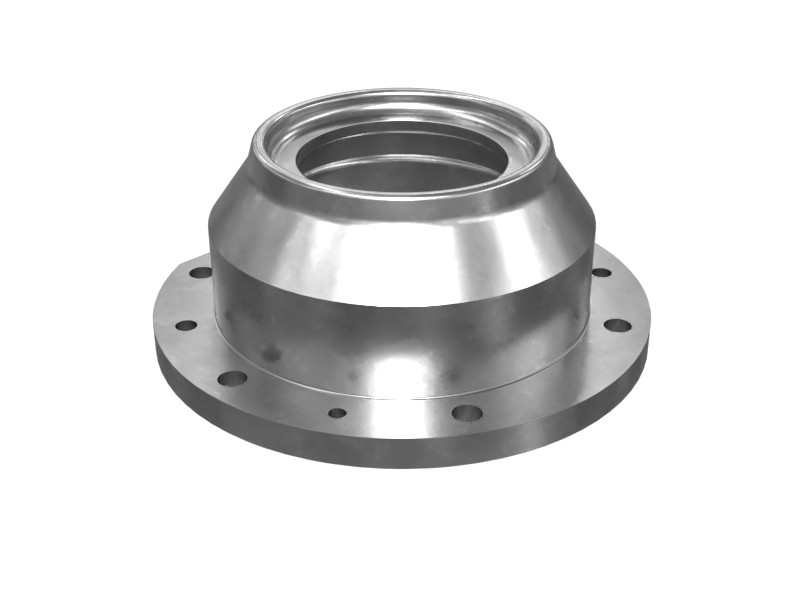

5K-4079 103.632 mm ID Bearing Retainer
Cat® powertrain drive shaft bearing retainer that keeps the bearing components of the drive shaft stable and moving in a controlled manner
Description
Bearing retainer that holds, protects, and positions the bearing on the shaft in the output drive gear housing.
Features
- Cast iron bearing retainer
- Bore Diameter: 166.62 mm (6.56 in)
- Hole Size: 13.49 mm (0.531 in)
- Use with 3/8-16 and 1/2-13 fasteners
Applications
Refer to your Operation and Maintenance Manual or contact MECHSC for more information.
Specifications
| Material | Cast Iron |
|---|---|
| Outside Diameter | 254 mm (10.00 in) |
| Inside Diameter | 104 mm (4.08 in) |
| Hole Diameter | 167 mm (6.56 in) |
| Height | 105 mm (4.14 in) |
Compatible Equipment
- Track Loaders: 824C
- Wheel Loaders: R3000H, R2900G, 836, 980, 988F
- Asphalt Pavers: AD45, AD63
Additional information
| Machine Model | |
|---|---|
| Equipment Type | |
| Part Source | Genuine OEM |
