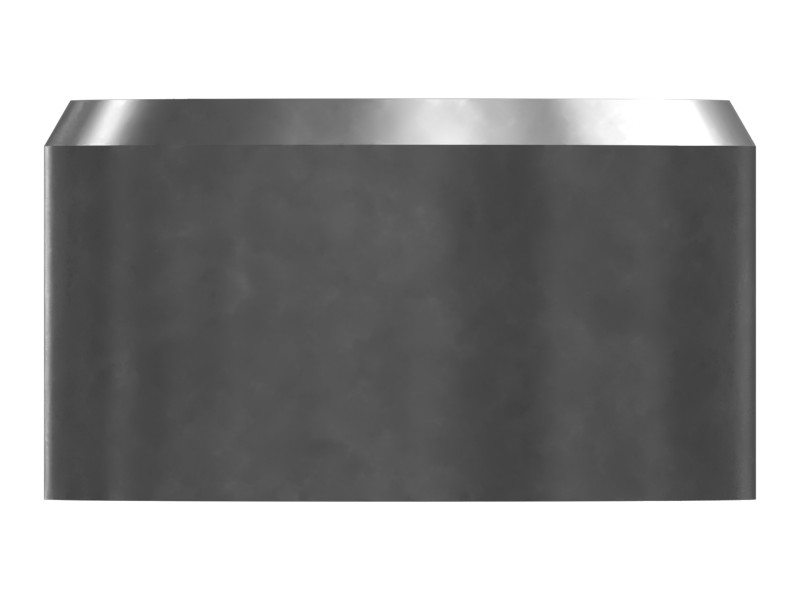

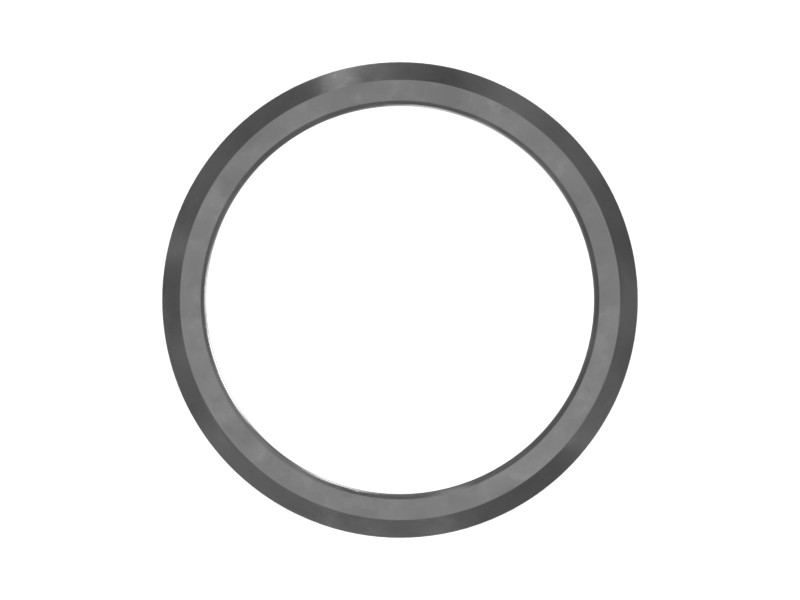

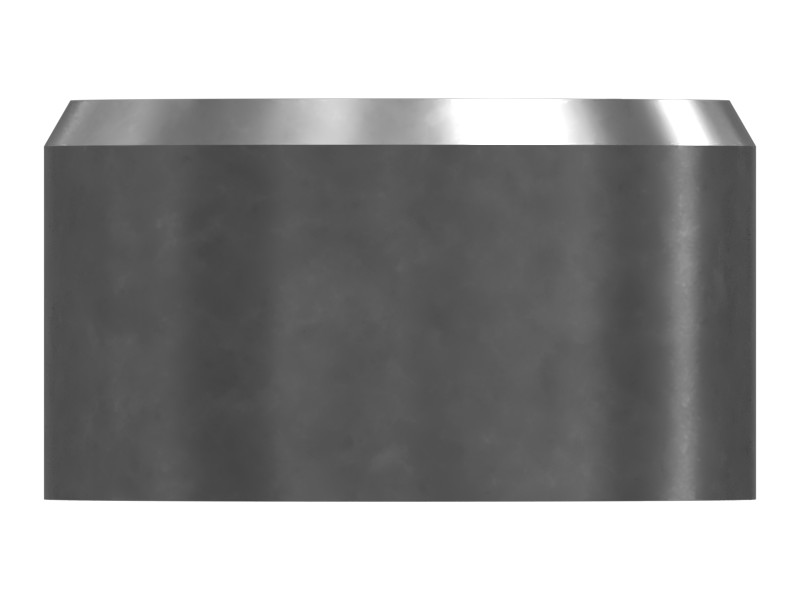

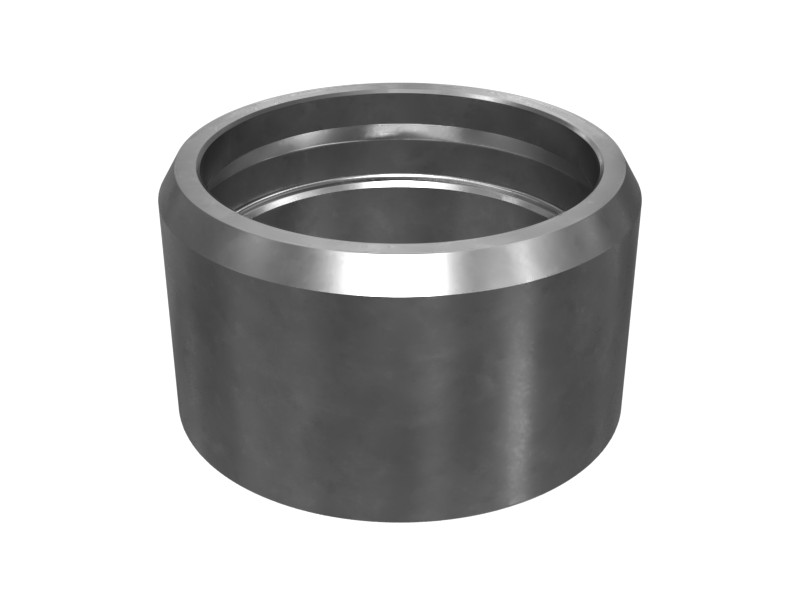

5K-3491 60.83 mm Thick Articulation Hitch Shim
Cat® 108.41 mm OD articulation hitch spacer enables the required articulation.
Description
Spacers are commonly used to provide additional stretch length in a fastener, which reduces preload loss or narrows the cyclic stress range of the machine workload. They are used to establish and maintain the functional relationship of related parts in a machine system.
Specifications
| Ferrule Outside Diameter | 108.41 mm (4.268 in) |
|---|---|
| Ferrule Inside Diameter | 88.52 mm (3.485 in) |
| Overall Length | 60.83 mm (2.395 in) |
| Unique Features | No |
| Cross Hole | No |
| Center Hole Shape | Non-Threaded |
| Material Description | Steel |
| Inside Diameter | 89 mm (3.50 in) |
| Length | 61 mm (2.39 in) |
| Outside Diameter | 108 mm (4.25 in) |
| Type | Center Hole Slot |
Compatible Equipment
- Motor Graders: 16H, 16M
- Track Loaders: 824C, 826G, 826H, 824G, 982
- Wheel Loaders: 980M, 982M
- Asphalt Pavers: AD30
Additional information
| Machine Model | |
|---|---|
| Equipment Type | |
| Part Source | Genuine OEM |
