Description

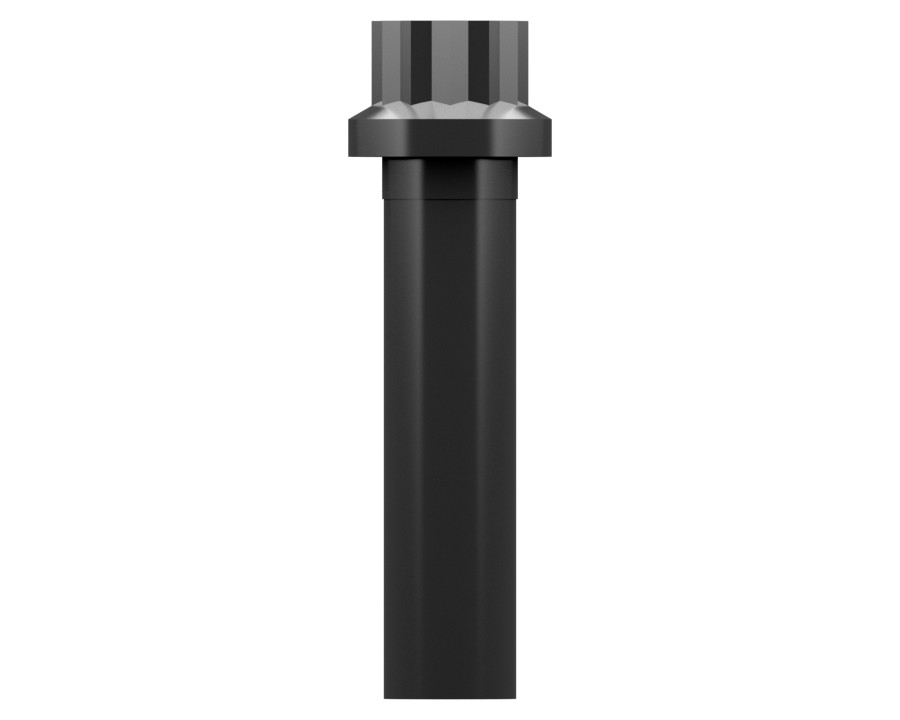

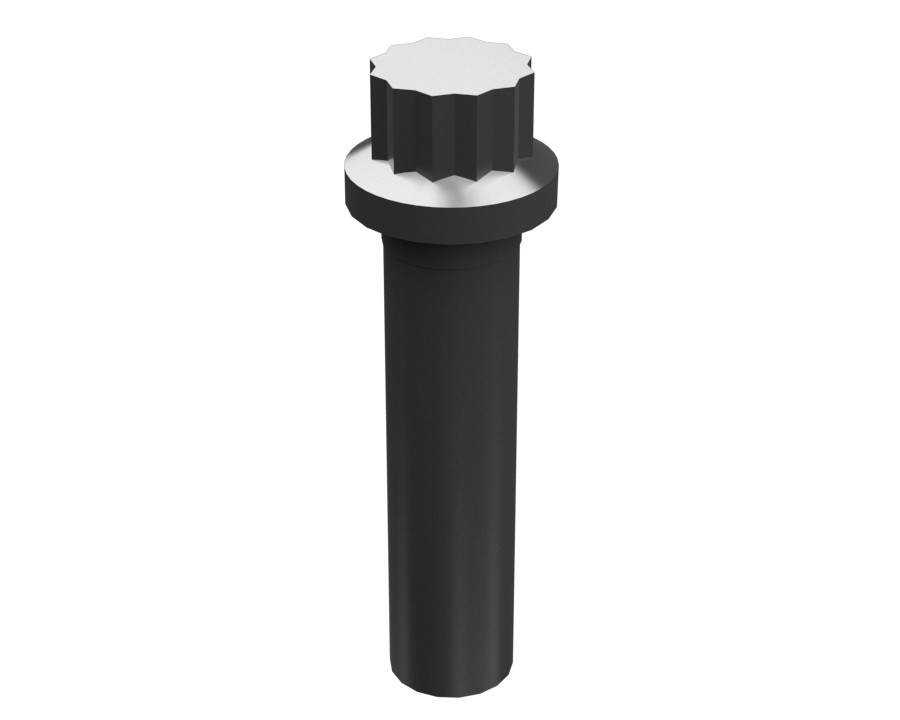

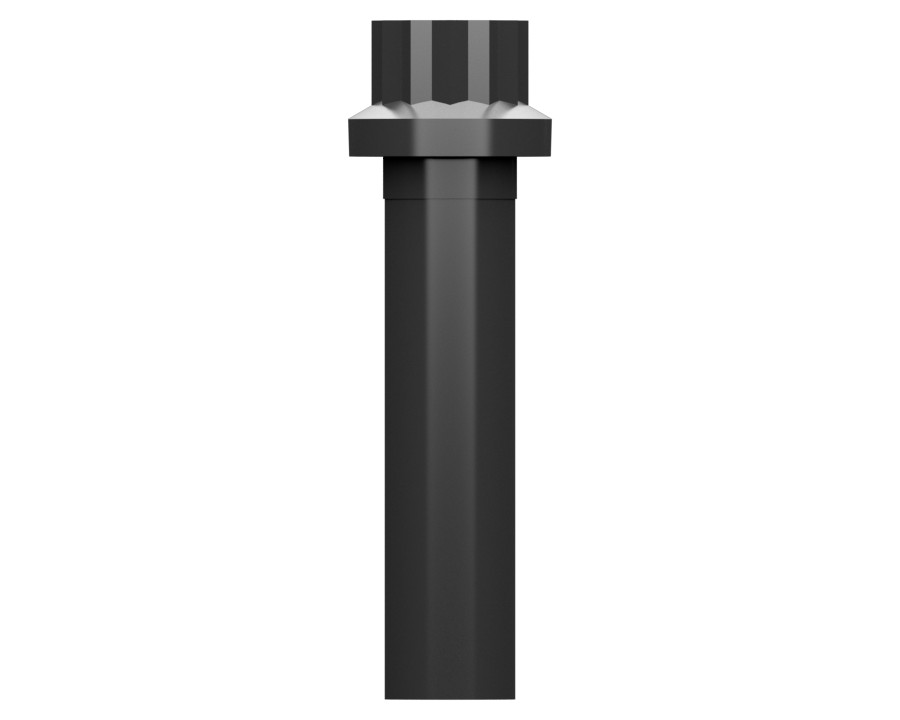

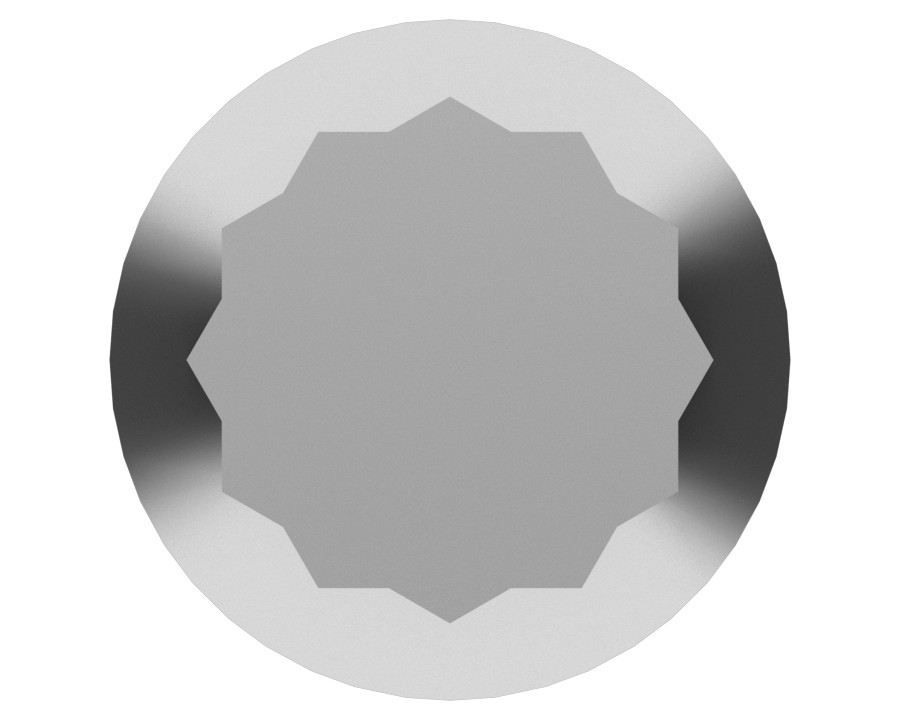

Cat bolts form a matched system with mating hardened washers and nuts to produce consistent, high clamping force
Specifications
| Locking Feature | None |
|---|---|
| Thread Size (Diameter × Pitch) | 1/2×13 mm |
| Class or Grade | Cat/ASTM F2882 (170 ksi) |
| Thread Size | 0.500 mm (0.02 in) |
| Thread Direction | RH |
| Type | 12-Point Head Bolt |
| Material | Alloy Zinc |
| Bolt Length | 50.8 mm (2 in) |
| Bolt Type | 12-Point Head Bolt |
| Coating | Plain With Corrosion Inhibitor or Black Oxide With Corrosion Inhibitor |
| Handle Length | 3.96875 mm (0.16 in) |
| Flange Diameter | 0.75 in |
Compatible Equipment
- Generator Sets: 3406C, 3406B, G3516, G3516C, 3512B, 3516C
- Track Loaders: 953, 994K, 995, 824C
- Cold Planers: PL83, PM622, PM620, PM-200, PL87
- Engines: C15, C18
- Excavators: 374D L, 390F L, 390D L, 3456, 374, 637K, 657G, 637E, 395, 3508B, 365C, 374F L, 385B, 385C, 621G, 390D, 3516B, 385C FS, 385C L, 390F, 6018, 6015 FS, 637G, 365C L, 6015, 3516E
- Asphalt Pavers: AD63, AD45
- Wheel Excavators: MD6200
- Compactors: C-15
- Dozers: D8, D9, D10R, D10N, D10T2, D11N, D10T, D7R II, D8R, D9N, D7H, D9R, D7R, D8T, D6R, D5H, D8L, D9T, D8N, D9L
- Wheel Loaders: 836, R3000H, R2900G, RM500B, 992C, 992D, 988F, R1300G
- Off-Highway Trucks: 740B, 789D, 772G, 775G, 773D, 745, 770G, 745C, 740, 740 GC, 771D, 735, 773E, 773F, 773, 793D
Additional information
| Machine Model | 3406B, 3406C, 3456, 3508B, 3512B, 3516B, 3516C, 3516E, 365C, 365C L, 374, 374D L, 374F L, 385B, 385C, 385C FS, 385C L, 390D, 390D L, 390F, 390F L, 395, 6015, 6015 FS, 6018, 621G, 637E, 637G, 637K, 657G, 735, 740, 740 GC, 740B, 745, 745C, 770G, 771D, 772G, 773, 773D, 773E, 773F, 775G, 789D, 793D, 824C, 836, 953, 988F, 992C, 992D, 994K, 995, AD45, AD63, C-15, C15, C18, D10N, D10R, D10T, D10T2, D11N, D5H, D6R, D7H, D7R, D7R II, D8, D8L, D8N, D8R, D8T, D9, D9L, D9N, D9R, D9T, G3516, G3516C, MD6200, PL83, PL87, PM-200, PM620, PM622, R1300G, R2900G, R3000H, RM500B |
|---|---|
| Equipment Type | Excavators, Wheel Excavators, Wheel Loaders, Track Loaders, Dozers, Off-Highway Trucks, Compactors, Asphalt Pavers, Cold Planers, Engines, Generator Sets |
| Part Source | Genuine OEM |
