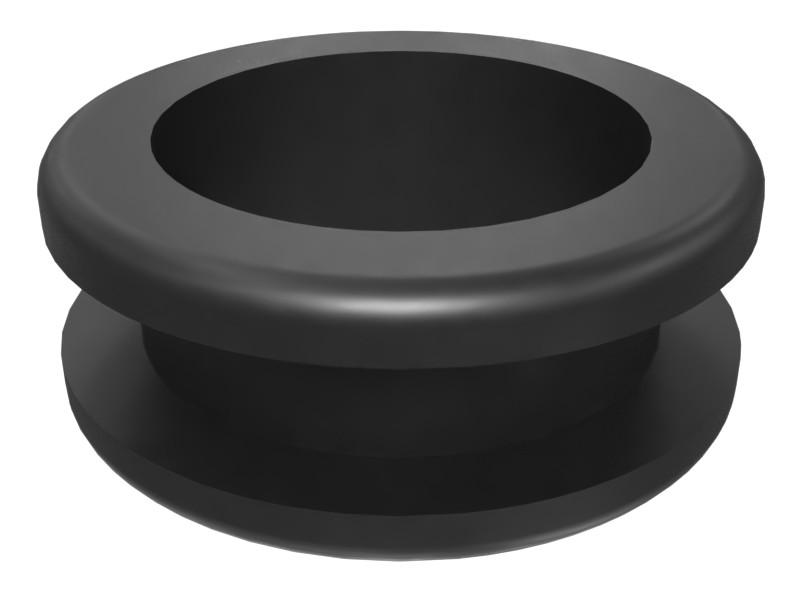

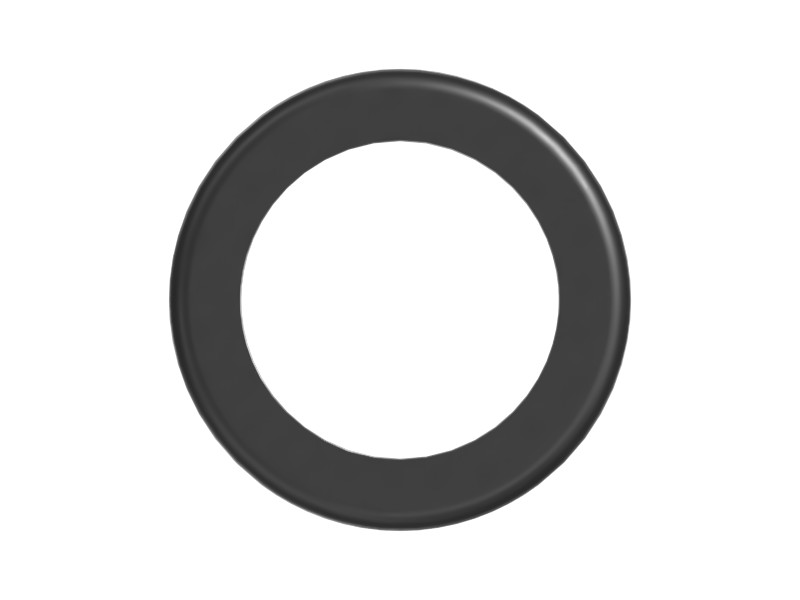

5I-3876 Double Flange Symmetrical Grommet
Cat® Double Flange Symmetrical Unslotted Grommet, ID: 45 mm
Description
The grommet (for example part number 5I-3876) is made of high-quality rubber suited to the environment in which the equipment operates and is used to prevent wires and cables from contacting metal, preventing damage to these components from vibration, rubbing against the surrounding structure, and impact and noise. The grommet has a rubber flange placed evenly on both sides of the material to hold the rubber in place.
The grommet is made of premium heat-resistant, weather-resistant rubber and is durable and tear-resistant. The grommet is not prone to drying out, cracking, or loosening. It has good insulating properties and is simple and quick to install.
Features
- Double-flange symmetrical grommet
- Style: Ungrooved
- Rubber
- Inside Diameter: 45 mm (1.77 in)
- Outside Diameter: 65 mm (2.56 in) (Flange)
- Groove Diameter: 50 mm (1.97 in)
- Groove Width: 13 mm (0.51 in)
- Thickness: 25 mm (0.98 in)
- Flange Thickness: 6 mm (0.24 in) (2X)
Applications
Refer to your Operation and Maintenance Manual or contact MECHSC for more information.
Specifications
| Flange Thickness | 6 (2X) mm (0.24 (2X) in) |
|---|---|
| Hardness | 60 Shore A |
| Inside Diameter | 45 mm (1.77 in) |
| Material | Rubber |
| Outside Diameter | 65 mm (2.56 in) |
| Style | Without Slot |
| Thickness | 25 mm (0.98 in) |
| Type | Double Flange Symmetrical Grommet |
Compatible Equipment
- Motor Graders: 349 GC
- Engines: C175-16
- Dozers: D11, D11T, D10T2, D8N, D9T, D9, D10
- Mini Excavators: 308E2, 307E2, 305.5E, 305.5E2, 307
- Excavators: 349F L, 352, 311B, 385C L, 349E L, 385C FS, 349E, 349, 390D, 385C, 349E L VG, 385B, 352F, 345D L, 350, 355, 3516E, 350MHPU, 307E, 390D L, 308D, 308E, 306E2
- Wheel Loaders: 966H, 972H
Additional information
| Machine Model | 305.5E, 305.5E2, 306E2, 307, 307E, 307E2, 308D, 308E, 308E2, 311B, 345D L, 349, 349 GC, 349E, 349E L, 349E L VG, 349F L, 350, 350MHPU, 3516E, 352, 352F, 355, 385B, 385C, 385C FS, 385C L, 390D, 390D L, 966H, 972H, C175-16, D10, D10T2, D11, D11T, D8N, D9, D9T |
|---|---|
| Equipment Type | Excavators, Mini Excavators, Wheel Loaders, Dozers, Motor Graders, Engines |
| Part Source | Genuine OEM |
