Description

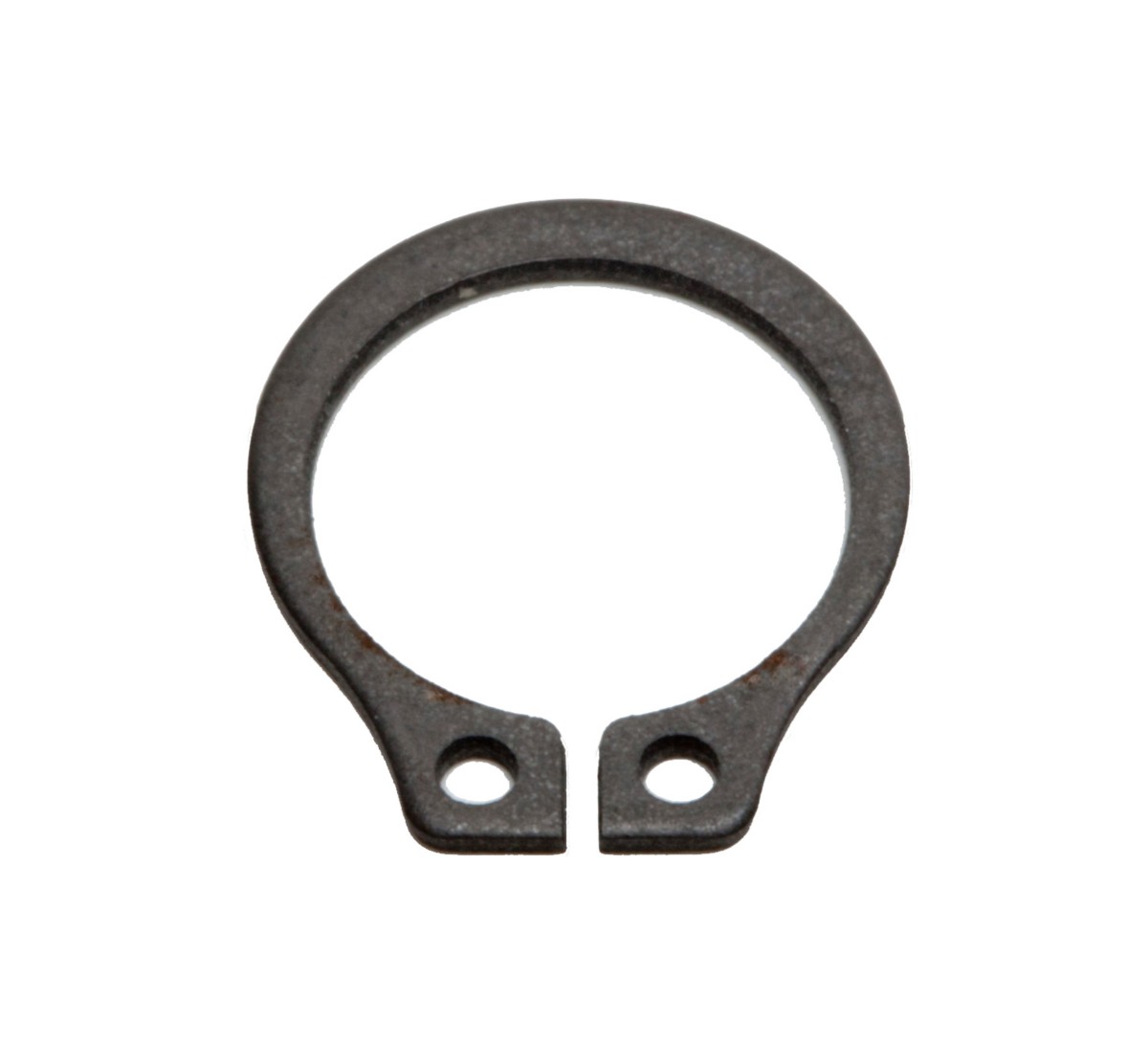

The front fixed axle housing retaining ring is a special type of retaining ring used in automotive front axle groups to secure and retain the front fixed axle housing in place. It is an external ring that fits into a slot or groove on the outer surface of the axle housing, providing retention and preventing axial movement of the axle housing during vehicle operation.
Features
- Ensures a tight, reliable fit.
- Able to withstand maximum forces and loads.
- Non-corrosive.
Applications
The front axle housing retaining ring is an important component of the front axle group, ensuring correct positioning and securing of the axle housing. The retaining ring ensures reliable and safe operation of the vehicle's front axle.
Specifications
| Material | Carbon Steel |
|---|---|
| Snap Ring Type | External |
| Free Diameter – A | 4.11 in |
| Thickness – B | 0.109 in |
| Material Description | Steel Retaining Ring |
| Remarks | Free Diameter: 104.29, Radial Wall: 8.08, Lug Height: 9, Groove Width: 3.05, Groove Diameter: 106.43, Shaft Diameter: 111.1 |
| Cross Hole | Yes |
| Thickness | 2.77 mm |
| Hole Diameter | 4.38 in |
Compatible Equipment
- Generator Sets: G3516
- Track Loaders: 972, 816F
- Compactors: 815, 816, 814
- Dozers: D6T, D7, D8, D8T
- Wheel Loaders: 966 GC, 972M, 966M
Additional information
| Machine Model | 814, 815, 816, 816F, 966 GC, 966M, 972, 972M, D6T, D7, D8, D8T, G3516 |
|---|---|
| Equipment Type | Wheel Loaders, Track Loaders, Dozers, Compactors, Generator Sets |
| Part Source | Genuine OEM |
