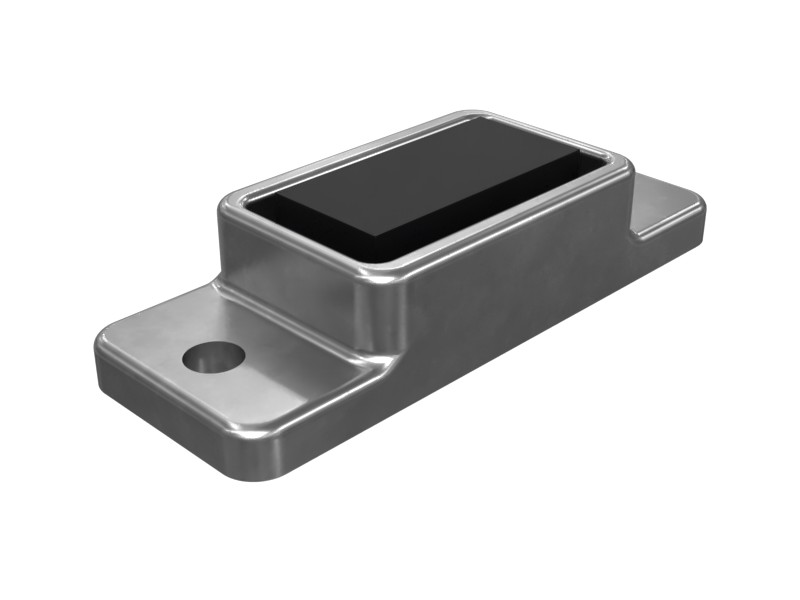

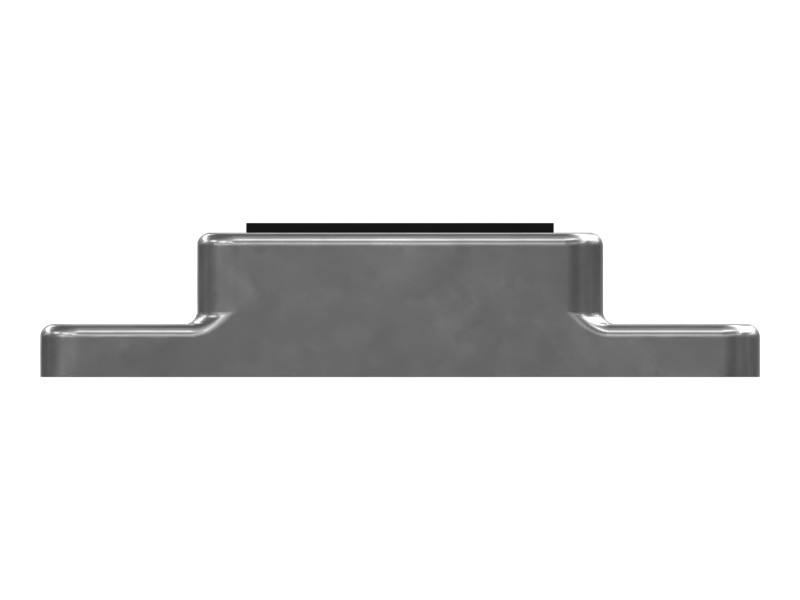

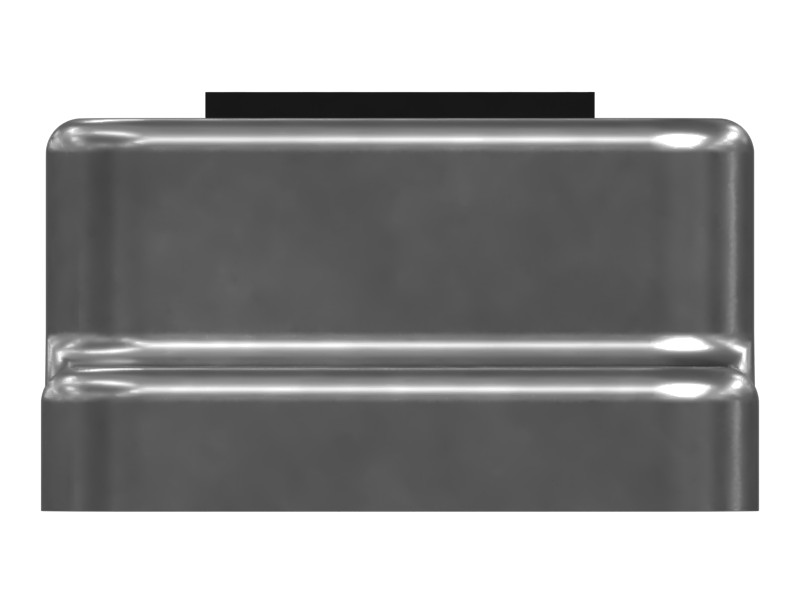

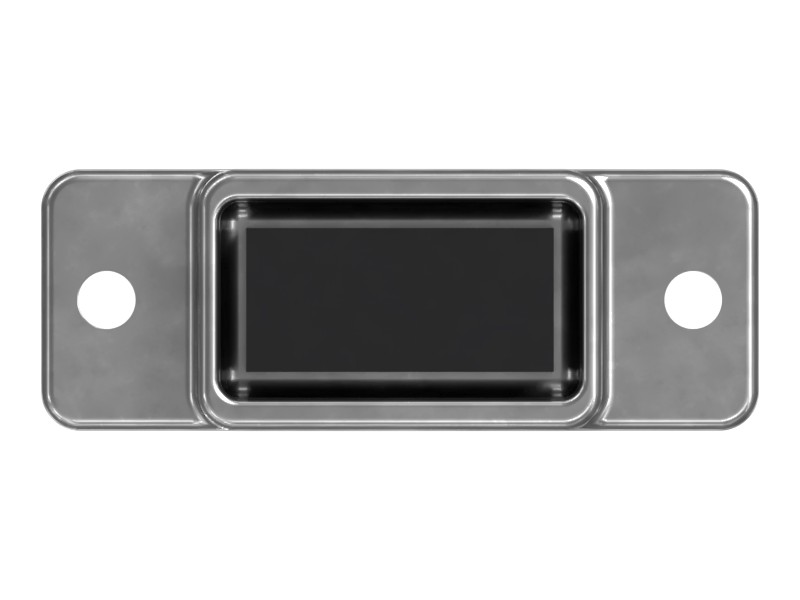

5G-7820 Positioner Magnet
Cat® Positioner Magnet for Lift Limit Control, Providing Precise Lift Limit Control for Efficient Handling
Description
Magnet group used in magnetic proximity switch circuits. Cat proximity sensors are used to detect the presence of an object.
Features
- Group consists of a housing and a magnet
- Housing material: cast iron
- Mounts with M8 fasteners.
Applications
Refer to your Operation and Maintenance Manual or contact MECHSC for more information.
Specifications
| Material | Sealants / Adhesives Adhesive |
|---|---|
| Width | 40 mm (1.575 in) |
| Length | 110 mm (4.33 in) |
Compatible Equipment
- Wheel Excavators: IT14G
- Dozers: D11, D10T2, D11T, D9, D10, D10T, D6R
- Excavators: 637K, 621H, 621K
- Wheel Loaders: 950G, 928G, 962G, 924GZ, 972G, 924HZ, 928HZ, R1600H, R1300G, R1700G, R1700 II, R2900G, R3000H
- Off-Highway Trucks: 777, 773E, 775G, 772G, 785, 730, 770G, 785D, 725, 740, 771D, 735, 797F, 793D, 777E, 794 AC, 789, 793, 773, 773D, 793F, 789D, 740B, 777D, 725C2
- Asphalt Pavers: AD45
Additional information
| Machine Model | 621H, 621K, 637K, 725, 725C2, 730, 735, 740, 740B, 770G, 771D, 772G, 773, 773D, 773E, 775G, 777, 777D, 777E, 785, 785D, 789, 789D, 793, 793D, 793F, 794 AC, 797F, 924GZ, 924HZ, 928G, 928HZ, 950G, 962G, 972G, AD45, D10, D10T, D10T2, D11, D11T, D6R, D9, IT14G, R1300G, R1600H, R1700 II, R1700G, R2900G, R3000H |
|---|---|
| Equipment Type | Excavators, Wheel Excavators, Wheel Loaders, Dozers, Off-Highway Trucks, Asphalt Pavers |
| Part Source | Genuine OEM |
