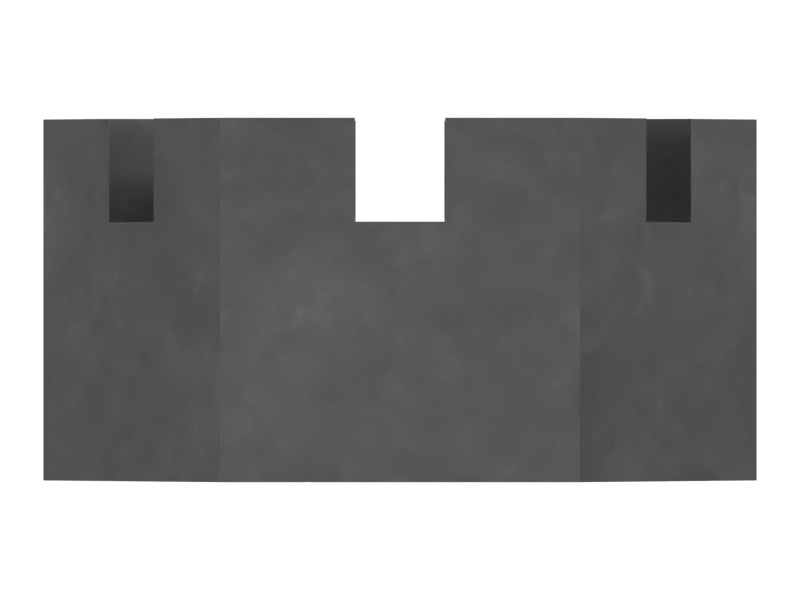

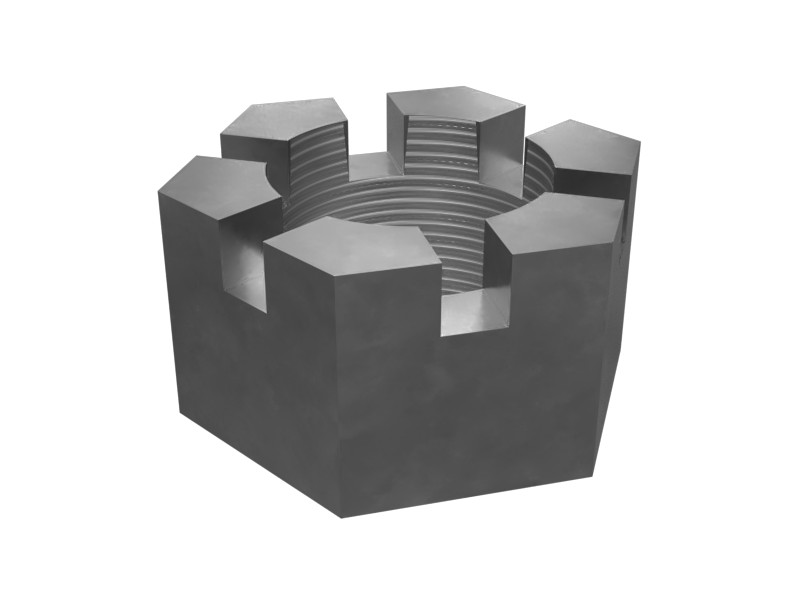

5F-3715 2-12-3B Thread Hex Slotted Nut
Cat® Hex Slotted Nut Is Used to Secure and Adjust the Position of the Pedestal Boom in Equipment
Wholesale only · Full payment before shipment · Send your machine nameplate to confirm fitment
Description
Cat® fastener parts are designed for specific applications based on size, strength, clamp load and past performance, information other manufacturers do not have. They are carefully selected to last until machine rebuild or end of life. Non-Cat hardware and fasteners may appear to fit your machine, but no one else knows your equipment the way we do.
Features
- Cat fasteners are manufactured to precise specifications for durability, reliability and high efficiency
- Strength and Quality – Fasteners meet or exceed ISO, ASTM, ASME and SAE requirements.
- Cat bolts, nuts and washers are specifically designed to work together as a system to maximize clamping force.
- Coating meets the special requirements of different applications (RoHS compliant).
Applications
Cat bolts form a high-performance system with mating hardened washers and nuts to produce consistent, high clamping force. You can trust Cat fasteners to help you build, maintain or rebuild in most machine and shop applications worldwide.
Specifications
| Thread Size | 2.000 mm (2-12 in) |
|---|---|
| Drive Chain | 76.2 mm (3 in) |
| Class or Grade | SAE J995 Grade 5 (120 ksi) |
| Thread Size (Diameter × Pitch) | 2.000×12 mm |
| Thread Direction | RH |
| Thickness | 44.45 mm (1.75 in) |
| Coating | Zinc Plated |
| Nut Model | Slotted Hex |
| Locking Feature | Secondary Fastener |
| Thread Size (in – TPI) | 2/1-12 in |
| Hex Size | 3 in |
| Length | 1-3/4 in |
Compatible Equipment
- Motor Graders: 14M, 16M, 16H, 16M3
- Excavators: 325B L
Additional information
| Machine Model | |
|---|---|
| Equipment Type | |
| Part Source | Genuine OEM |
