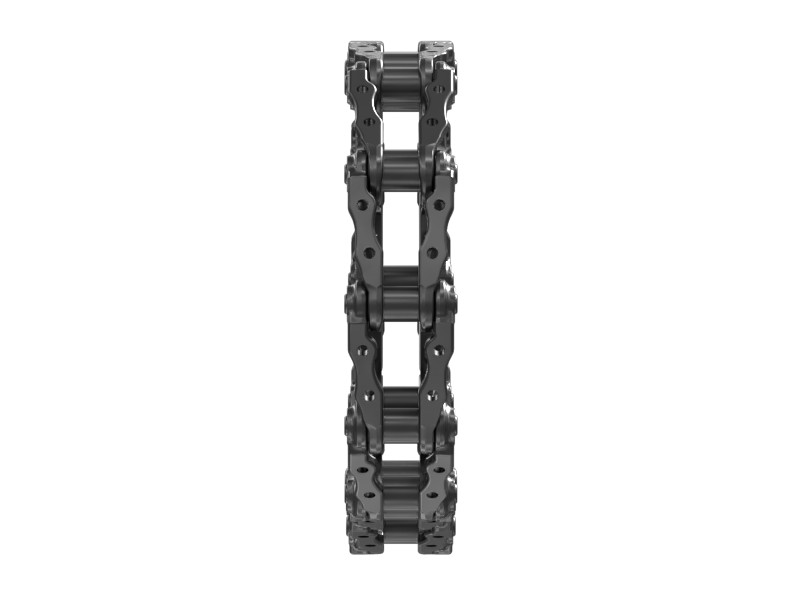

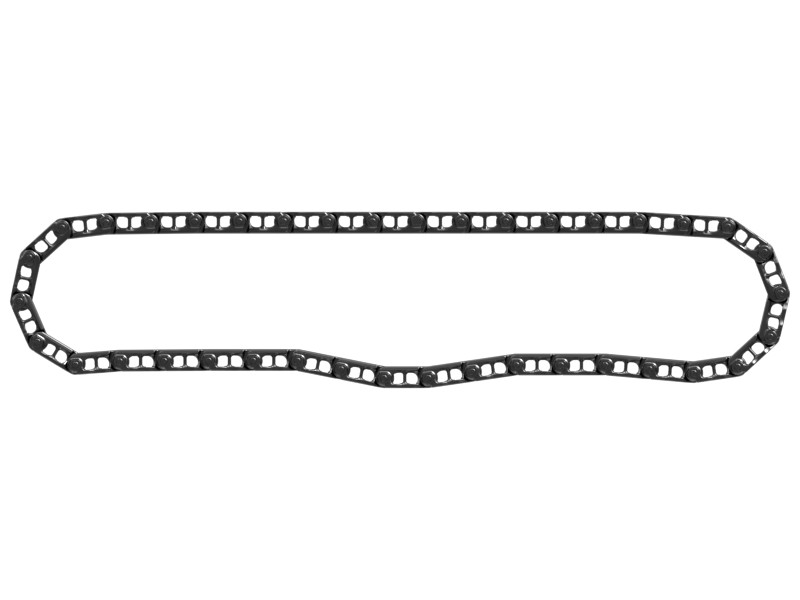

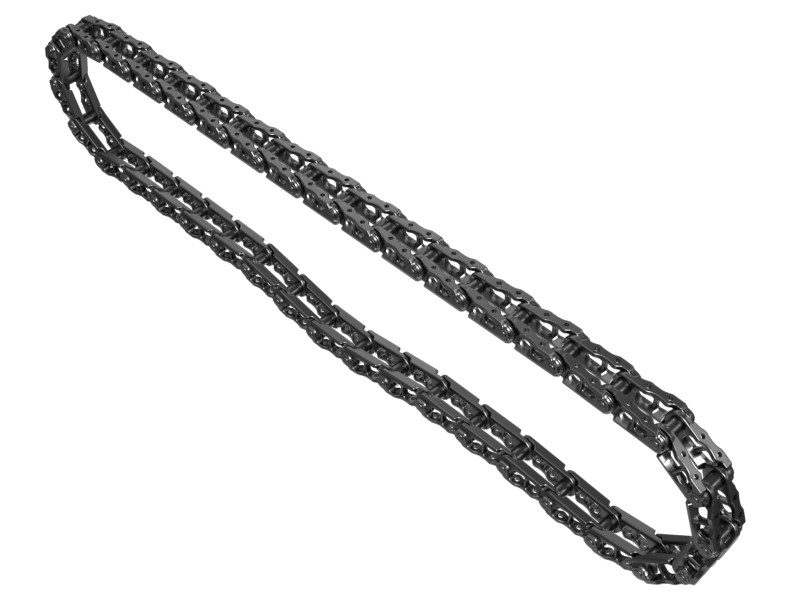

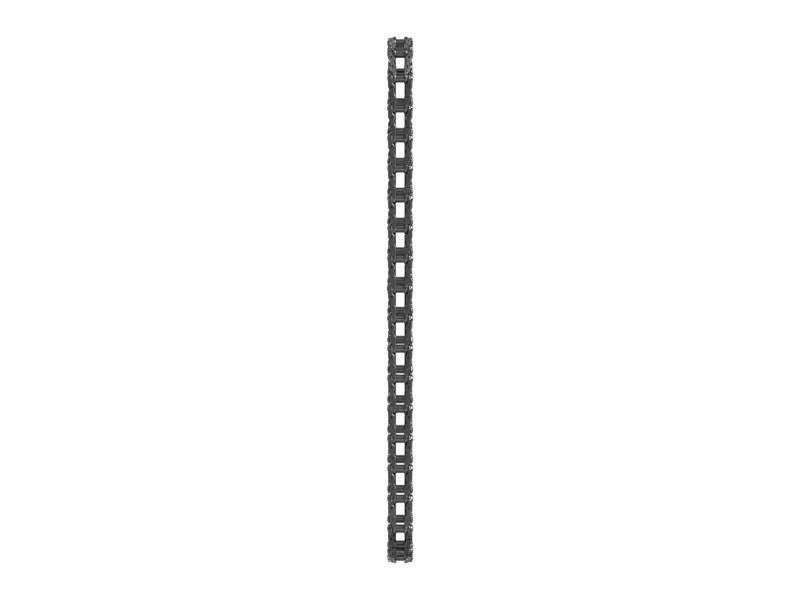

599-0021 Connecting Rod Group
Cat® grease lubricated undercarriage track link with 37 joints
Description
Cat Undercarriage System Track Joint Using 37 Grease Lubrication Description:
A track joint is an undercarriage component that connects the track shoes of a continuous track, allowing the vehicle to travel over uneven terrain. The track link group consists of parts such as cotter pins, track bushings, track master bushings, track links, track pins, master pins, and seals. The pins and bushings allow the joints to rotate and articulate relative to each other, enabling the track to conform to uneven ground and maintain traction.
Features
- Pins and bushings are sealed against dust and dirt and lubricated with grease to reduce wear.
- Reduces undercarriage noise and lowers the risk of joints freezing or seizing.
- Withstands high loads and stresses during operation.
Applications
Track joints are used to provide better traction and stability for the movement of the track group in the undercarriage system, and are most commonly used on Cat 312 OEM applications and 307, 307.5, 307B, 307C, 307D, and 307E Excavators.
Specifications
| Grease Lubricated Track Type | GLT |
|---|---|
| Main Bolt Thread | M14 |
| Wear Sensor | No |
| Rail to Pin Boss Outside Diameter | 22.8 mm (0.898 in) |
| Rotating Bushing Track | No RBT |
| Track Pitch | 154 mm (6.063 in) |
| Link Outside Spacing | 101.1 mm (3.98 in) |
| Link Inside Spacing at Sprocket | 40.6 mm (1.598 in) |
| Bushing Outside Diameter | 41.26 mm (1.624 in) |
| Pin Retention System | Press Fit |
| Weight | 149 kg (328.49 lb) |
| Number of Track Links | 37 |
| Number of Links | 38 |
| Pin Length | 131 mm (5.157 in) |
| Link Inside Spacing at Roller | 48.9 mm (1.925 in) |
| Track Shoe Bolt Hole Spacing C | 89 mm (3.504 in) |
| Track Shoe Bolt Hole Spacing B | 73 mm (2.874 in) |
| Bolt Hole Diameter | 14.2 mm (0.559 in) |
| Rail to Bushing Outside Diameter | 19.9 mm (0.783 in) |
| Link Height | 74 mm (2.913 in) |
| Track Shoe Bolt Hole Spacing A | 57 mm (2.244 in) |
| Track Reinforcement System | Not Applicable |
| Master Link Type | Slip Fit Master |
| Track Bolt Thread | M14 |
| Seal and Lubrication Type | SALT |
| Undercarriage System | HD |
Compatible Equipment
- Mini Excavators: 307, 307E2, 307D
- Excavators: 307.5, 307E
Additional information
| Machine Model | |
|---|---|
| Equipment Type | |
| Part Source | Genuine OEM |
