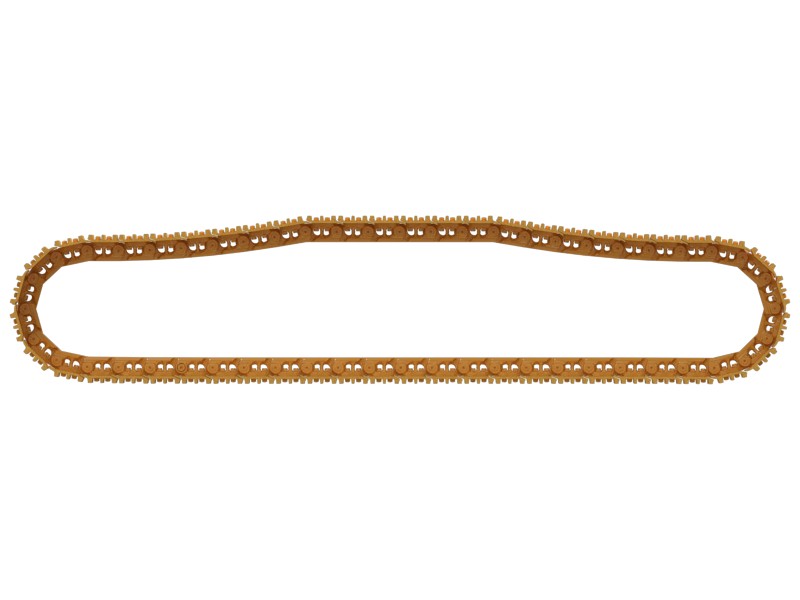

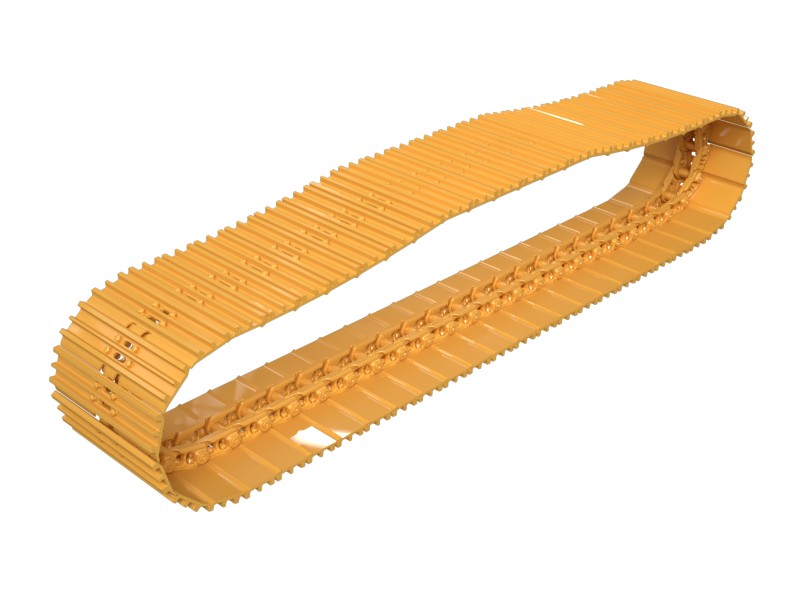

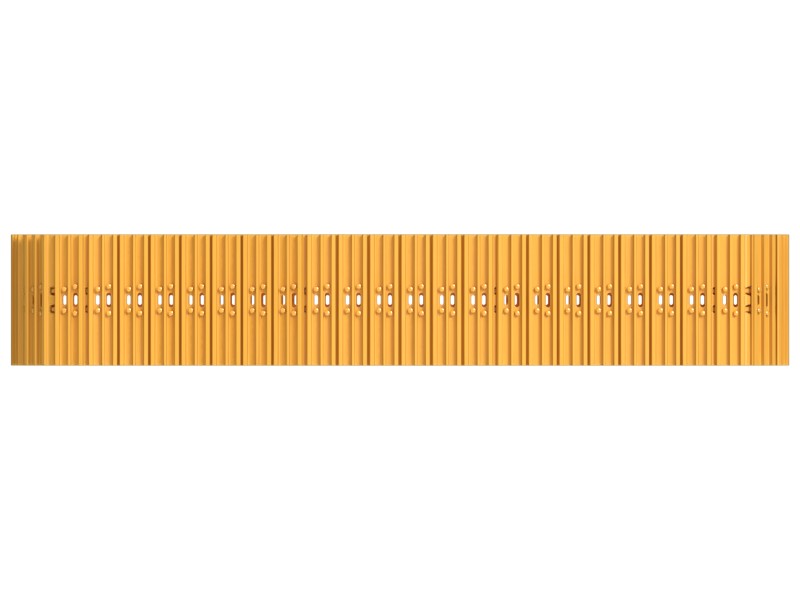

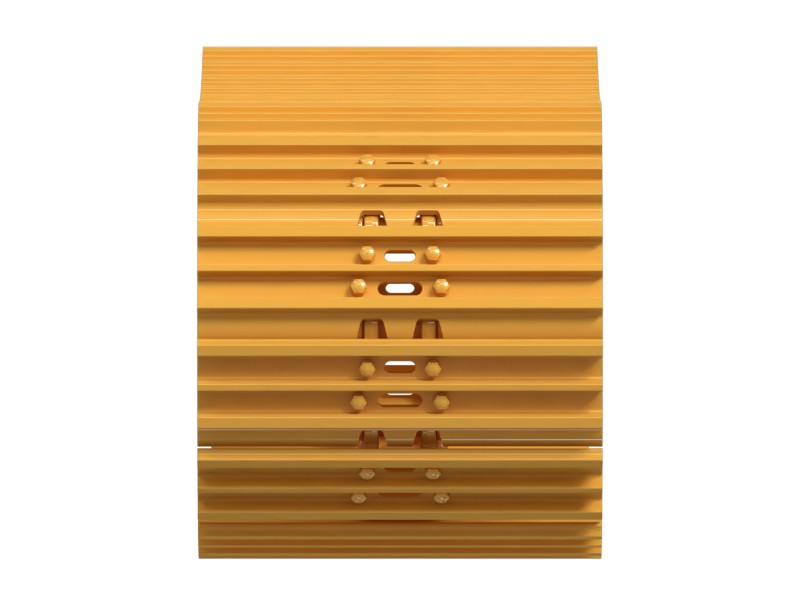

598-2763 900 TG Triple Grouser Track Shoe
Cat® triple grouser track shoe for undercarriage systems improves traction and stability
Description
A track assembly is formed when track shoes and fasteners secure the track shoes to the link group.
Features
General duty tracks can provide an affordable option for machines nearing retirement or with low utilization. Their lower initial price allows them to be run until failure. All Cat® undercarriage is backed by the Undercarriage System Guarantee. Manufactured by Caterpillar, they are hardened and quality tested to meet the productivity and performance demands of the work site.
Triple grouser track shoes offer less penetration and traction than single grouser track shoes, but better swing capability. Triple grouser track shoes are standard on track-type loaders and excavators because they require less turning resistance and greater maneuverability.
Specifications
| Undercarriage System | GD |
|---|---|
| Track Bolt Thread | M24 |
| Number of Grousers | Triple |
| Track Reinforcement System | Not Applicable |
| Abrasion Resistant Material | 0 ARM |
| Wear Sensor | No |
| Seal and Lubrication Type | Sealed |
| Main Bolt Thread | M24 |
| Shear | No |
| Grease Lubricated Track Type | GLT |
| Track Shoe Type | Multi Grouser |
| Track Shoe Width | 900 mm (35.433 in) |
| Master Link Type | Press Fit Master |
| Offset | Not Applicable |
| Number of Links | 52 |
| Pin Retention System | PPR3 |
| Track Shoe Hole Type | Slotted |
| Hole Type | Slotted |
| Bushing Inside Diameter | 71.46 mm (2.813 in) |
| Link Inside Spacing at Sprocket | 104.02 mm (4.095 in) |
| Rotating Bushing Track | No RBT |
| Number of Track Links | 52 |
| Track Pitch | 215.9 mm (8.5 in) |
Compatible Equipment
- Excavators: 350
Additional information
| Machine Model | |
|---|---|
| Equipment Type | |
| Part Source | Genuine OEM |
