Description
Wear rings prevent seal extrusion in high-pressure applications and help protect the life of the overall sealing system during sudden pressure changes.

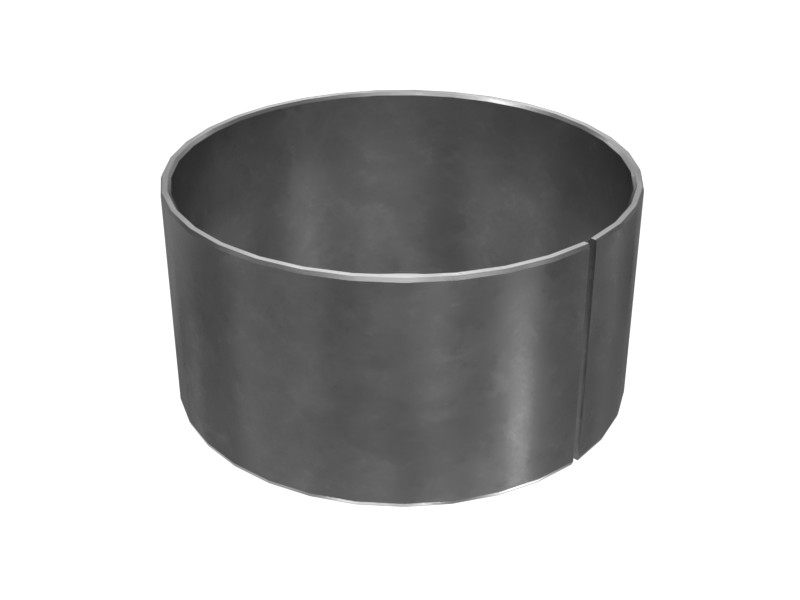

The 593-8315 wear ring is designed in combination with elastomeric seals and mating components and greatly helps ensure the life and performance of sealing systems in high-pressure applications. Split rings are easy to assemble.
Features

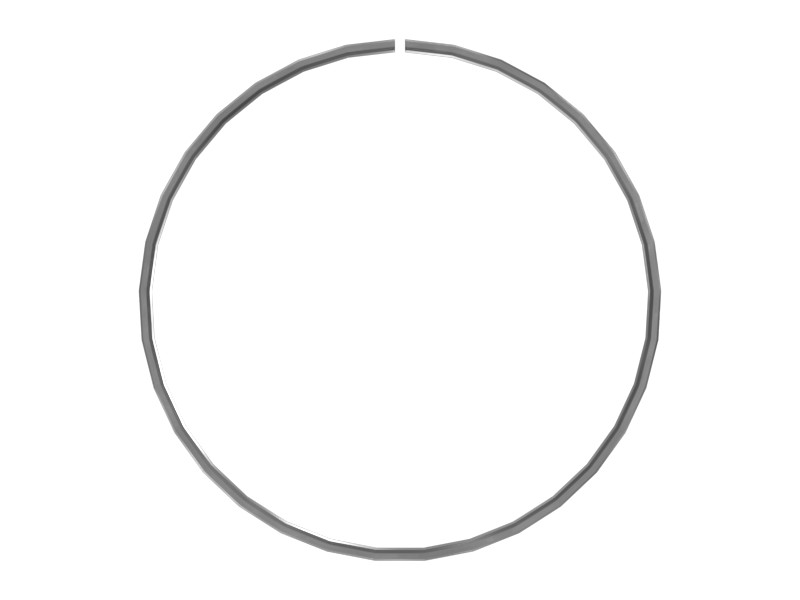

- Split wear ring
- PTFE-filled porous bronze with steel backing
- Fits hydraulic cylinders with a piston rod diameter of 115 mm (4.5 in) and a groove outside diameter of 120 mm (4.7 in).
- Length: 60 mm (2.4 in)
- Cut Width: 2.4 mm (0.09 in)
- Outside Diameter: 120 mm (4.7 in)
Applications
Wear rings are intended for compatible hydraulic cylinder arrangements. Refer to your Operation and Maintenance Manual or contact MECHSC for more information.
Specifications
| Material | Steel-Backed Bronze |
|---|---|
| Length | 60 mm (2.3 in) |
| Outside Diameter | 120 mm (4.7 in) |
Compatible Equipment
- Excavators: 330D L, 349F L, 336D2 L, 330C L, 330C, 336D L, 352, 336, 340, 385C, 385C L, 336D2 GC, 336E, 336E LH, 336E H, 340D2 L, 336D2 XE, 336F L, 336F LN, 352F, 336F, 349E L, 355, 324D L, 349E L VG, 349, 336F L XE, 336E L, 340D L, 330D, 336E LN, 349E, 325D L, 336D2, 330, 336D
Additional information
| Machine Model | 324D L, 325D L, 330, 330C, 330C L, 330D, 330D L, 336, 336D, 336D L, 336D2, 336D2 GC, 336D2 L, 336D2 XE, 336E, 336E H, 336E L, 336E LH, 336E LN, 336F, 336F L, 336F L XE, 336F LN, 340, 340D L, 340D2 L, 349, 349E, 349E L, 349E L VG, 349F L, 352, 352F, 355, 385C, 385C L |
|---|---|
| Equipment Type | |
| Part Source | Genuine OEM |
