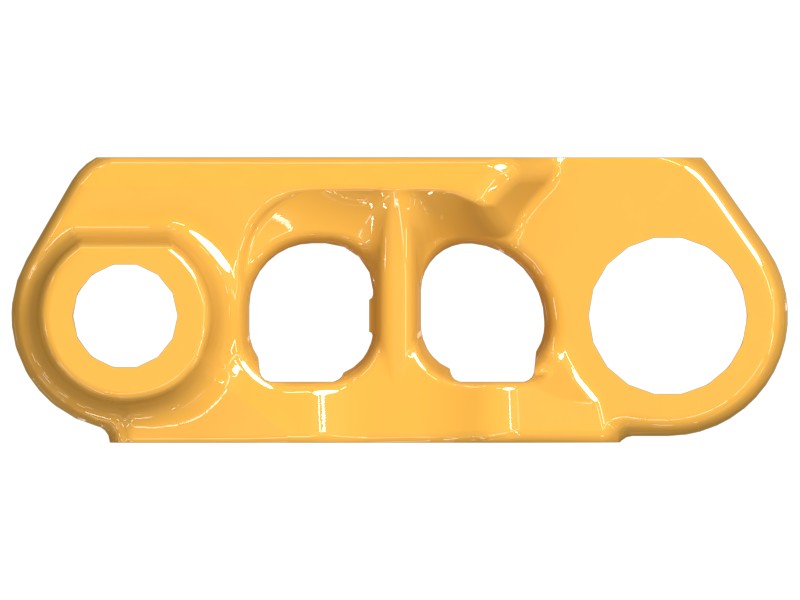

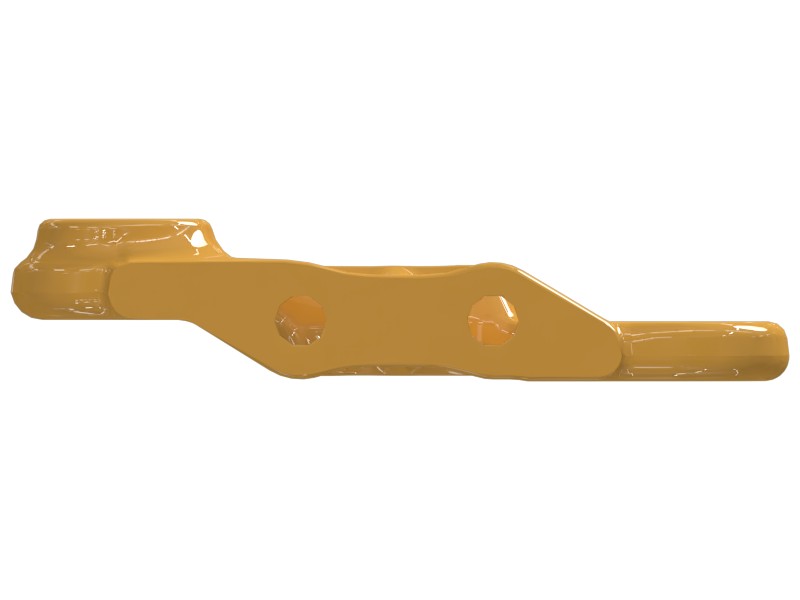

591-5650 Track Link
Cat® Right Track Link for Sealed and Lubricated Track (SALT), Pitch: 171 mm
Description
591-5650 is a track link that makes up the link group and provides a running rail for the machine.
Features
- Right Track Link
- For Sealed and Lubricated Track (SALT) systems
- Track Pitch: 171 mm (6.8 in)
- Cat Sealed and Lubricated Track (SALT) seals lubricant inside the undercarriage system and keeps abrasives out. It eliminates internal pin and bushing wear, reducing maintenance costs and downtime while extending service life and increasing serviceability. Combined with a track design matched to the machine and work environment, SALT provides a versatile undercarriage configuration for a wide range of ground conditions.
Applications
Refer to your Operation and Maintenance Manual or contact MECHSC for more information.
Specifications
| Steel Grade | 1E0669 |
|---|---|
| Rail to Pin Boss Outside Diameter | 21 mm (0.827 in) |
| Track Link Crown Height | 0 mm (0 in) |
| Bushing End Bar Thickness | 18.7 mm (0.736 in) |
| Overall Height | 90 mm (3.543 in) |
| Bolt Hole Diameter | 16.2 mm (0.638 in) |
| Bushing Bore Diameter | 50.36 mm (1.983 in) |
| Lug Thickness | 0 mm (0 in) |
| Track Pin Bore Diameter | 33.33 mm (1.312 in) |
| Hole to Rail | 50 mm (1.969 in) |
| Pin End Bar Thickness | 31.7 mm (1.248 in) |
| Pin Retention System | Press Fit |
| Main Bolt Thread | M16 |
| Wear Sensor | No |
| Master Link Type | None |
| Undercarriage System | GD |
| Track Pitch | 171 mm (6.8 in) |
| Bolt Size | M16 mm |
Compatible Equipment
- Excavators: 313 GC, 313, 312 GX, 313 GX, 312 GC, 313D2 GC, 313D2, 315, 315 GC
