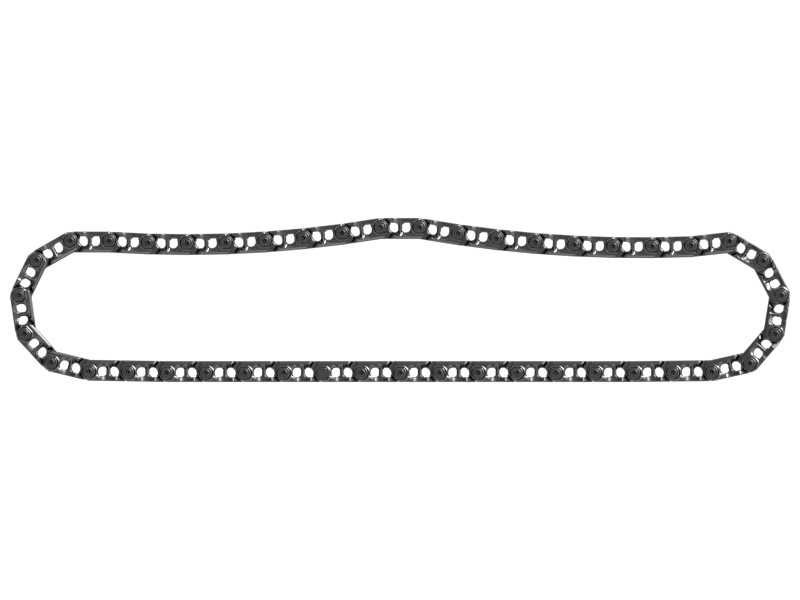

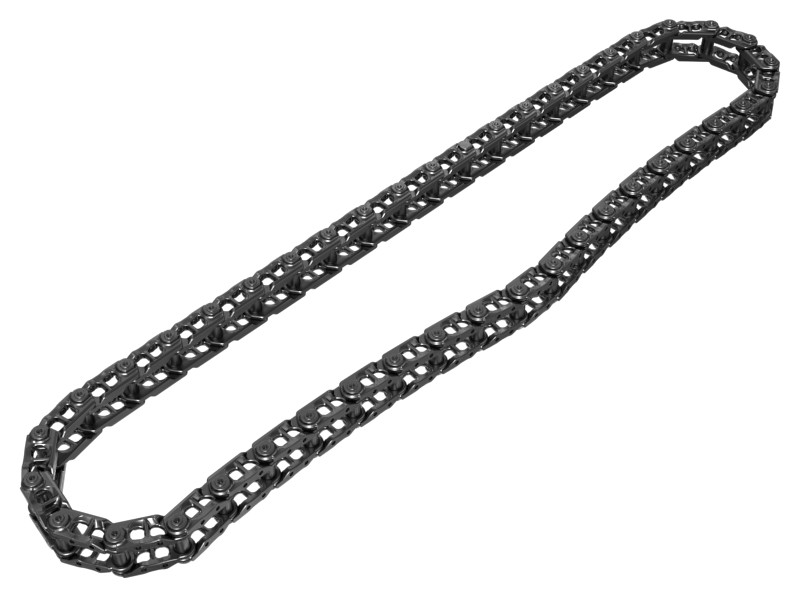

591-5646 Link Group
Cat® General Duty track links provide versatile, durable, stable, and reliable performance for heavy equipment undercarriage systems.
Description
The link assembly is driven by the sprocket and final drive. It supports the weight of the machine, provides a rail for the machine to travel on, and provides a place for the track shoes to attach.
Features
Grease lubricated tracks have internally lubricated pins and bushings to avoid contact and friction, and each track joint is sealed to keep the grease in. Compared with sealed tracks, this extends internal wear life by 25%, reduces undercarriage noise, and lowers the chance of joints freezing or seizing.
Specifications
| Pin Retention System | Press Fit |
|---|---|
| Link Height | 90 mm (3.543 in) |
| Link Outside Spacing | 138.1 mm (5.437 in) |
| Rail to Bushing Outside Diameter | 24.7 mm (0.972 in) |
| Bolt Hole Diameter | 16.2 mm (0.638 in) |
| Track Pitch | 171.45 mm (6.75 in) |
| Number of Links | 43 |
| Track Shoe Bolt Hole Spacing B | 108 mm (4.252 in) |
| Track Shoe Bolt Hole Spacing C | 108 mm (4.252 in) |
| Track Shoe Bolt Hole Spacing A | 60.3 mm (2.374 in) |
| Link Inside Spacing at Sprocket | 69.9 mm (2.752 in) |
| Bushing Outside Diameter | 50.6 mm (1.992 in) |
| Link Inside Spacing at Roller | 74.7 mm (2.941 in) |
| Rotating Bushing Track | No RBT |
| Rail to Pin Boss Outside Diameter | 25.5 mm (1.004 in) |
| Number of Track Links | 43 |
| Pin Length | 178 mm (7.008 in) |
| Main Bolt Thread | M16 |
| Track Reinforcement System | Not Applicable |
| Track Bolt Thread | M16 |
| Grease Lubricated Track Type | GLT |
| Seal and Lubrication Type | SALT |
| Wear Sensor | No |
| Master Link Type | Slip Fit Master |
| Undercarriage System | HD |
Compatible Equipment
- Excavators: 313 GC, 313, 315 GC, 313 GX, 313D2 GC, 315, 313D2
