Description

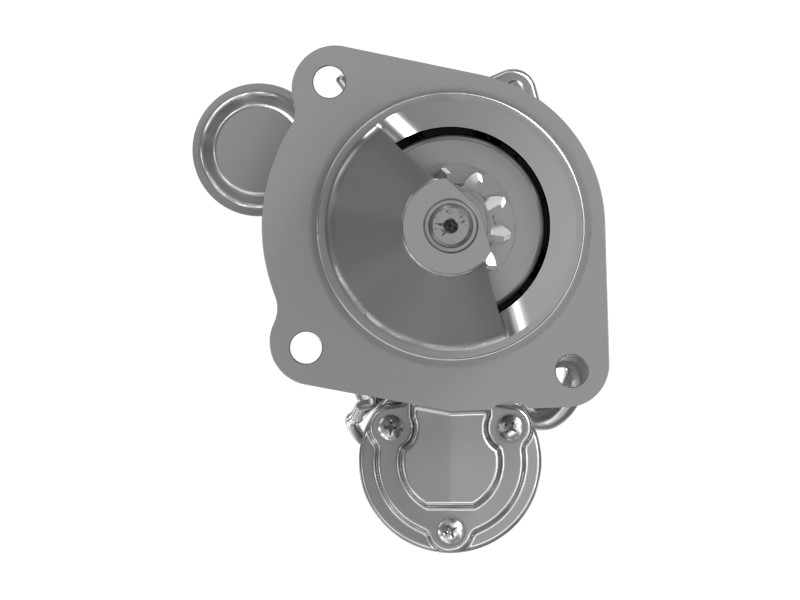

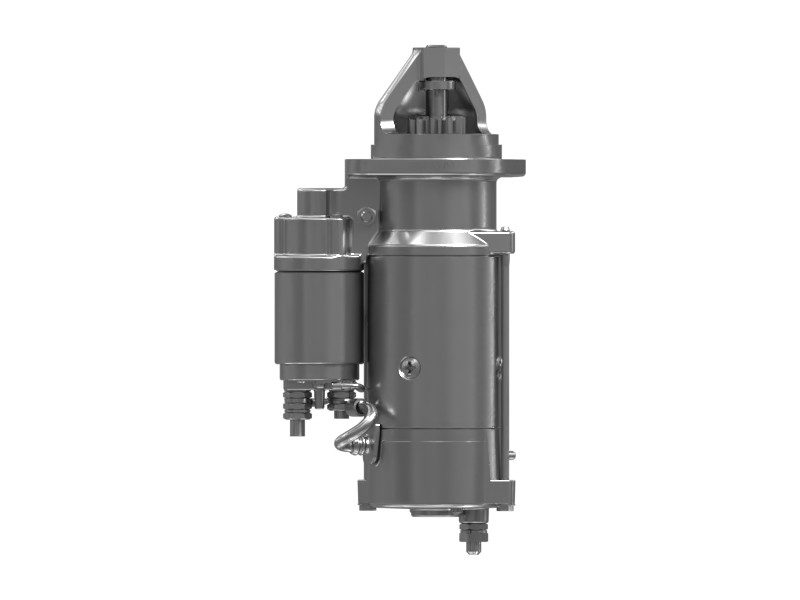

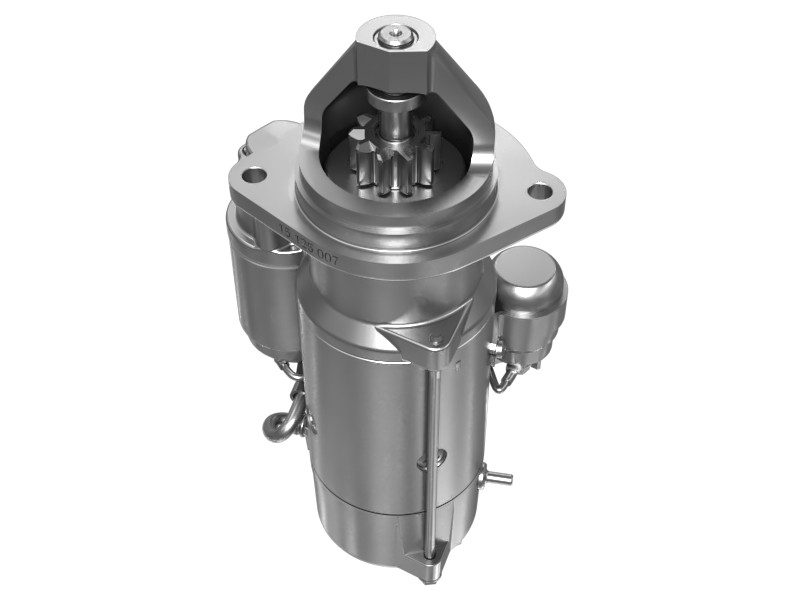

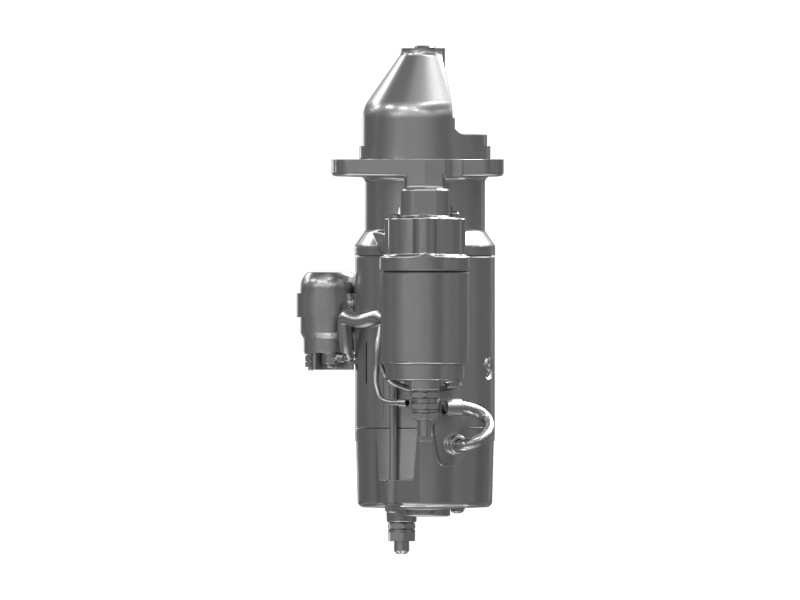

Cat starters (for example, 590-4756) are carefully designed to deliver the high current needed every time a cold engine is started, and are built for heavy-duty work and reliable performance in harsh, dirty, extremely cold conditions. The brush-type design uses integral brushes to reduce maintenance and constant-pressure springs for even brush wear. Cat starters integrate seamlessly into a balanced electrical system and work together with other Cat engine components.
Cat parts are built to exact specifications for durability, reliable performance, efficiency and environmental friendliness, and are reusable.
Features
- 24 V Electric Starter Motor
- 4.5 kW
- 10 Teeth
- Rotation: Clockwise
- IP67 water and dust protection rating
Applications
Refer to your Operation and Maintenance Manual or contact MECHSC for more information.
Specifications
| Pinion Pitch | 8 |
|---|---|
| Pinion Teeth | 10 |
| Marine Certification | Not Specified |
| Material | Corrosion Preventative Fluid |
| Current | Not Specified Amps |
| Electric Starting and/or Prelube | Not Specified |
| Mount Circumference | 127 mm |
| Mounting Size | Not Specified Nose Cone |
| Voltage | 24 Volts |
Compatible Equipment
- Generator Sets: C4.4
- Compactors: CS12, CS11, CS-54B
- Excavators: 313 GC, 313, 316 GC, 315 GC, 315, 312 GC
- Wheel Loaders: M314
