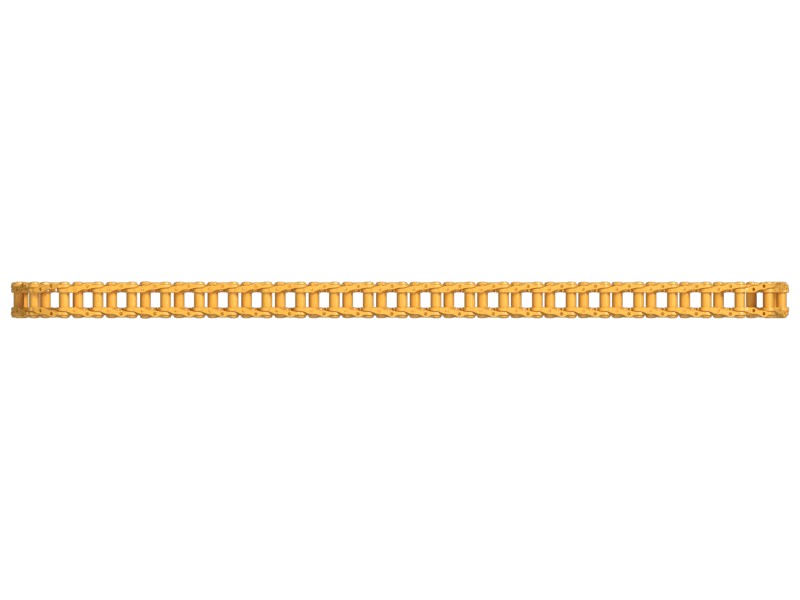

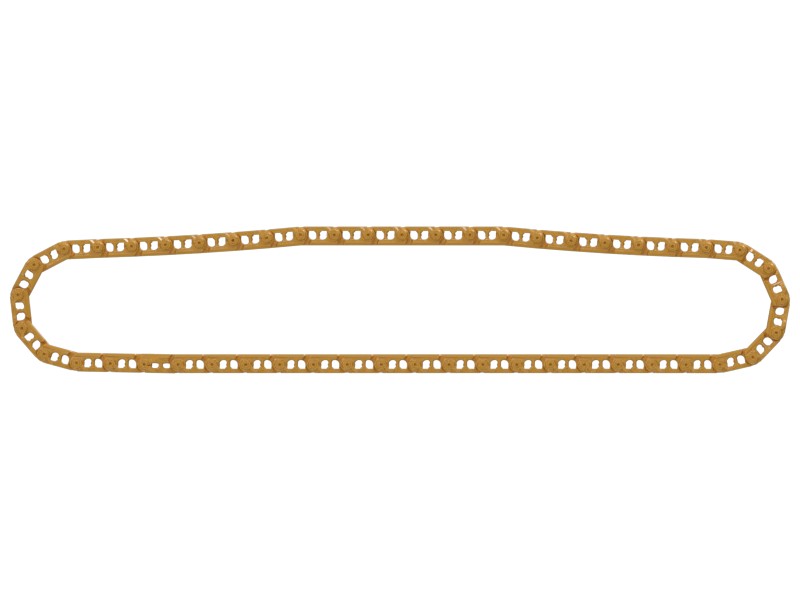

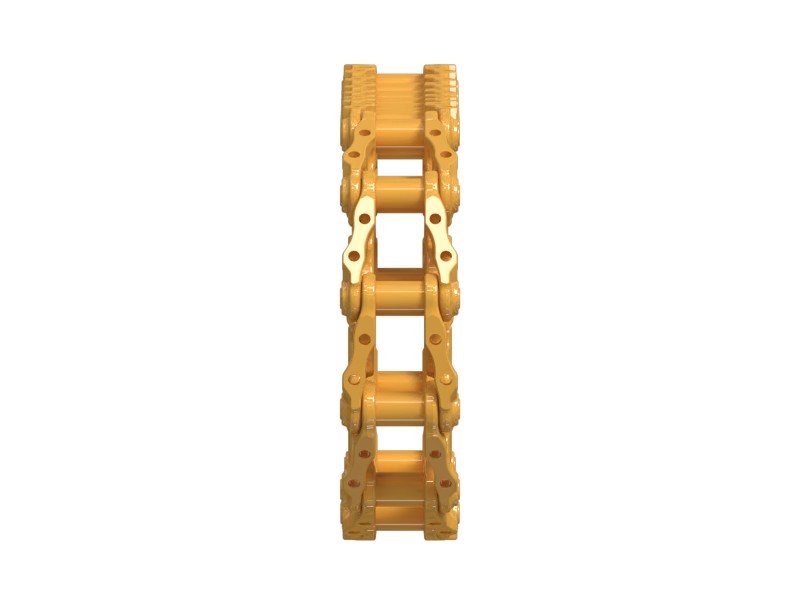

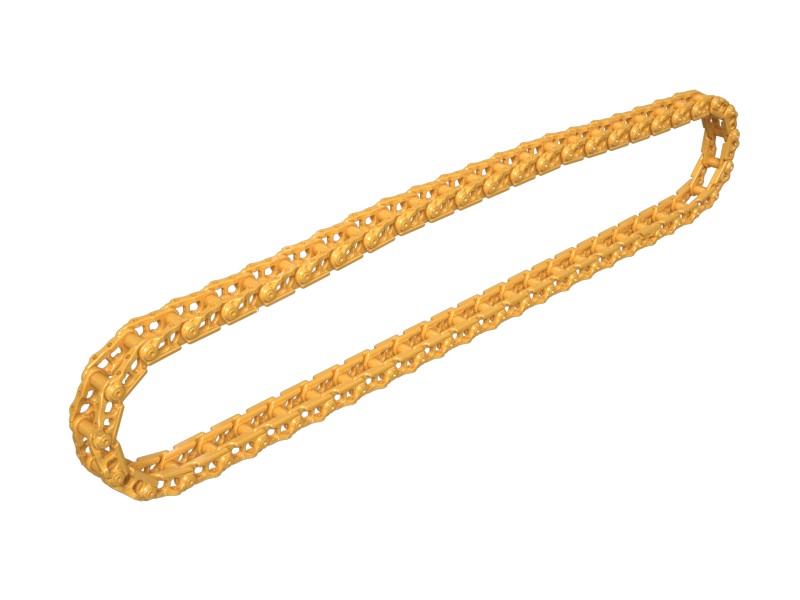

590-4583 Connecting Rod Group
Cat® clamp-type master link group GLT, 49 links, press fit, SALT, 190 mm track pitch
Description
Cat® Flat Undercarriage System Track Connection with 49 Joints, Grease Lubricated Description:
A track joint is an undercarriage component that connects the track shoes on a continuous track, allowing the vehicle to travel over uneven terrain. The track link series consists of parts such as track bushings, track master links, track links, track pins, seals, and track master bushings. The pins and bushings allow the joints to rotate and articulate relative to each other, enabling the track to conform to uneven ground and maintain traction.
Features
- Pins and bushings are sealed against dust and dirt and lubricated with grease to reduce wear.
- Distributes the load evenly across the track shoes and the ground, providing support and stability.
- Withstands high loads and stresses during operation.
Applications
Track joints are used to provide better traction and stability for the movement of the track group in the undercarriage system, and are most commonly used on Cat 215B, 219, 219D, 225, 225B, 225D, 229, 315B, 315C, 315D, 317, 317B, 318B, 318C, 319C, 319D, 319D, 320, 320B, 320C, 320D, 320E, 320F, 321B, 321C, 321D, 323, 323D, 323E, 323F, 325, 325F, 528, and 538 Excavators, 320D Material Handlers, and TR43 drivetrains.
Specifications
| Undercarriage System | GD |
|---|---|
| Grease Lubricated Track Type | GLT |
| Wear Sensor | No |
| Seal and Lubrication Type | SALT |
| Main Bolt Thread | M20 |
| Track Bolt Thread | M20 |
| Master Link Type | Clamp Master |
| Track Reinforcement System | Not Applicable |
| Number of Links | 49 |
| Number of Track Links | 49 |
| Pin Retention System | Press Fit |
| Rotating Bushing Track | No RBT |
| Pin Length | 203 mm (7.992 in) |
| Link Outside Spacing | 168.5 mm (6.634 in) |
| Link Inside Spacing at Sprocket | 82.6 mm (3.252 in) |
| Rail to Pin Boss Outside Diameter | 30.6 mm (1.205 in) |
| Rail to Bushing Outside Diameter | 27.6 mm (1.087 in) |
| Track Shoe Bolt Hole Spacing C | 155.6 mm (6.126 in) |
| Track Shoe Bolt Hole Spacing B | 119.6 mm (4.709 in) |
| Bolt Hole Diameter | 21 mm (0.827 in) |
| Link Height | 103 mm (4.055 in) |
| Track Shoe Bolt Hole Spacing A | 69 mm (2.717 in) |
| Bushing Outside Diameter | 58.72 mm (2.312 in) |
| Link Inside Spacing at Roller | 96.3 mm (3.791 in) |
| Weight | 516 kg (1137.59 lb) |
| Bolt Size | M20 mm |
| Track Pitch | 190 mm (7.48 in) |
Compatible Equipment
- Excavators: 323 GX, 320 GC, 320, 323, 323D2 L, 323GC, 323D L
