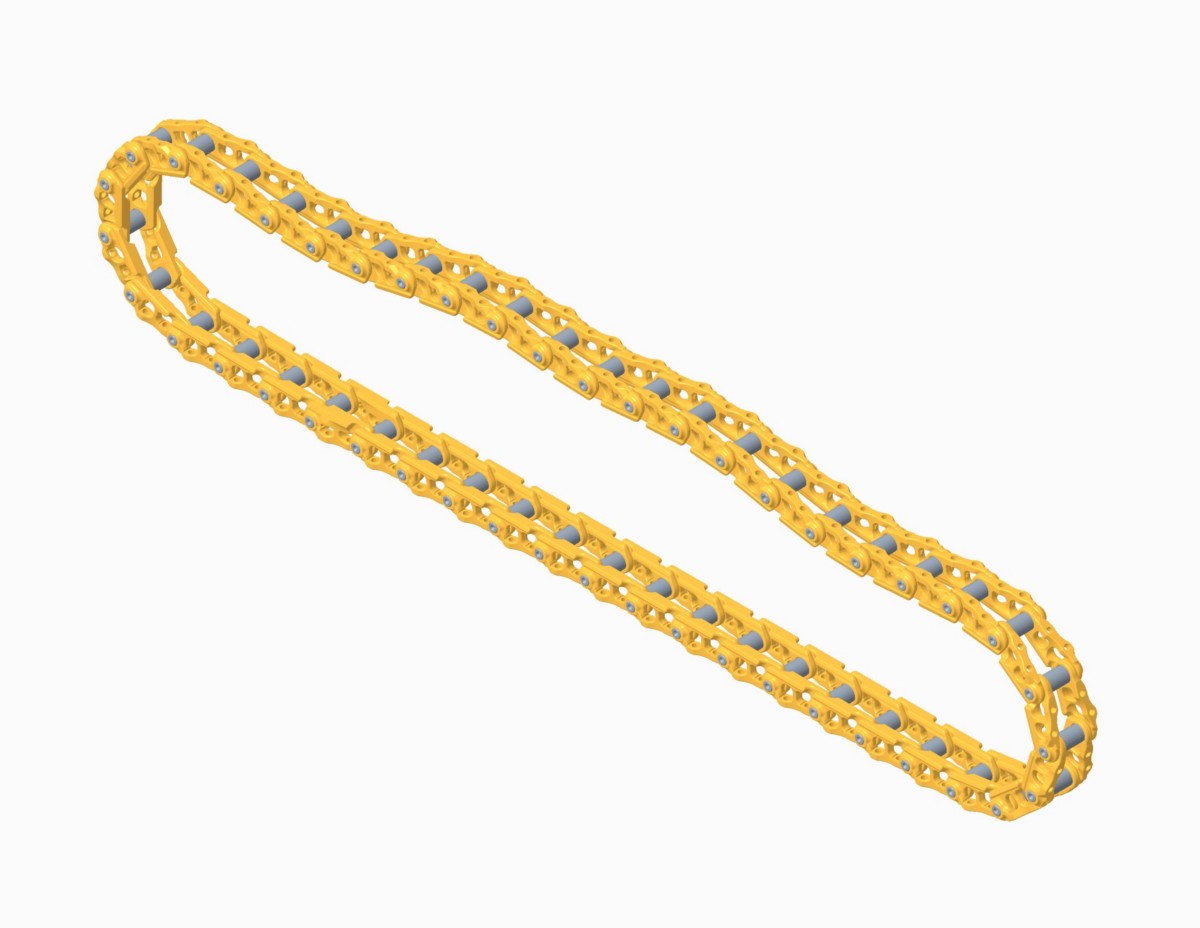

590-3450 CAT® Track Chain
General Duty Link Group
Fitment data not listed — send us your machine model or serial number to confirm.
Description
The link group is driven by the sprocket and final drive. It supports the machine weight, provides a travel guide rail for the machine, and provides locations for connecting the track shoes.
Features
General duty tracks are designed to be an affordable option for machines at the end of their life cycle or with low utilization. Their lower initial price allows them to be run until failure. All Cat® undercarriage is backed by the Undercarriage System Guarantee. Manufactured by Caterpillar, they are hardened and quality tested to meet the productivity and performance demands of the work site.
Specifications
| Link Inside Spacing at Roller | 96.3 mm (3.791 in) |
|---|---|
| Number of Track Links | 47 |
| Link Outside Spacing | 168.5 mm (6.634 in) |
| Track Pitch | 190 mm (7.48 in) |
| Track Shoe Bolt Hole Spacing C | 155.6 mm (6.126 in) |
| Rail to Bushing Outside Diameter | 27.6 mm (1.087 in) |
| Track Shoe Bolt Hole Spacing A | 69 mm (2.717 in) |
| Number of Links | 47 |
| Link Inside Spacing at Sprocket | 82.6 mm (3.252 in) |
| Rail to Pin Boss Outside Diameter | 30.6 mm (1.205 in) |
| Pin Length | 203 mm (7.992 in) |
| Rotating Bushing Track | No RBT |
| Link Height | 103 mm (4.055 in) |
| Track Shoe Bolt Hole Spacing B | 119.6 mm (4.709 in) |
| Bushing Outside Diameter | 58.72 mm (2.312 in) |
| Bolt Hole Diameter | 21 mm (0.827 in) |
| Pin Retention System | Press Fit |
| Track Bolt Thread | M20 |
| Seal and Lubrication Type | SALT |
| Grease Lubricated Track Type | GLT |
| Main Bolt Thread | M20 |
| Master Link Type | Clamp Master |
| Track Reinforcement System | Not Applicable |
| Undercarriage System | GD |
| Wear Sensor | No |
Additional information
| Part Source | Genuine OEM |
|---|
