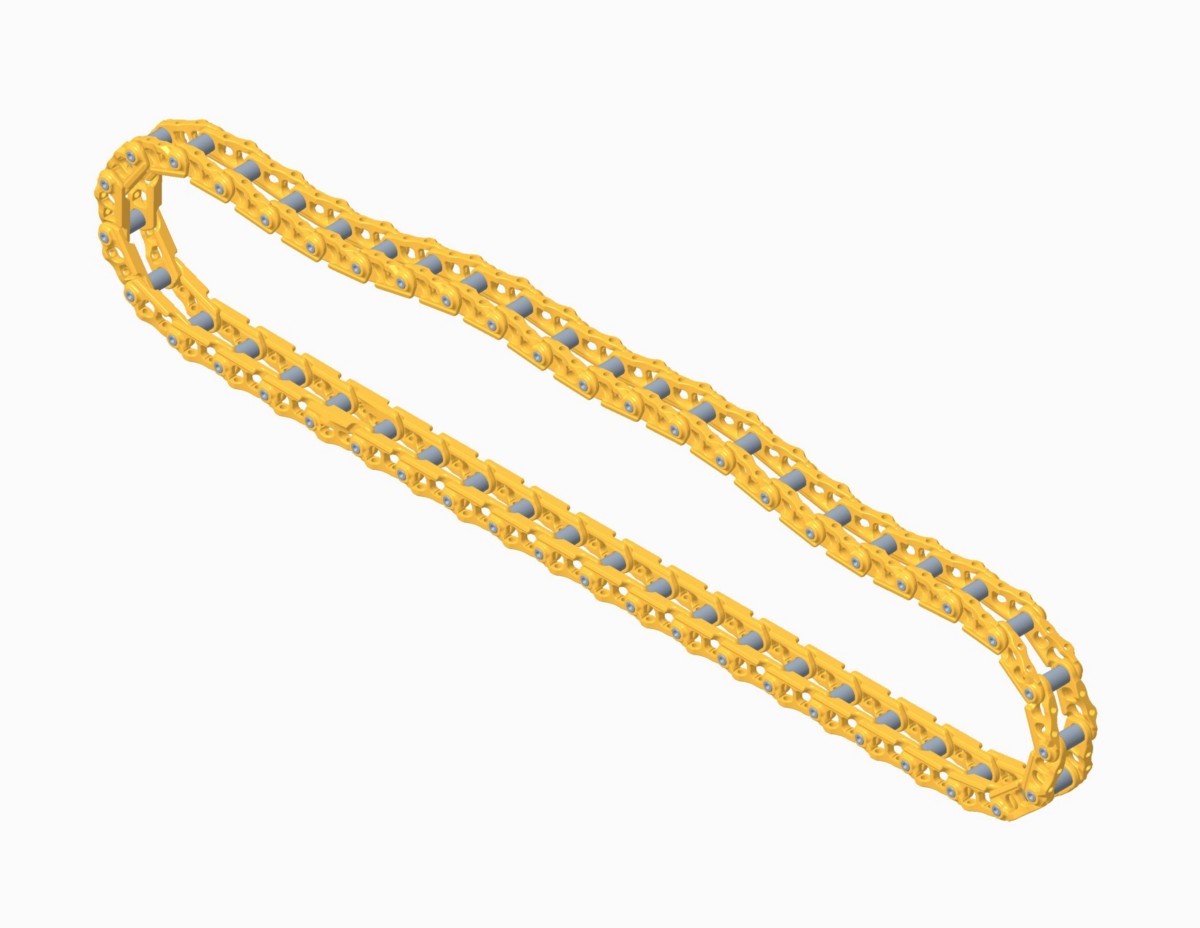

590-2864 Connecting Rod Group
Cat® clamp-type master link group GLT, 45 links, press fit, SALT, 190 mm track pitch
Description
The link group is driven by the sprocket and final drive. It supports the machine weight, provides a travel guide rail for the machine, and provides locations for connecting the track shoes.
Features
- The grease lubricated track is designed with internally lubricated pins and bushings that avoid contact and friction, and each track joint is fully sealed so grease cannot escape. As a result, the internal wear life of the sealed track is extended by 25%, undercarriage noise is reduced, and the chance of joints freezing or seizing is lowered.
- General duty track is designed to provide an economical option for machines at the end of their life cycle or with low utilization. Its initial price is low, and it can be run until it fails. All Cat® undercarriage is backed by the undercarriage system guarantee. It is manufactured by Caterpillar, hardened, and quality tested to meet the productivity and performance needs of the job site.
Specifications
| Bolt Size | M20 mm |
|---|---|
| Bolt Hole Diameter | 21 mm (0.827 in) |
| Link Inside Spacing at Roller | 96.9 mm (3.815 in) |
| Number of Track Links | 45 |
| Track Shoe Bolt Hole Spacing A | 69 mm (2.717 in) |
| Track Shoe Bolt Hole Spacing B | 120.2 mm (4.732 in) |
| Pin Retention System | Press Fit |
| Rotating Bushing Track | No RBT |
| Link Outside Spacing | 169.1 mm (6.657 in) |
| Rail to Pin Boss Outside Diameter | 30.6 mm (1.205 in) |
| Rail to Bushing Outside Diameter | 27.6 mm (1.087 in) |
| Bushing Outside Diameter | 58.72 mm (2.312 in) |
| Link Inside Spacing at Sprocket | 83.2 mm (3.276 in) |
| Track Shoe Bolt Hole Spacing C | 156.2 mm (6.15 in) |
| Pin Length | 203 mm (7.992 in) |
| Link Height | 103 mm (4.055 in) |
| Number of Links | 45 |
| Seal and Lubrication Type | SALT |
| Main Bolt Thread | M20 |
| Master Link Type | Clamp Master |
| Track Reinforcement System | Not Applicable |
| Wear Sensor | No |
| Track Bolt Thread | M20 |
| Grease Lubricated Track Type | GLT |
| Undercarriage System | GD |
| Track Pitch | 190 mm (7.48 in) |
Compatible Equipment
- Excavators: 320 GX, 320, 325, 320C, 320D3, 320D3 GC, 323 GX, 320D2 GC, 320 GC, 320E, 320D2, 320D
