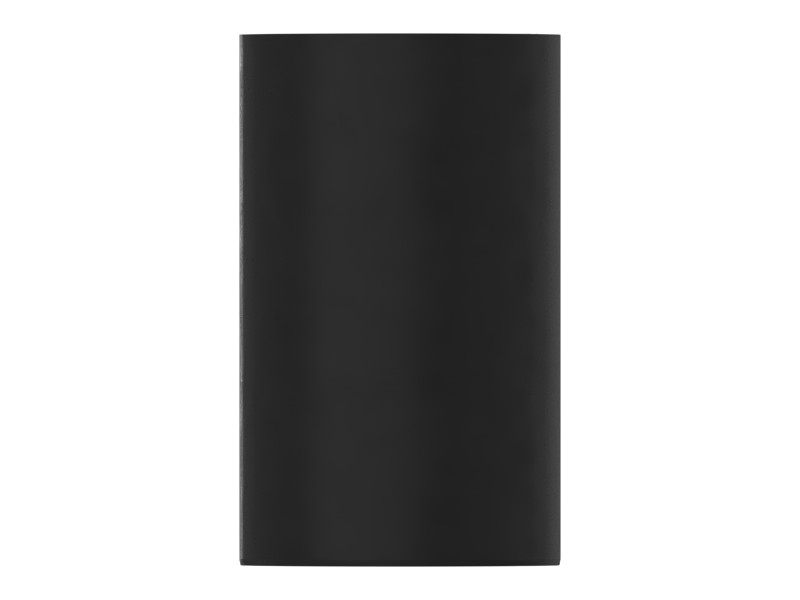

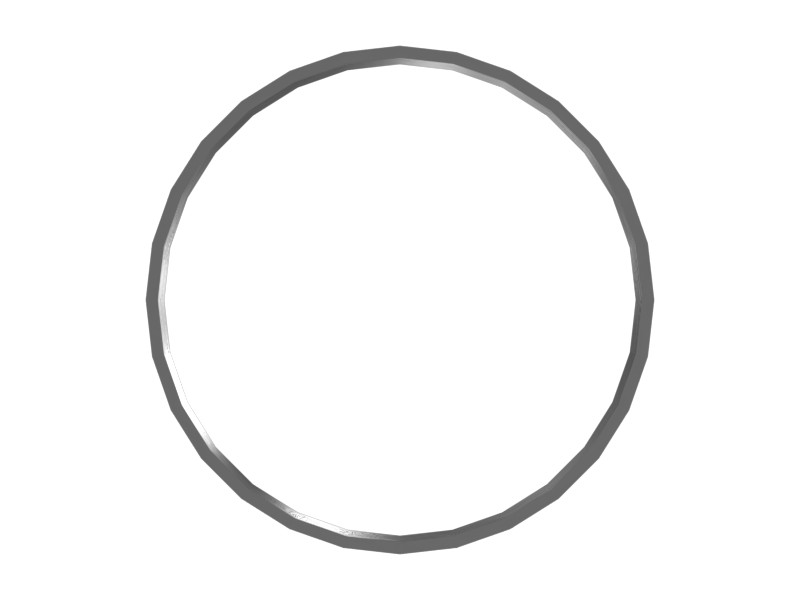

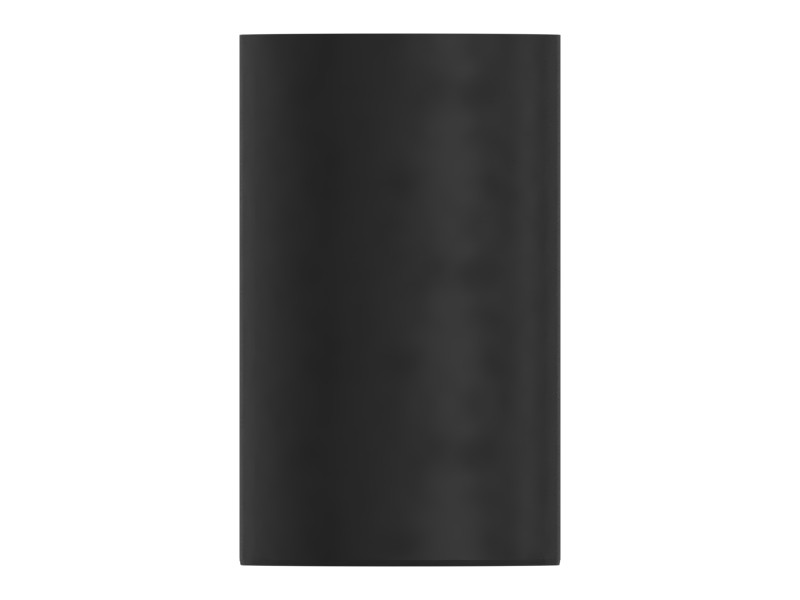

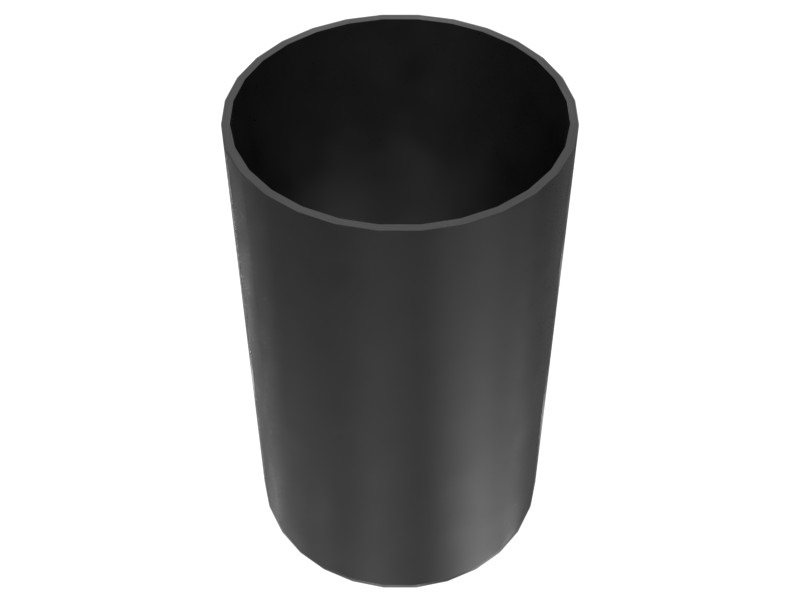

589-8187 Cylinder Liner Sleeve
Cat® cylinder liner sleeve for 3204/3208 engine blocks, ID X OD X Length: 113.474 X 119.139 X 196.85 mm
Fitment data not listed — send us your machine model or serial number to confirm.
Description
Cylinder liner sleeve (part number 589-8187) is installed in the engine block to prevent the piston from wearing through the cylinder bore of 3204/3208 industrial and machine engines.
Features
- Cast iron sleeve
- Outside Diameter: 119.139 mm (4.690 in)
- Inside Diameter: 113.474 mm (4.467 in)
- Length: 196.85 mm (7.750 in)
Applications
Refer to your Operation and Maintenance Manual or contact MECHSC for more information.
Specifications
| Inside Diameter | 113.47 mm (4.47 in) |
|---|---|
| Length | 196.85 mm (7.75 in) |
| Material | Cast Iron |
| Outside Diameter | 119.14 mm (4.69 in) |
Additional information
| Part Source | Genuine OEM |
|---|
