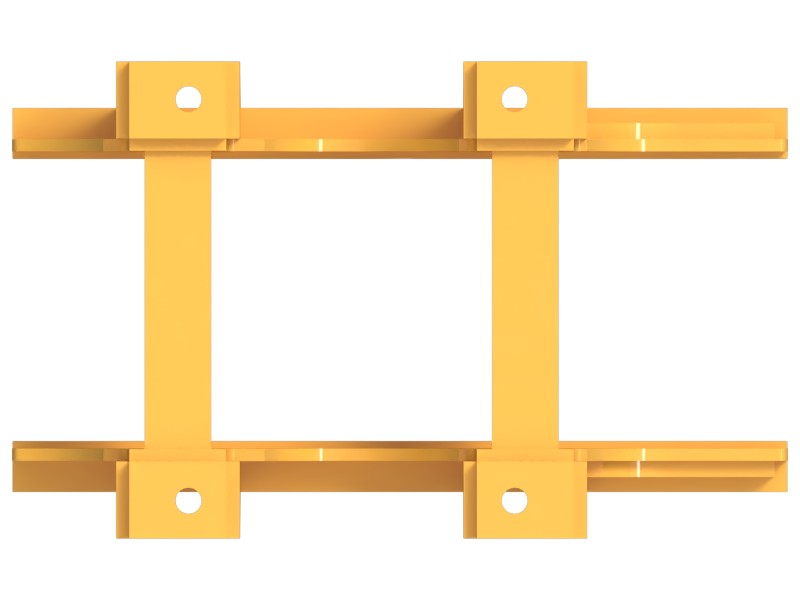

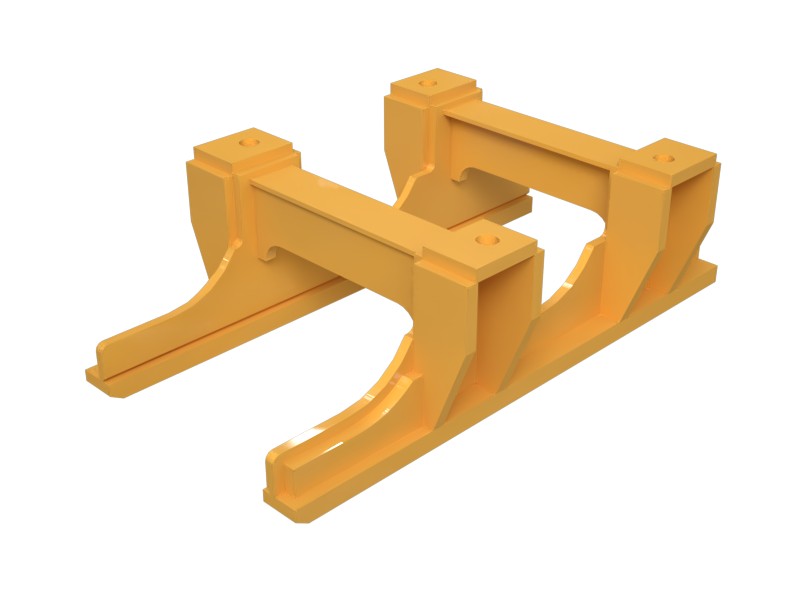

589-7864 Full Length Roller Guard
Cat® Track Guiding Guard, Partial Full-Length Guard, Undercarriage Width: 394 mm, Black
Description
589-7864 is a track guiding guard used to help guide the link group and rollers and to protect them from damage by debris and material.
Features
- Track guiding guard used in full-length guards
- Undercarriage Width: 394 mm (15.5 in)
- Protects the track, rollers, and sprockets from damage by rocks and debris.
- Provides some additional track travel guidance assistance.
- Finish: Black paint
- For use with M24 fasteners
Applications
Refer to your Operation and Maintenance Manual or contact MECHSC for more information.
Specifications
| Material | Alloy Steel |
|---|---|
| Chassis Width | 394 mm |
| Height | 235 mm (9.3 in) |
| Track Frame Side | Left And Right |
| Shroud Position | Front And Rear And Center |
| Shroud Type | Roller Guard Full Length |
| Length | 765 mm (30.1 in) |
| Undercarriage System | HD |
Compatible Equipment
- Motor Graders: 349 GC
- Excavators: 349, 352, 350, 355, 336
Additional information
| Machine Model | |
|---|---|
| Equipment Type | |
| Part Source | Genuine OEM |
