Description

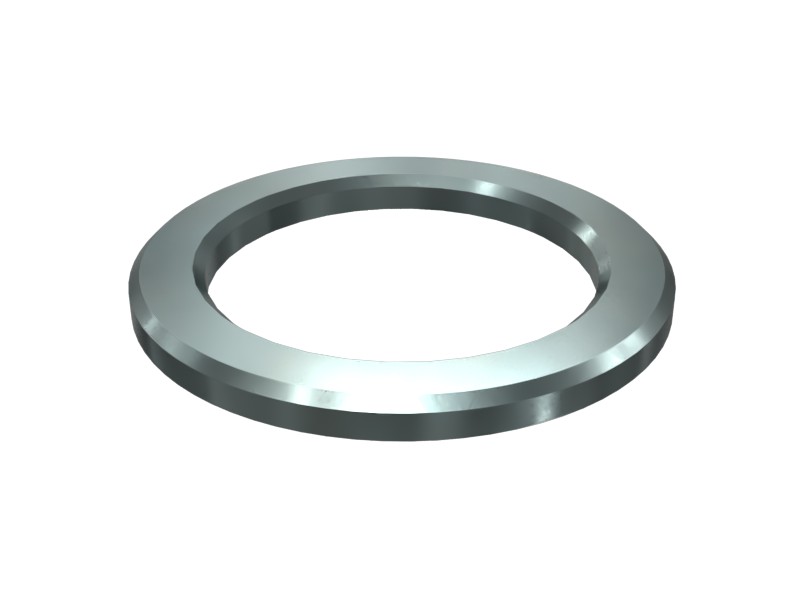

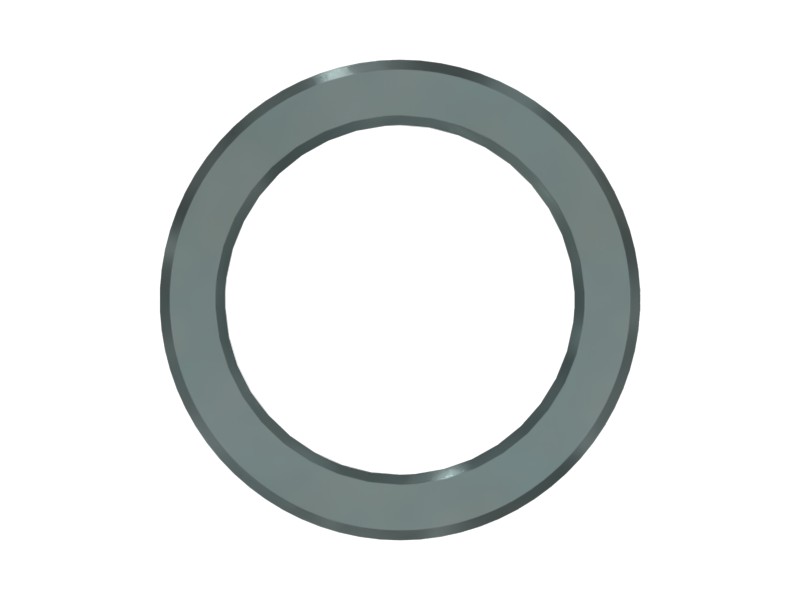

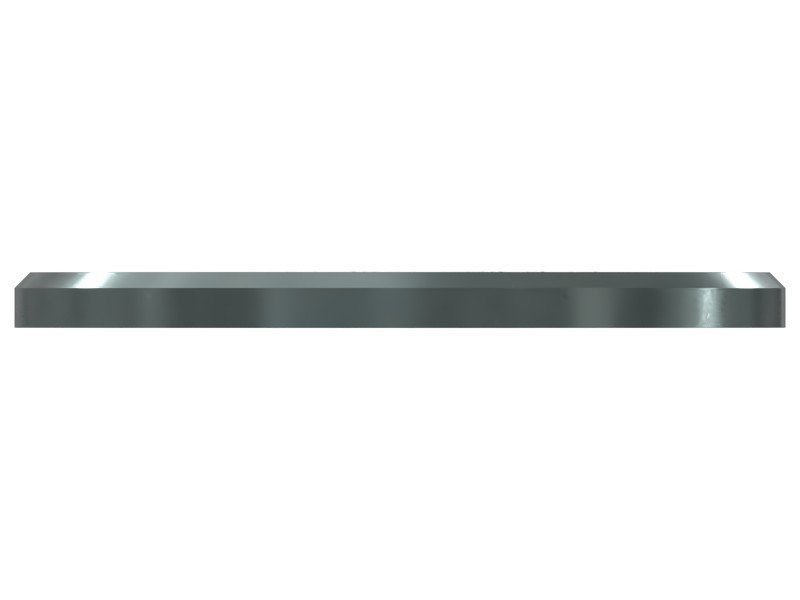

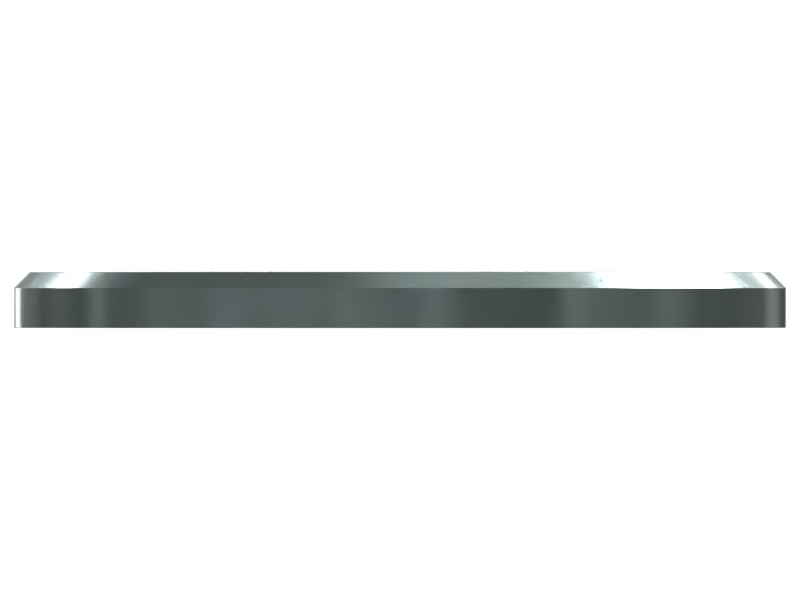

A washer is a thin, flat, ring-shaped piece of metal or plastic with a hole in the center, used to distribute the load of a fastener such as a bolt or screw. Washers can be used as shims to adjust the distance between two objects or surfaces. By placing washers between two objects, the distance can be increased as needed.
Features
- Built to exact specifications for durability, reliable performance, and outstanding productivity.
- Low coefficient of friction, meaning they reduce the amount of wear on machinery or other components.
- After annealing, copper ETP (electrolytic tough pitch) has a hardness of HV 36 to 50.
Applications
The injector tube washer is used to secure the injection pump tube with fasteners such as banjo bolts and nuts.
Specifications
| Gasket Type | Flat |
|---|---|
| Outside Diameter | 14 mm (0.55 in) |
| Inside Diameter | 10.2 mm (0.402 in) |
| Thickness | 1 mm (0.04 in) |
| Coating | None |
Compatible Equipment
- Compactors: CB2.7, CB2.9, CB2.5
- Excavators: 305 CR, 305
- Skid Steer Loaders: 232D3, 226D3, 249D3, 239D3, 236D3
