Description

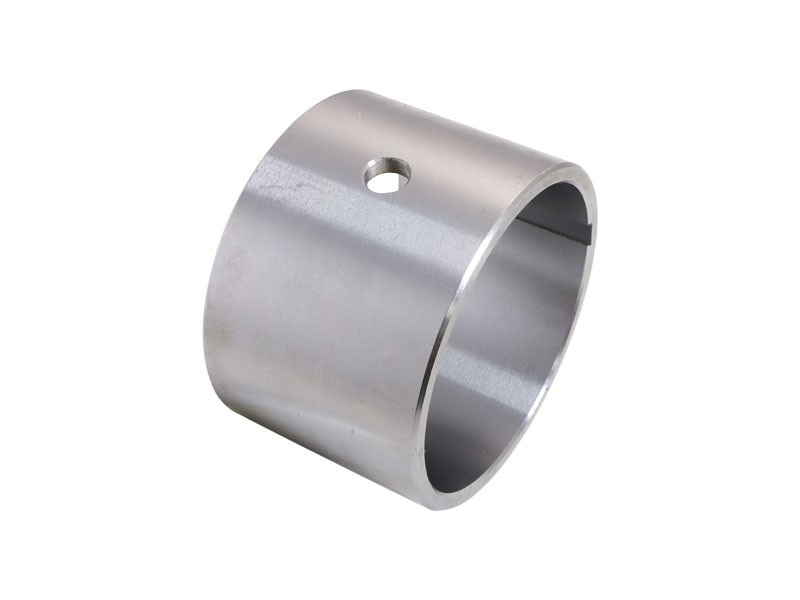

Straight sleeve bearings, sometimes called bushings, journal bearings, or plain bearings, facilitate movement between two components. They can serve multiple purposes at the same time: constraining motion, acting as a guide, providing support, and reducing friction. They support linear, rotary, and oscillating motion. Sleeve bearings are straight cylinders rather than tapered. Sleeve bearings are made from metal, plastic, or fiber-reinforced composite sleeves.
Features
- Built to exact specifications for durability, reliable performance, and outstanding productivity.
- Greatly reduces noise at low speeds.
- Provides mechanical stability and a low coefficient of friction.
- Withstands high radial and thrust loads.
Applications
The straight sleeve bearing is used to reduce friction between moving parts.
Specifications
| Material | Carbon Steel |
|---|---|
| Hole Size | 13 mm (0.51 in) |
| Inside Diameter | 101.9 mm (4.01 in) |
| Length | 76.2 mm (3 in) |
| Outside Diameter | 114.4 mm (4.5 in) |
| Weight | 1.24 kg (2.73 lb) |
Compatible Equipment
- Cold Planers: PL61, PL72
- Dozers: D6T, D6N, D6R II, D6T LGP, D6R III, D6R XL, D6K2, D6R, D6M, D4, D7E, D5H, D6R LGP
