Description

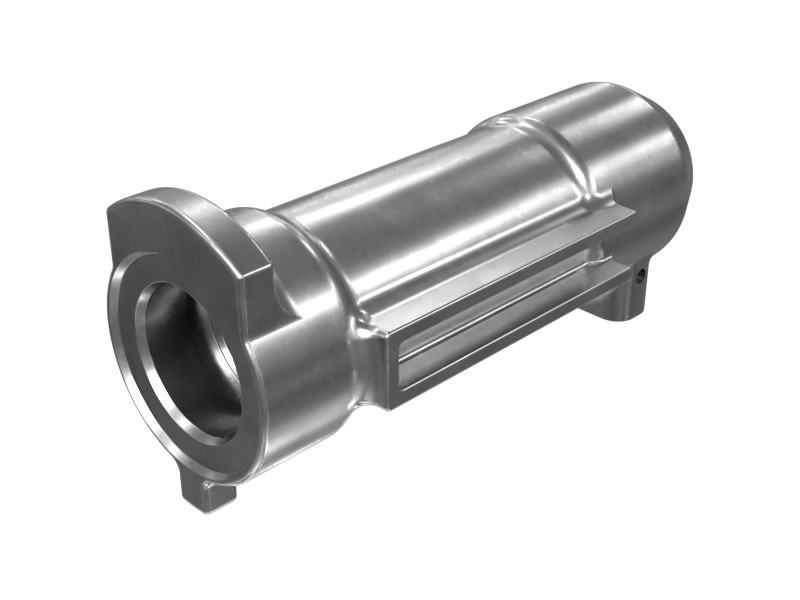

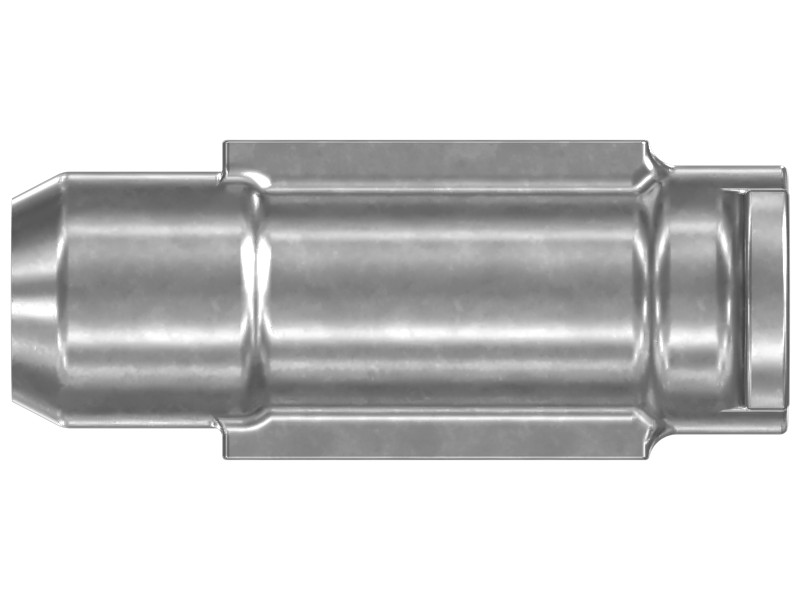

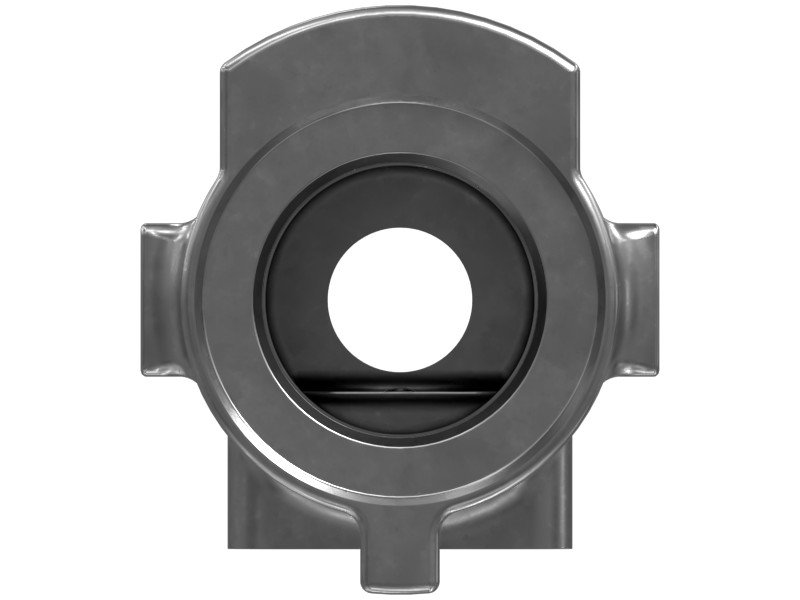

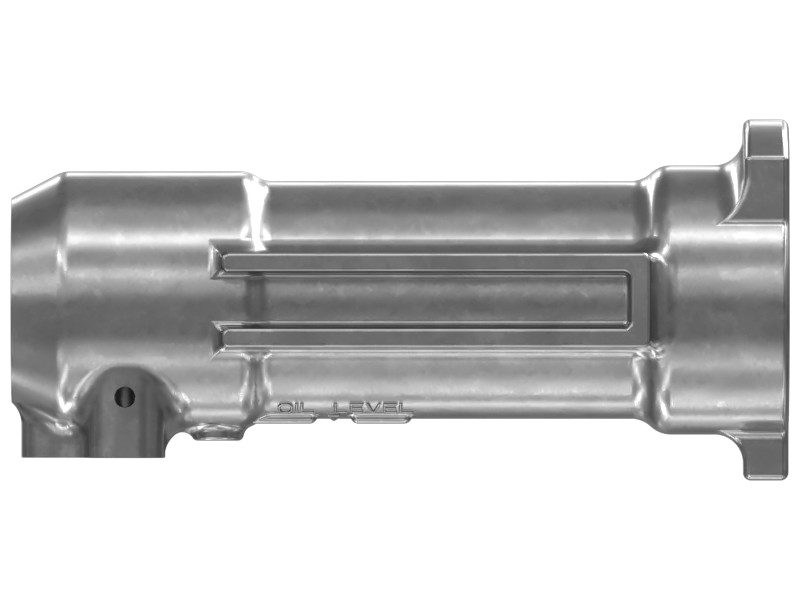

Part number 582-4631 provides the cylinder for the track adjuster and recoil system. The track adjustment and mechanical recoil system uses a large recoil spring and a grease-filled adjusting cylinder, allowing the idler to move back and forth to maintain proper track tension while absorbing undercarriage shock loads.
Features
- Cast iron cylinder
- Connection: SAE -20 STOR Port, 1-5/8-12
- Bore Diameter: 69.97 mm (2.755 in)
- Length: 321 mm (11.62 in)
- Thread Size: 5/8-18 (2X); M10x1.5 (2X)
Applications
Refer to your Operation and Maintenance Manual or contact MECHSC for more information.
Specifications
| Port Type | SAE -16 STOR Port (1-5/16-12) |
|---|---|
| Height | 132 mm (5.20 in) |
| Hole Diameter | 70 mm (2.76 in) |
| Width | 150 mm (5.90 in) |
| Length | 321 mm (11.64 in) |
| Track Tensioner Component Type | Cylinder |
| Thread Size | M10X1.5 (2X) mm (5/8-18 (2X) in) |
| Material | Cast Iron |
Compatible Equipment
- Dozers: D6N, D6M
