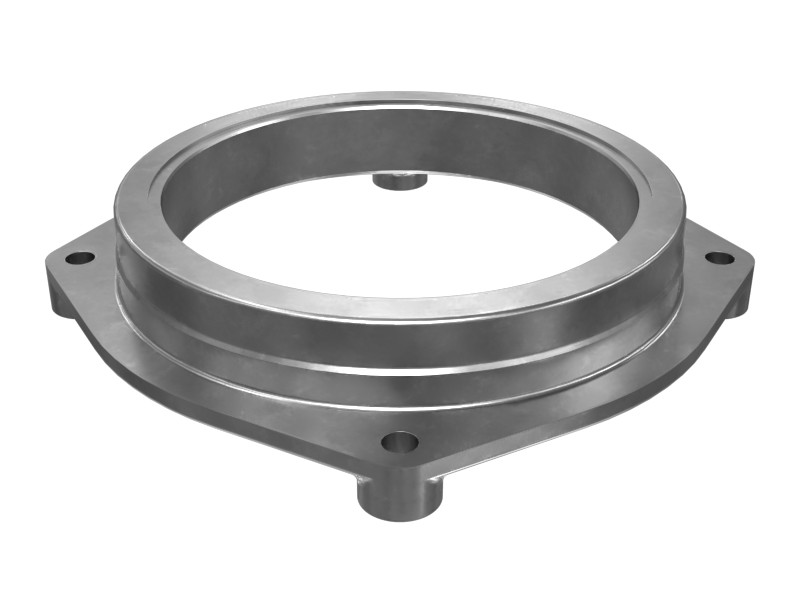

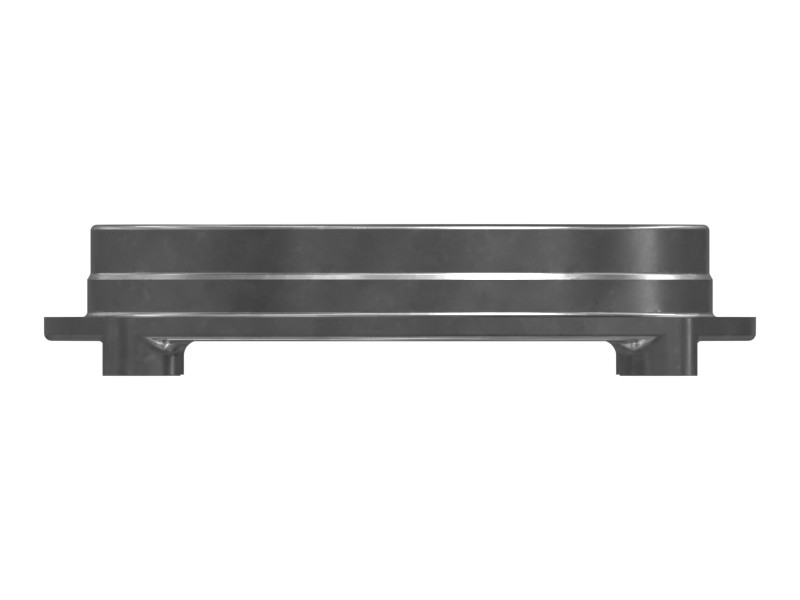

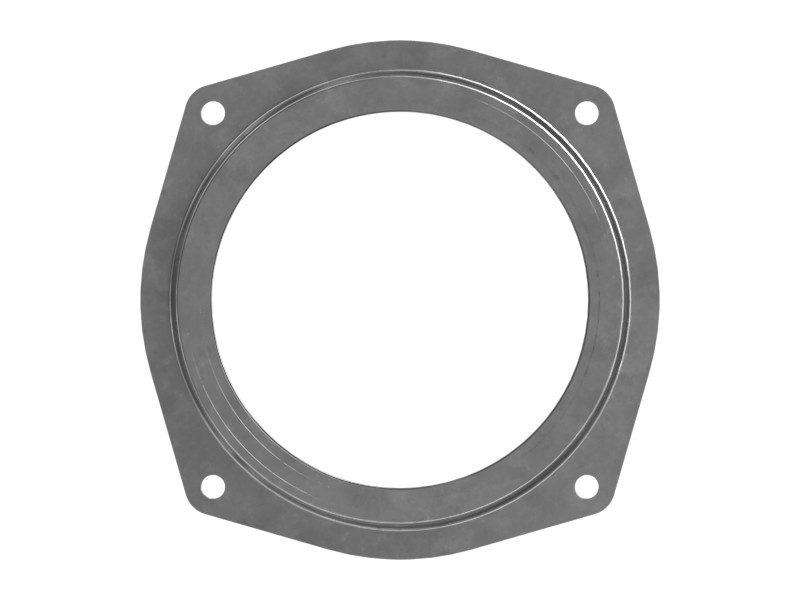

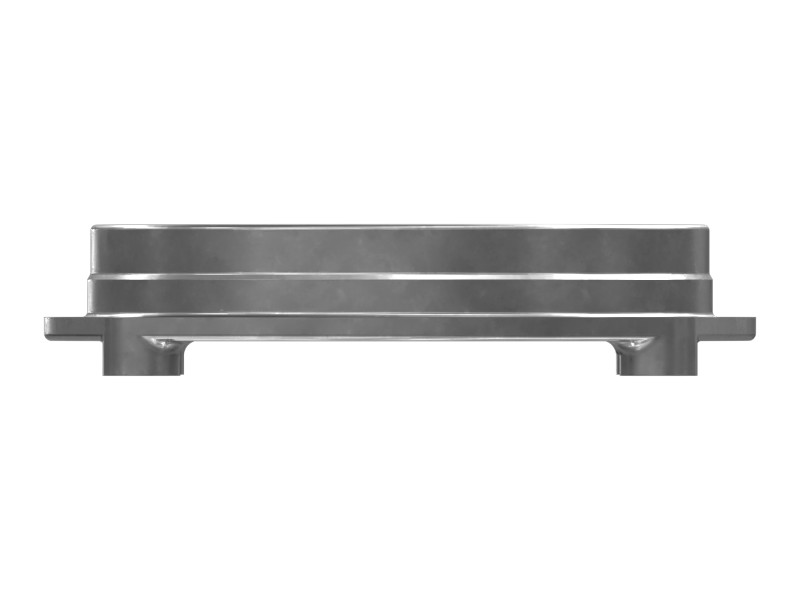

580-4016 Resilient Mount for Engine Trunnion
Cat® rubber resilient mount for engine trunnions
Description
The engine trunnion resilient mount uses resilient material (such as rubber) to absorb vibration and noise and to accommodate slight misalignment. The base is attached to the engine and the body is attached to the adapter. The resilient material is sandwiched between the engine mount and the adapter. Reduces wear on other components.
Features
- Equipped with styrene-butadiene rubber durometer.
- Manufactured to exact specifications for rugged durability, reliable performance and safety.
Applications
The engine trunnion resilient mount is used to reduce the transmission of vibration and noise.
Specifications
| Material | Carbon Steel |
|---|---|
| Flange Hole Spacing | 105.92 mm (4.17 in) |
| Height | 62 mm (2.44 in) |
| Inside Diameter | 213.36 mm (8.40 in) |
| Outside Diameter | 294 mm (11.57 in) |
Compatible Equipment
- Engines: C27, C32
- Dozers: D10, D10R, D10N, D11, D11T, D10T, D9R, D9L, D8L, D10T2, D11R
- Asphalt Pavers: AD63
- Skid Steer Loaders: 24
