Description

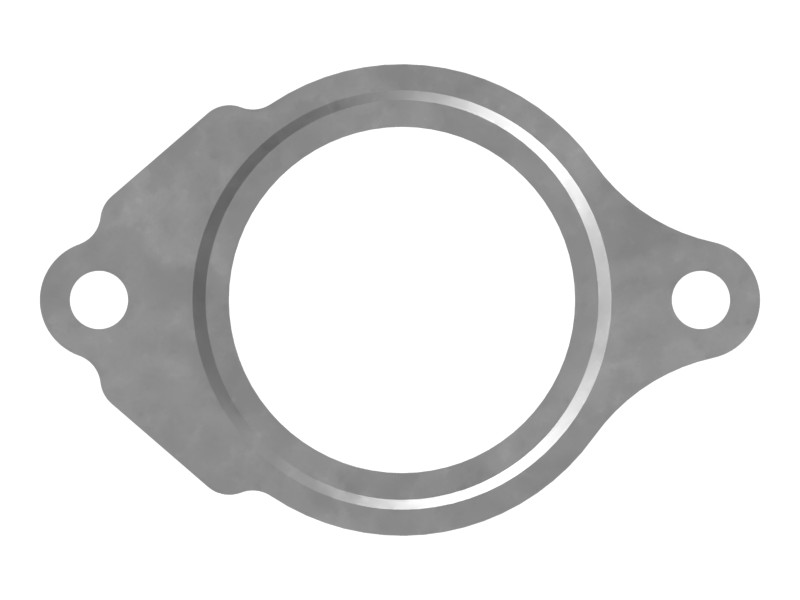

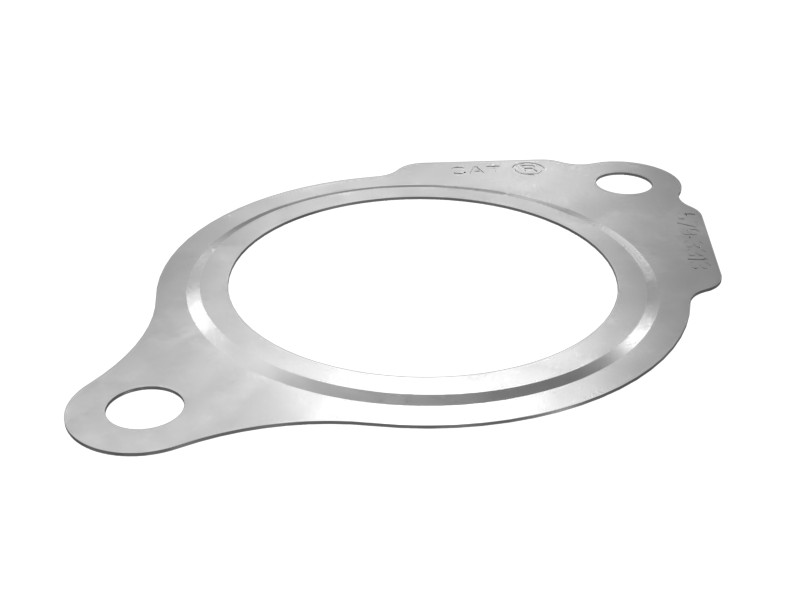

Flat gasket (e.g., part number 579-3313) uses compression between mating parts to achieve a tight, leak-free seal. Cat gaskets are designed with a well-matched combination of material and shape to provide the desired performance for your application.
Features
- Type: 2-Hole Flange
- Style: Flat
- Material: Stainless steel core with nitrile coating
Applications
Refer to your Operation and Maintenance Manual or contact MECHSC for more information.
Specifications
| Type | 2-Hole Flange |
|---|---|
| Style | Flat Plate |
| Material | Stainless Steel Core With Nitrile Coating |
| Inside Diameter | 53 mm (2.09 in) |
| Outside Diameter | 72 mm (2.83 in) |

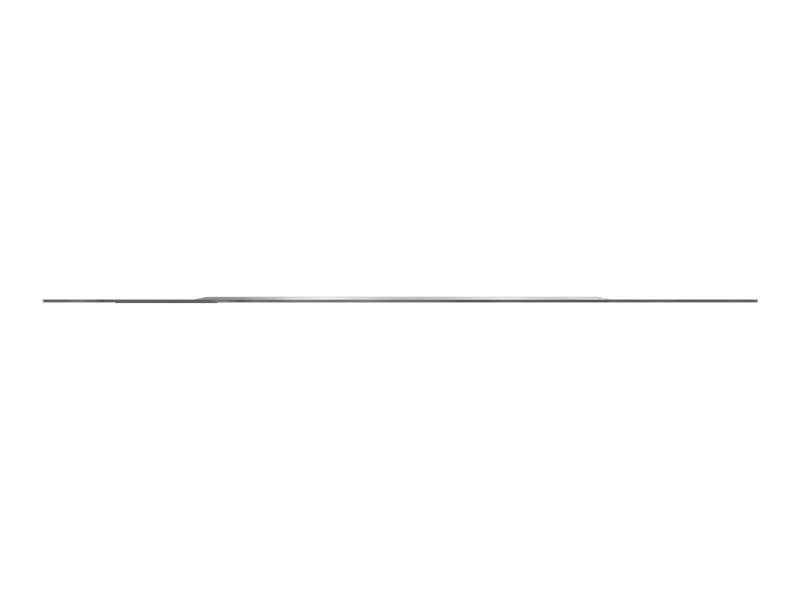

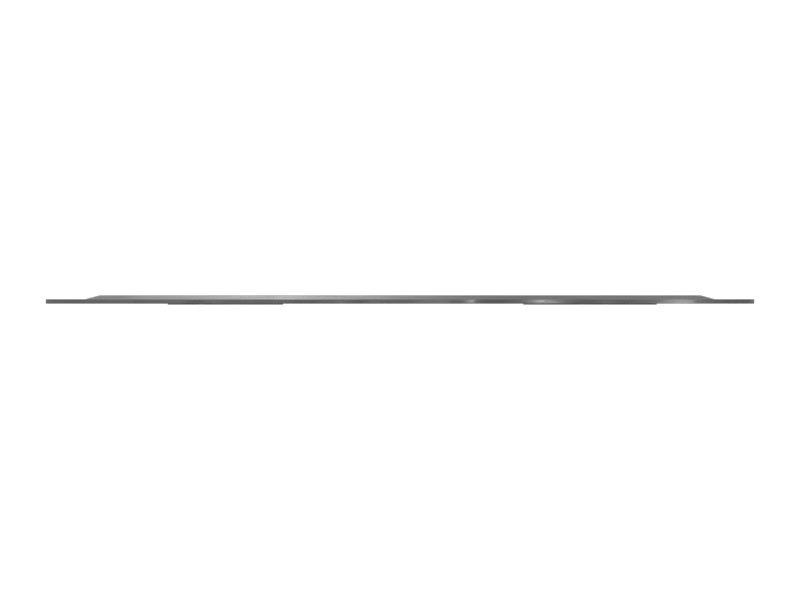

| Thickness | 0.4 mm (0.02 in) |
| Hole Size | 9 (2X) mm (0.35 (2X) in) |
| Flange Hole Spacing | 92 mm (3.62 in) |
Compatible Equipment
- Generator Sets: C9
- Track Loaders: 972, 973K
- Cold Planers: PL72
- Compactors: C9.3B, C-9
- Engines: C7
- Excavators: 3126, 336, 340, 336E L, 336E LN, 336F LN, 336F L, 336E, 336E LH, 336F, 345 GC, 350, 637K, 637G, 336E H, 3516B, 637E, 350MHPU, 336F L XE
- Skid Steer Loaders: 3126B
- Motor Graders: 14, 12H, 349 GC
- Dozers: D7, D6T, D7E, D6T LGP
- Wheel Loaders: RM400, 950H, 966, 966L, 972L, 966K
- Off-Highway Trucks: 725, 725C2
Additional information
| Machine Model | 12H, 14, 3126, 3126B, 336, 336E, 336E H, 336E L, 336E LH, 336E LN, 336F, 336F L, 336F L XE, 336F LN, 340, 345 GC, 349 GC, 350, 350MHPU, 3516B, 637E, 637G, 637K, 725, 725C2, 950H, 966, 966K, 966L, 972, 972L, 973K, C-9, C7, C9, C9.3B, D6T, D6T LGP, D7, D7E, PL72, RM400 |
|---|---|
| Equipment Type | Excavators, Wheel Loaders, Track Loaders, Skid Steer Loaders, Dozers, Motor Graders, Off-Highway Trucks, Compactors, Cold Planers, Engines, Generator Sets |
| Part Source | Genuine OEM |
