Description
Choosing Genuine Cat® filters to protect your revenue-generating equipment is always worth it.

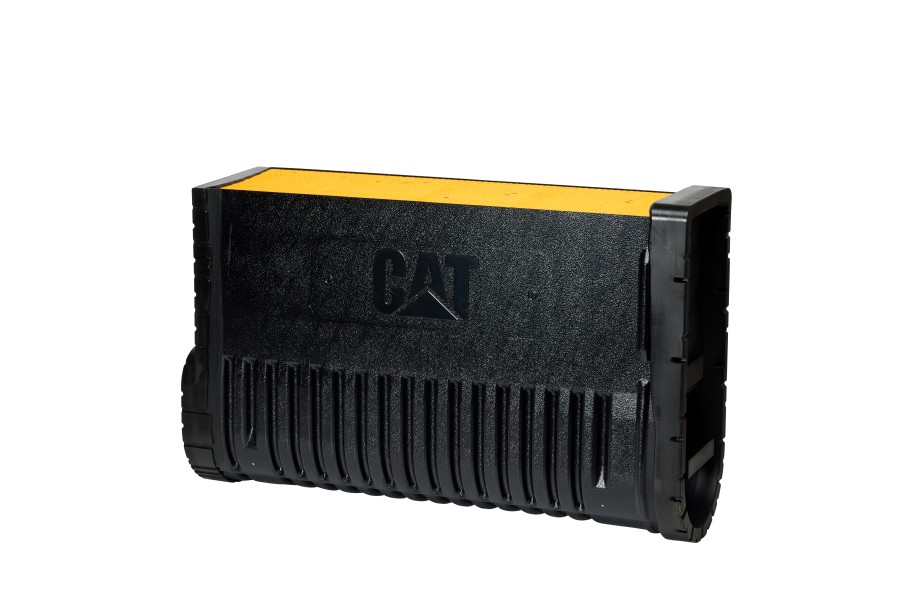

Cat Ultra High Efficiency (UHE) Engine Air Filters are designed to meet the need for higher levels of filtration and dirt-holding capacity. Cat UHE filters are built to carefully engineered specifications, delivering higher initial and overall efficiency for better engine protection. The UHE filter element features a unique filtration surface that extends filter life up to six times that of standard filters, reducing the amount of contaminants entering the engine to increase uptime and extend machine life.
These air filters are designed specifically for Cat equipment and are effective in any working environment, and are highly recommended when airborne contaminants contain a high concentration of very fine dust or soot. Fine particles immediately cake on the filter surface, increasing filtration and quickly providing protection for critical component systems.
Choosing Cat engine filters is the ideal way to protect your equipment, the environment and your bottom line.
Features
- Up to 6 times the service life of standard filters
- Extremely effective against fine dust and soot
- Reduces restriction and increases airflow, helping the engine "breathe" better
Specifications
| Material | Polyurethane Plastic |
|---|---|
| Type | Primary |
| Overall Height | 629 mm (24.764 in) |
| Overall Width | 194.9 mm (7.673 in) |
| Overall Depth | 403.8 mm (15.898 in) |
| Shape | Non-Round |
| Depth | 403.8 mm (15.898 in) |
| Height | 0 mm (0 in) |
| Width | 194.9 mm (7.673 in) |
| Media Type | UHE |
Compatible Equipment
- Track Loaders: 982, 972
- Cold Planers: PL87, PL83
- Compactors: C9.3B
- Engines: C13, C15, C18
- Dozers: D8T, D8
- Excavators: 6015B, 6015
- Wheel Loaders: 982M, 980M, 986K, 966 GC
- Off-Highway Trucks: 775G, 773
Additional information
| Machine Model | 6015, 6015B, 773, 775G, 966 GC, 972, 980M, 982, 982M, 986K, C13, C15, C18, C9.3B, D8, D8T, PL83, PL87 |
|---|---|
| Equipment Type | Excavators, Wheel Loaders, Track Loaders, Dozers, Off-Highway Trucks, Compactors, Cold Planers, Engines |
| Part Source | Genuine OEM |
