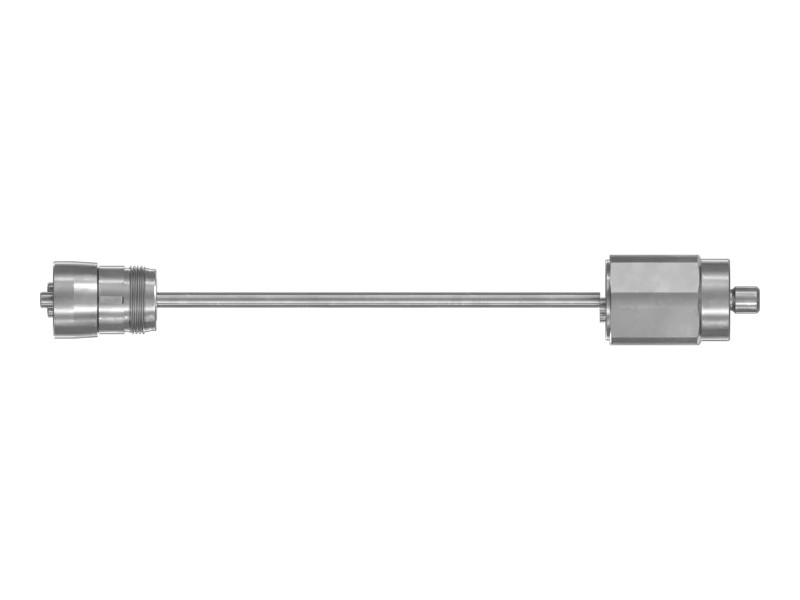

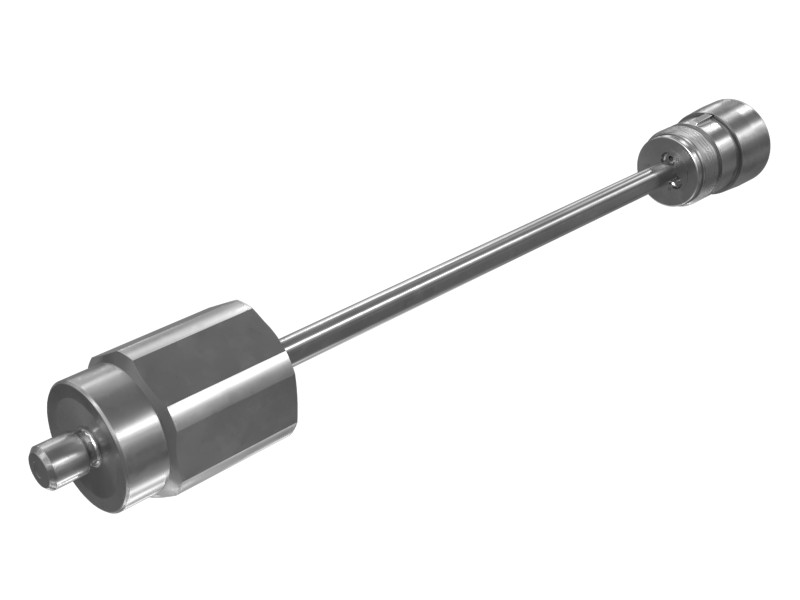

574-8679 Knock Sensor with HD10 Series Connector
Cat® Knock Sensor with HD10 Series Connector detects knock so the engine control unit (ECU) can optimize the engine, ensuring a durable connection
Description
Cat knock sensors are most commonly used to monitor combustion levels in the piston chambers of natural gas engines. This information can be used to fine-tune the spark and run the engine at efficiency closest to peak, or to shut down the engine to avoid severe failure.
Features
- Voltage: 8 VDC
- Connector Type: 3-Pin HD10 Series
- Male Thread Size: 3/8-16
- Vibration frequency between 100 Hz and 10000 Hz
- ROHS compliant
Applications
For use on natural gas engines. Refer to your Operation and Maintenance Manual or contact MECHSC for more information.
Specifications
| Connector Type | 3-Pin MS5015 |
|---|---|
| Voltage | 13 VDC Volts |
| Lead Length | 160 mm (6.3 in) |
| Hex Size | 31.75 mm (1.25 in) |
| Thread Size | 3/8-16 in |
Compatible Equipment
- Generator Sets: G3516C, G3516, 3512B
- Excavators: 3516B, 3512C
Additional information
| Machine Model | |
|---|---|
| Equipment Type | |
| Part Source | Genuine OEM |
