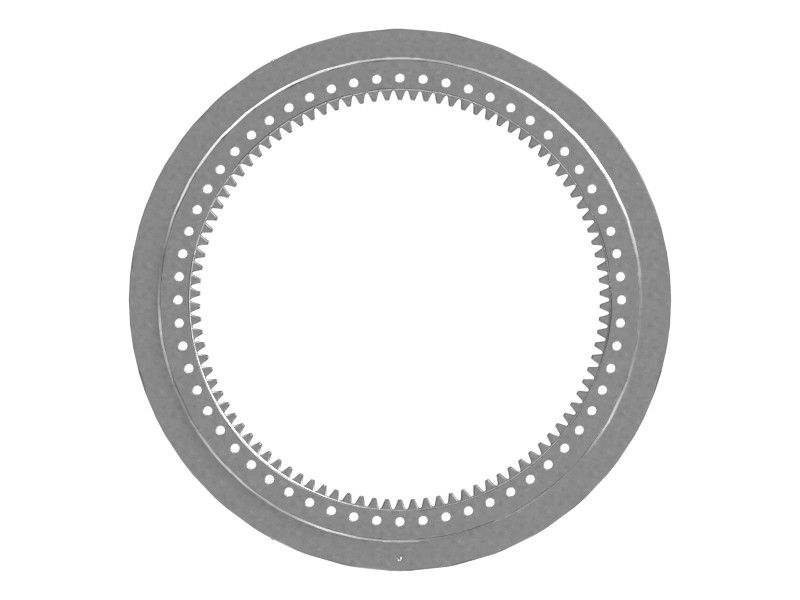

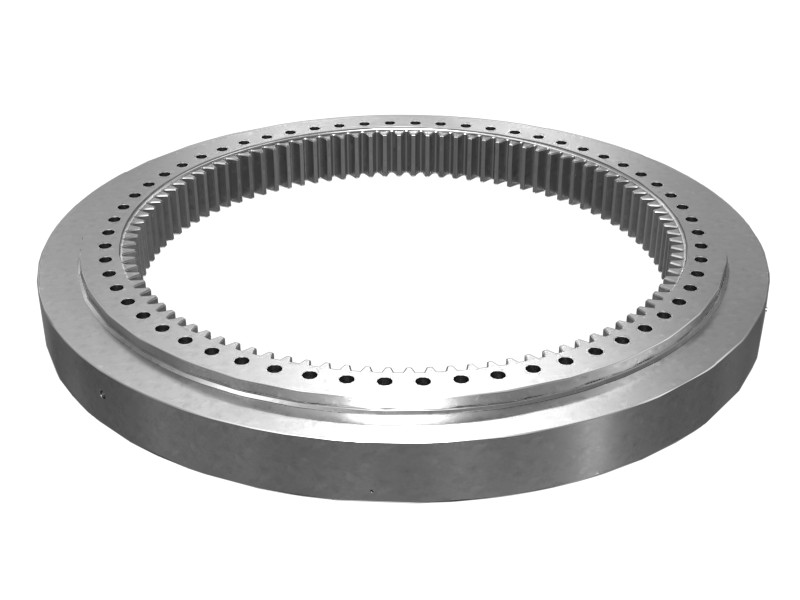

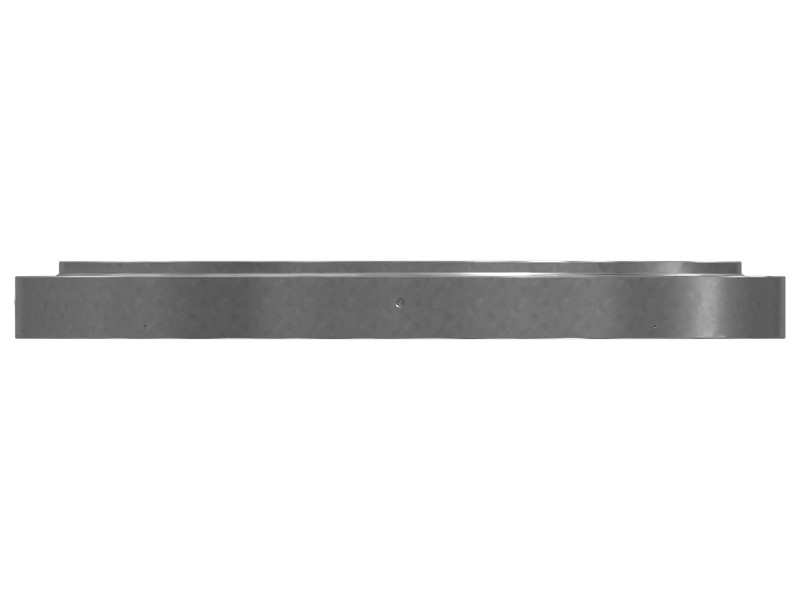

574-8203 Swing Gear and Bearing Assembly
Cat® 98 Tooth Swing Gear and Bearing Assembly, Pitch Circle Diameter: 1372 mm
Description
Part number 574-8203 provides the swing gear and bearing for the swing drive system that supports the upper frame on certain excavator models and transmits torque between the upper frame and the cab housing.
Features
- The swing gear and bearing assembly includes the ring gear, bearing, adapter, cover, and seal
- Number of Internal Spur Gear Teeth: 98
- Spur Gear Pitch Diameter: 1372 mm (54.016 in)
- Inside Diameter: 1344.252 mm (52.923 in)
- Outside Diameter: 1820 mm (71.654 in)
- Length: 182 mm (7.165 in)
- Weight: 1142 kg (2517.7 lb)
Applications
Refer to your Operation and Maintenance Manual or contact MECHSC for more information.
Specifications
| Color | Medium Gloss Black |
|---|---|
| Inside Diameter | 1344.25 mm (52.92 in) |
| Length | 182 mm (7.17 in) |
| Material | Grease (Lanolin, Silicone) Fluid |
| Outside Diameter | 1820 mm (71.65 in) |
Compatible Equipment
- Excavators: 374
Additional information
| Machine Model | |
|---|---|
| Equipment Type | |
| Part Source | Genuine OEM |
