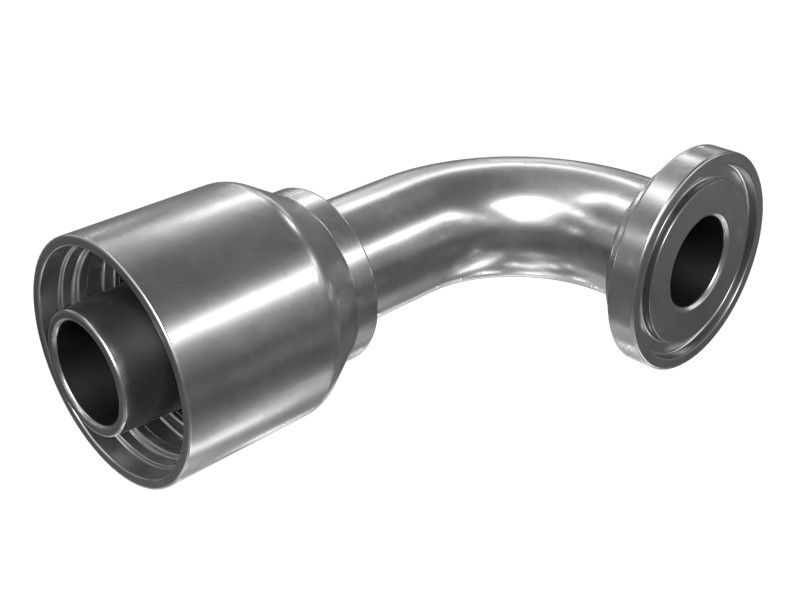

568-1473 Fixed Coupling
Cat® XN Spiral Permanent Coupling – 90 Degree, Code 61
Fitment data not listed — send us your machine model or serial number to confirm.
Description
CODE 61 flange head couplings meet or exceed SAE J518 CODE 61 requirements. CODE 61 flange heads are rated for maximum working pressures of 3000 to 5000 psi, depending on size
Specifications
| Connection Standard | Code 61 Flange-SAE J518-1 |
|---|---|
| Hose Inside Diameter | 31.75 mm (1.25 in) |
| Bend Angle | 90 Degrees |
| Connection Nominal Size | 24 |
| Hose Fitting Category | XN4 |
| Hose Warning | Improper selection of hose and coupling combinations will void the warranty and may result in serious personal injury or death, property damage, or failure of components and machine systems. Cat® hose assembly products are designed and tested as a system to provide reliable connections that maximize hydraulic system safety and reliability. In addition, properly maintained, appropriate Caterpillar tooling is recommended to ensure hoses are crimped to technical specifications. Using Caterpillar hose with another manufacturer's couplings, or Caterpillar couplings with another manufacturer's hose, may result in unreliable, unsafe, or poorly performing hose assemblies. Caterpillar does not recommend or authorize this practice. For more information, refer to SAE J1273 Section 6.3 and ISO 17165-2 Section 6.3. |
| Fitting | Permanent |
| Coating | Zinc Plated |
| Shape | 90 Degrees |
| Connector Type | -24 CODE 61 Flange |
| Drop Length | 67 mm (2.64 in) |
| Length | 145 mm (5.71 in) |
| Cutoff Factor | 87 mm (3.43 in) |
| Recommended Hose Size | 31.8 mm (1.25 in) |
| Compatible | SAE 100R12 |
| Seal Type | NBR 4J-0524, FKM 234-3544 |
| Description | Permanent Coupling 20XN4 |
| Application | Permanent coupling for use with hydraulic hose. Contact MECHSC for more information |
Additional information
| Part Source | Genuine OEM |
|---|
