Description

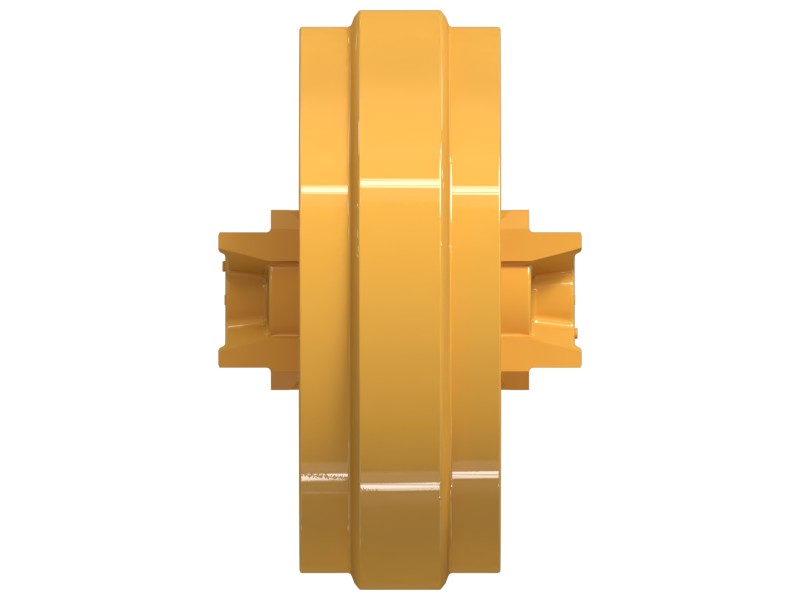

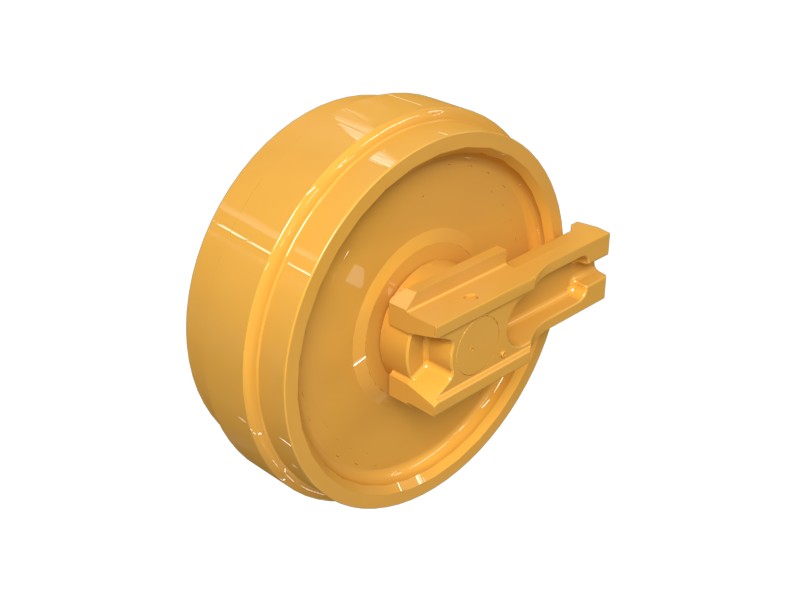

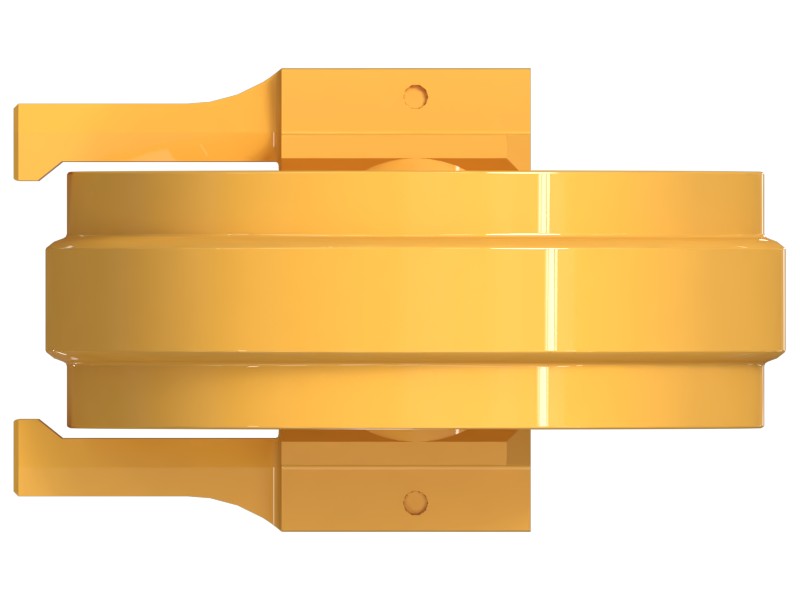

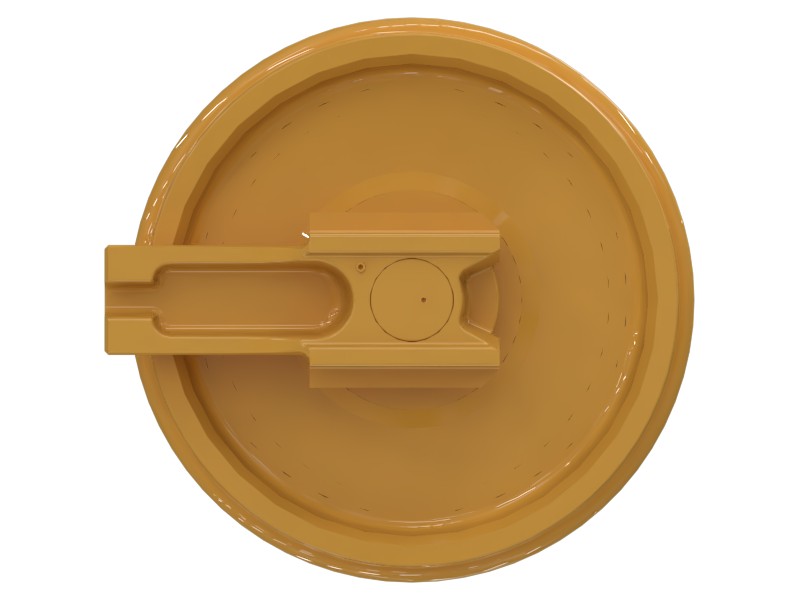

Idlers (e.g., part 567-7852) guide the track into and out of the track rollers. They intermittently support the weight of the machine and provide a way to control track slack and tension.
Features
- Center Flange Front Idler
- Heavy duty track is the ideal choice for the most severe application demands. Even in the harshest conditions, it ensures wet bushing rotation, pin and bushing retention is industry-leading, and the added link weight helps prevent cracking. Components are made of premium steel and hardened for exceptional hardness and wear life, and they work and wear as a complete system to maximize uptime and productivity.
Applications
Refer to your Operation and Maintenance Manual or contact MECHSC for more information.
Specifications
| Material | Sealants / Adhesives Adhesive |
|---|---|
| Machine Side | Interchangeable |
| Tread Type | Conventional Tread |
| Shaft Diameter | 115 mm (4.53 in) |
| Flange Diameter | 775 mm (30.50 in) |
| Flange Type | Center Flange |
| Idler Rim Width | 268 mm (10.551 in) |
| Center Flange Width | 107.3 mm (4.224 in) |
| Shaft Outside Diameter | 115 mm (4.528 in) |
| Bearing Mounting Length | 420 mm (16.535 in) |
| Mounting Cap Bolt Thread Size | M24 |
| Center Flange Diameter | 775 mm (30.512 in) |
| Shaft Length | 468.2 mm (18.433 in) |
| Shaft Protrusion Length | 100.26 mm (3.947 in) |
| Application | Standard Application |
| Undercarriage System | HD |
| Tread Diameter | 730 mm (28.74 in) |
Compatible Equipment
- Excavators: 374, 365C L, 365C, 374F L, 385C, 374D L, 374F
