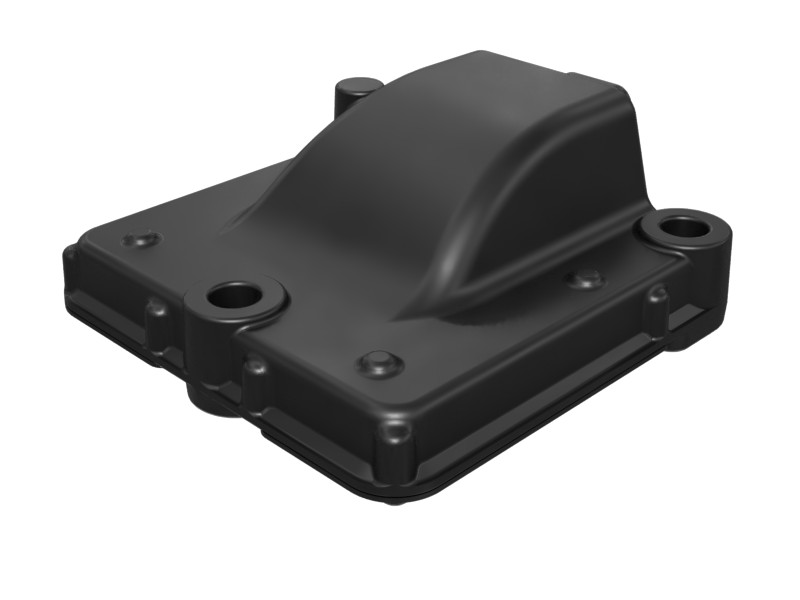

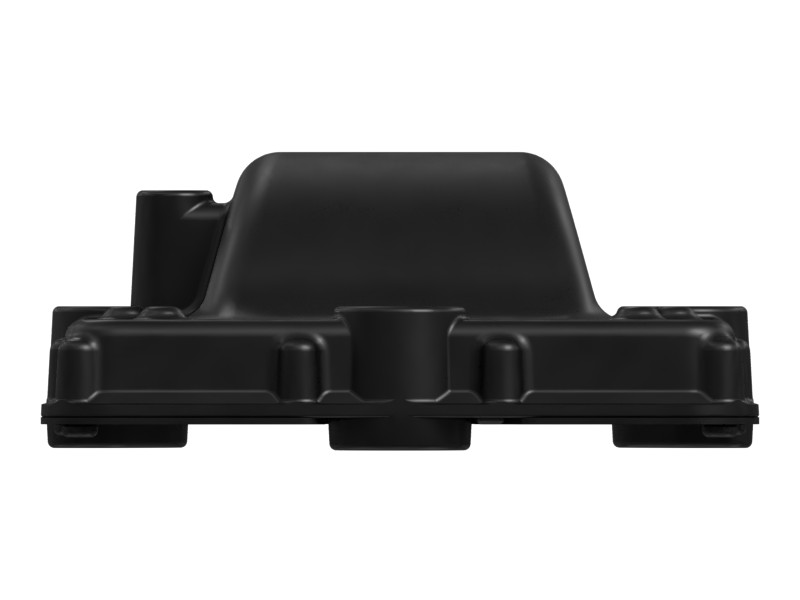

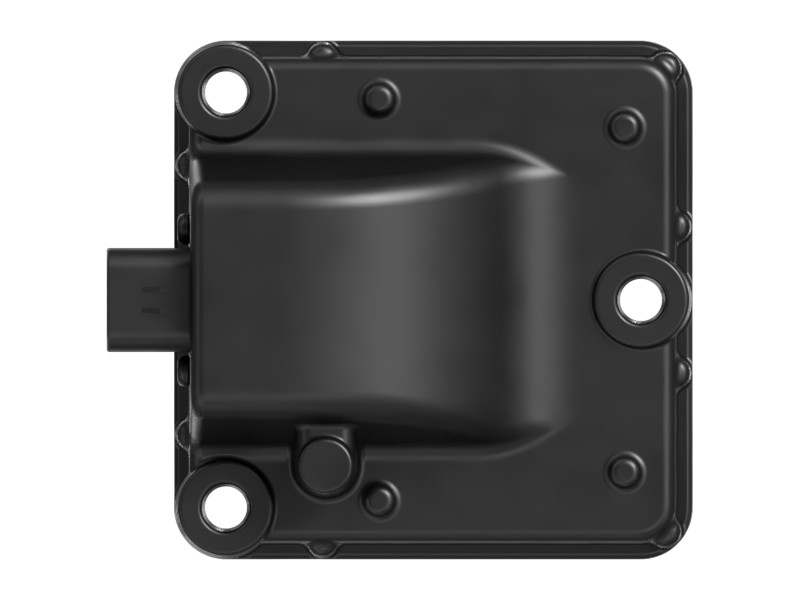

563-0598 Inertial Measurement Unit Position Sensor
The Cat® Front Boom Short Boom Position Sensor accurately detects position for precise control adjustments during machine operation
Description
The position sensor group is for the boom and stick of the grade control system on Cat machines.
Features
- Inertial Measurement Unit (IMU)
- Output Type: Pulse Width Modulated (PWM)
- Voltage: 7-32 V
- Connector Type: 6-Pin AMPSEAL 16
- Measures lateral acceleration, roll angle, roll rate, longitudinal acceleration, pitch angle, pitch rate, vertical acceleration, and sideslip rate
Applications
Cat sensors are application-specific sensors. Refer to your Operation and Maintenance Manual or contact MECHSC for more information.
Specifications
| Material | Alloy Aluminum |
|---|---|
| Connector Type | 6-Pin AMPSEAL 16 |
| Voltage | 7-32 V Volts |
| Length | 110 mm (4.33 in) |
| Width | 46 mm (1.81 in) |
| Height | 110 mm (4.33 in) |
Compatible Equipment
- Motor Graders: 140K, 160K, 120H, 12K, 140H, 12H, 140 GC, 120
- Track Loaders: 972
- Wheel Excavators: M320, M315
- Excavators: 313, 374, 313 GC, 325, 340, 336, 323, 336 GC, 326, 320, 320 GC, 315, 352, 349, 335, 315 GC, 395, 120 GC, 350, 320D L, 330, 320D
- Wheel Loaders: M314, 966, 950
- Off-Highway Trucks: 785, 735, 725, 730, 793, 789, 773
Additional information
| Machine Model | 120, 120 GC, 120H, 12H, 12K, 140 GC, 140H, 140K, 160K, 313, 313 GC, 315, 315 GC, 320, 320 GC, 320D, 320D L, 323, 325, 326, 330, 335, 336, 336 GC, 340, 349, 350, 352, 374, 395, 725, 730, 735, 773, 785, 789, 793, 950, 966, 972, M314, M315, M320 |
|---|---|
| Equipment Type | Excavators, Wheel Excavators, Wheel Loaders, Track Loaders, Motor Graders, Off-Highway Trucks |
| Part Source | Genuine OEM |
