Description

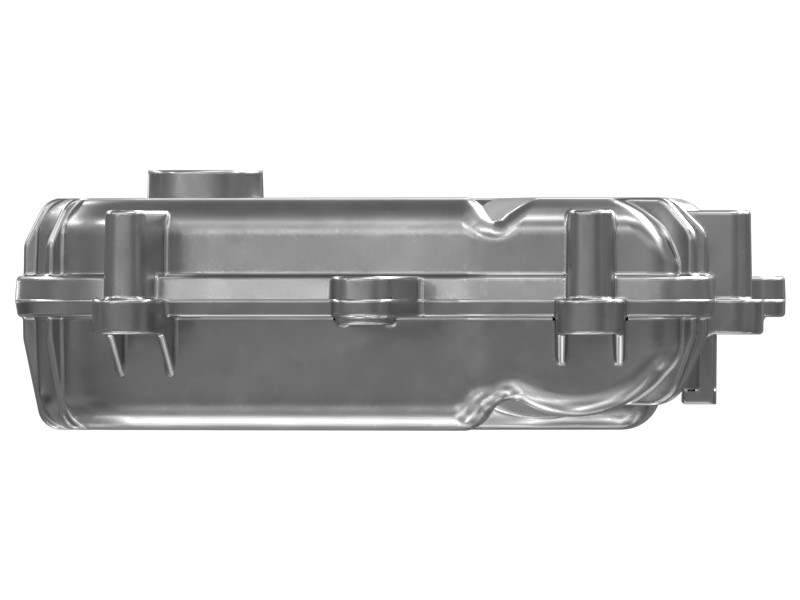

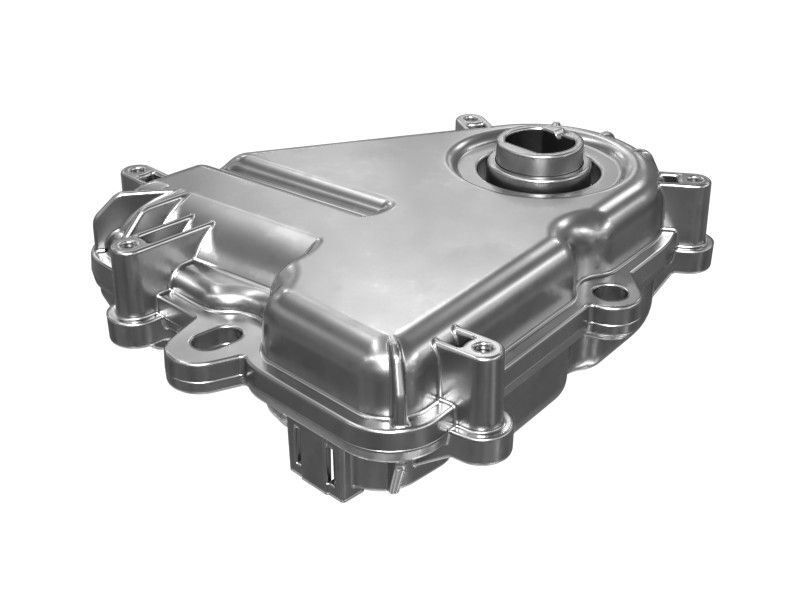

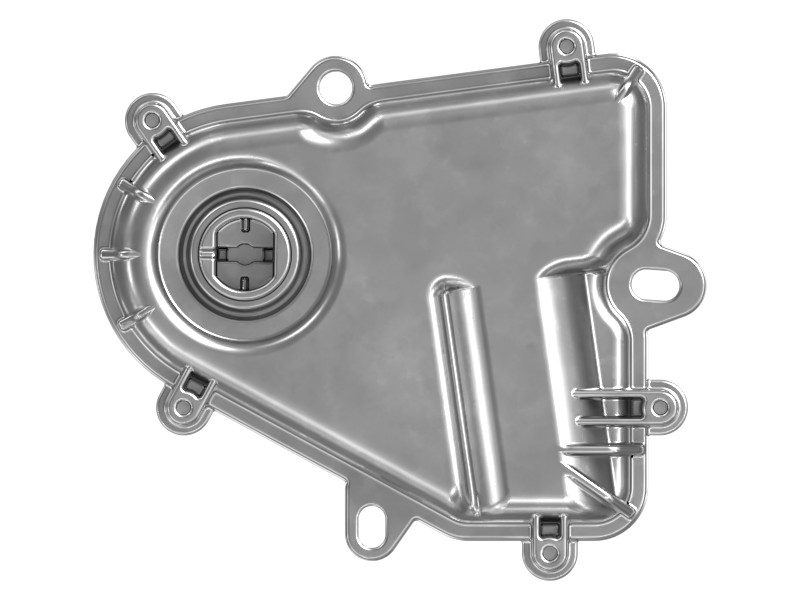

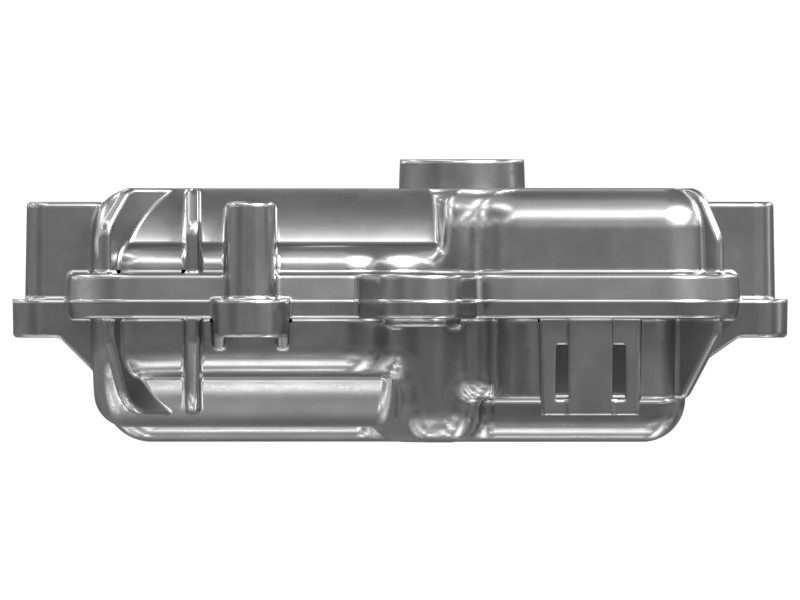

The Cat actuator electronically opens and closes valves in the HVAC system.
Features
- Actuator group with integrated 4-pin connector
- Operating temperature -40°C to +85°C
- Slotted mounting holes for easy installation
- Voltage: 9 V
Applications
Refer to your Operation and Maintenance Manual or contact MECHSC for more information.
Specifications
| Material | Polysulfone |
|---|---|
| Voltage | 9 Volts |
| Overall Length | 100.1 mm (3.94 in) |
| Overall Width | 91.6 mm (3.61 in) |
| Overall Height | 33.6 mm (1.32 in) |
Compatible Equipment
- Track Loaders: 953, 963K, 992, 953K, 972, 973K, 990K, 953D, 982, 826K, 963, 963D, 834H, 824G, 994K, 826H, 993, 995
- Cold Planers: PL72, PL87, PL83, PL61
- Compactors: 834K, 824K, 816, 815, CS12 GC, CP12 GC, 814, CS56B, CS78B, CP56B, CP54B, CS54B, CS74B, CS68B, 825K, CP11 GC, CS11, CS12, CS79B, CB10, CS-54B, CS64B
- Excavators: 307.5, 305, 637K, 305 CR, 6020B, 637G, 621G, 3508B, 6060, 303.5CR, 303CR, 302.7CR, 301.6, 301.8, 6040, 621K, 621H, 657G
- Asphalt Pavers: AD63
- Skid Steer Loaders: 24, 299D3 XE, 272D3 XE, 239D3, 249D3, 242D3, 246D3, 236D3, 289D3, 246C, 232D3, 226D3, 262C, 279C, 246D, 262D, 236D, 262D3, 232D, 272D3, 259D3
- Motor Graders: 120, 14
- Wheel Excavators: MD6200, MD6250, MD6310
- Dozers: D6N, D11, D6T, D10T2, D8T, D11T, D6T LGP, D8R, D4, D6K2, D9T, D7E, D7, D8, D6R, D6R LGP, D6R XL, D10, D6R II
- Compact Track Loaders: 299D3, 279D3
- Mini Excavators: 306.5, 308, 306, 308.5, 310, 302CR
- Wheel Loaders: 988K, 966K, 966, 938M, 924K, 938K, 926M, R1700 XE, 836, 962L, 950L, 972L, 966L, 980L, 980, 988H, RM400, 988G, 972G, 962G, 950G, 980G, 950, 950 GC, R1700K, 834
- Off-Highway Trucks: 745, 740 GC, 730, 740, 793F, 797F, 775G, 770G, 772G, 725C2, 794 AC, 796 AC, 735, 725, 798 AC, 793, 745C, 789, 785, 740B, 773, 777
