Description

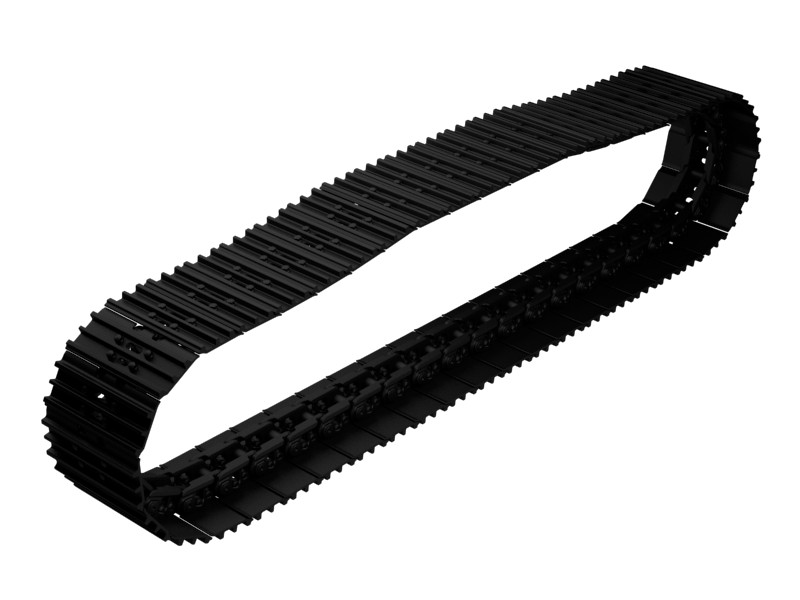

The track assembly is formed by bolting track shoes and fasteners to the link group.
Features
- Number of Track Links: 45
- Bolt Size: MJ24
- Track Shoe Type: Triple Grouser, Grooved
- Track Width: 600 mm (23.62 in)
- General Duty tracks are an affordable option for machines nearing retirement or with low utilization. The initial price is lower, and they can be used until they fail. All Cat undercarriage is backed by the Undercarriage Guarantee. It is manufactured by Caterpillar, hardened, and quality tested to ensure it meets the productivity and performance needs of the workplace
- Triple grouser track shoes have less penetration and traction than single grouser track shoes, but have better steering ability. Triple grouser track shoes are standard on track loaders and excavators because they have lower turning resistance and better maneuverability
Specifications
| Undercarriage System | HD |
|---|---|
| Number of Grousers | Triple |
| Abrasion Resistant Material | 0 ARM |
| Shear | No |
| Main Bolt Thread | M24 |
| Master Link Type | Slip Fit Master |
| Track Shoe Type | Not Applicable |
| Grease Lubricated Track Type | GLT |
| Track Reinforcement System | Not Applicable |
| Seal and Lubrication Type | SALT |
| Track Bolt Thread | M24 |
| Offset | Not Applicable |
| Track Shoe Width | 600 mm (23.622 in) |
| Pin Retention System | Press Fit |
| Number of Links | 45 |
| Rotating Bushing Track | No RBT |
| Hole Type | Slotted |
| Number of Track Links | 45 |
| Wear Sensor | No |
| Track Pitch | 215.9 mm (8.5 in) |
| Track Shoe Hole Type | Slotted |
| Bushing Inside Diameter | 68 mm (2.677 in) |
| Link Inside Spacing at Sprocket | 90 mm (3.543 in) |
Compatible Equipment
- Excavators: 336E
Additional information
| Machine Model | |
|---|---|
| Equipment Type | |
| Part Source | Genuine OEM |
