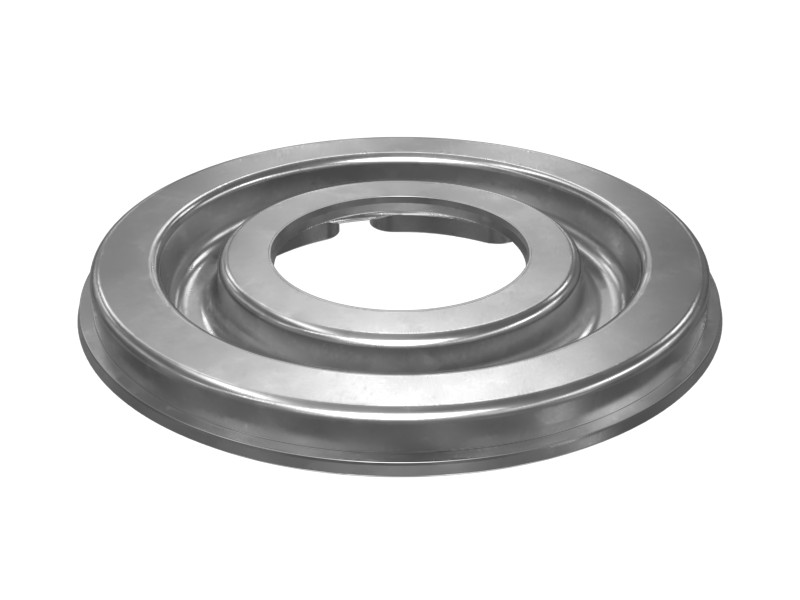

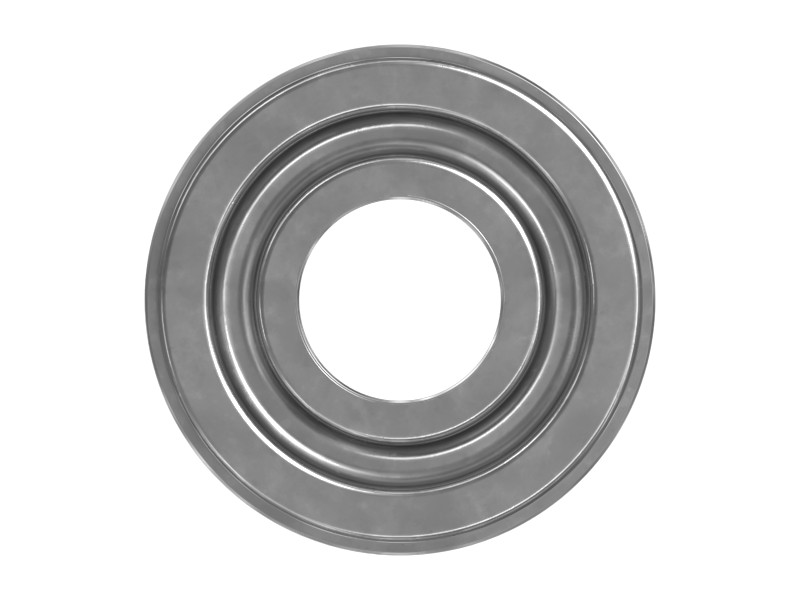

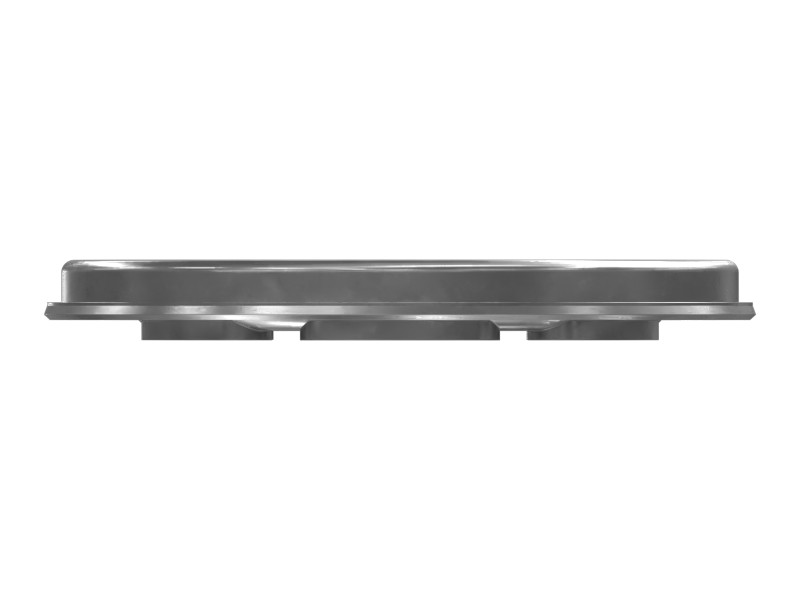

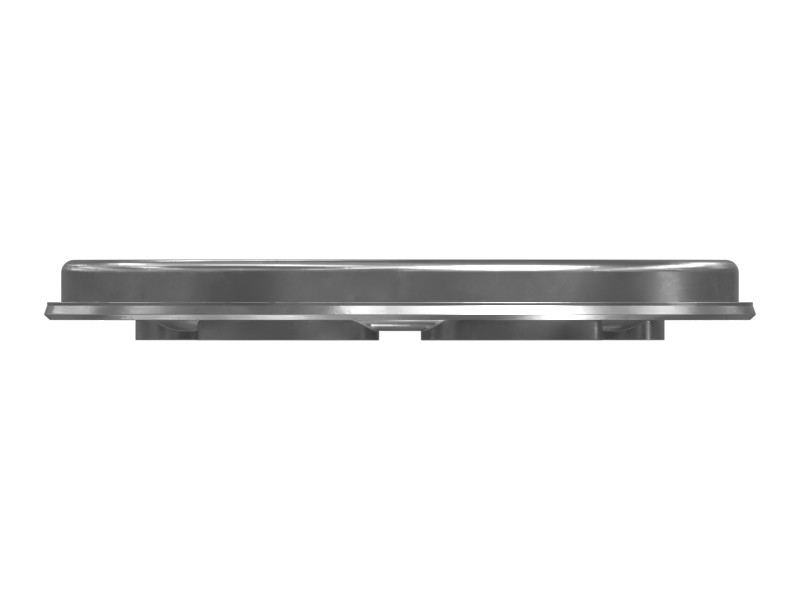

558-2829 134.83 mm OD Airtight Clutch Piston
Cat® Airtight Clutch Piston Manages Power Transfer, Ensuring Smooth Shifting and Improved Efficiency
Description
The Cat clutch piston is a key component in the planetary gear group that powers the rugged Cat transmission, converting engine power into the precise combination of speed and force each machine requires.
Features
- Material: Steel
- Thickness: 15.4 mm (0.6 in)
- Inside Diameter: 53.9 mm (2.12 in)
- Outside Diameter: 133.85 mm (5.26 in)
- OEM direct replacement
Applications
Refer to your Operation and Maintenance Manual or contact MECHSC for more information.
Specifications
| Outside Diameter | 133.85 mm (5.26 in) |
|---|---|
| Material | Carbon Steel |
| Material Description | Steel |
| Thickness | 15.4 mm (0.06 in) |
| Inside Diameter | 53.9 mm (2.12 in) |
Compatible Equipment
- Excavators: 434F2, 416F2, 428F, 416E, 432
