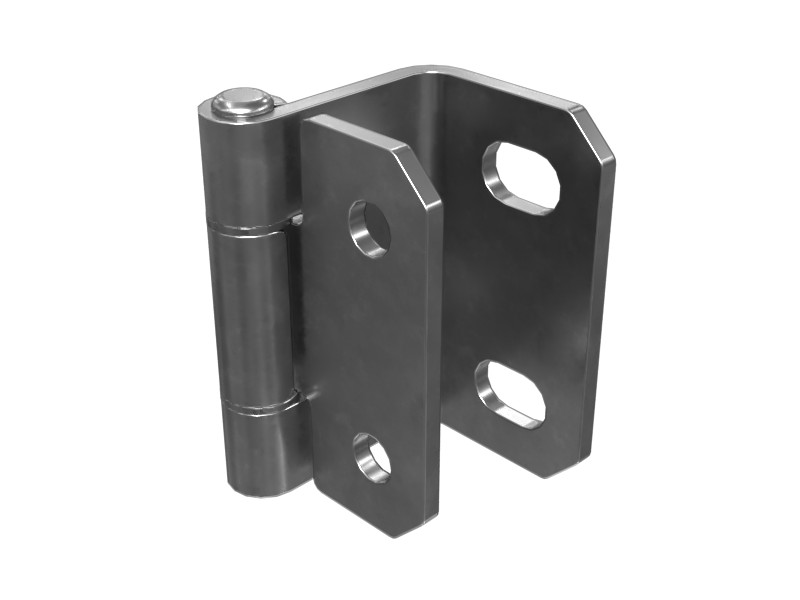

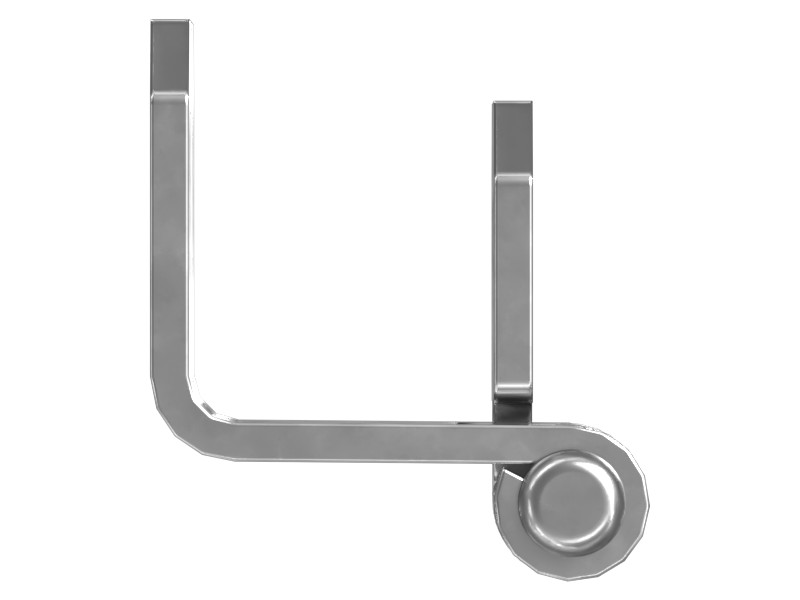

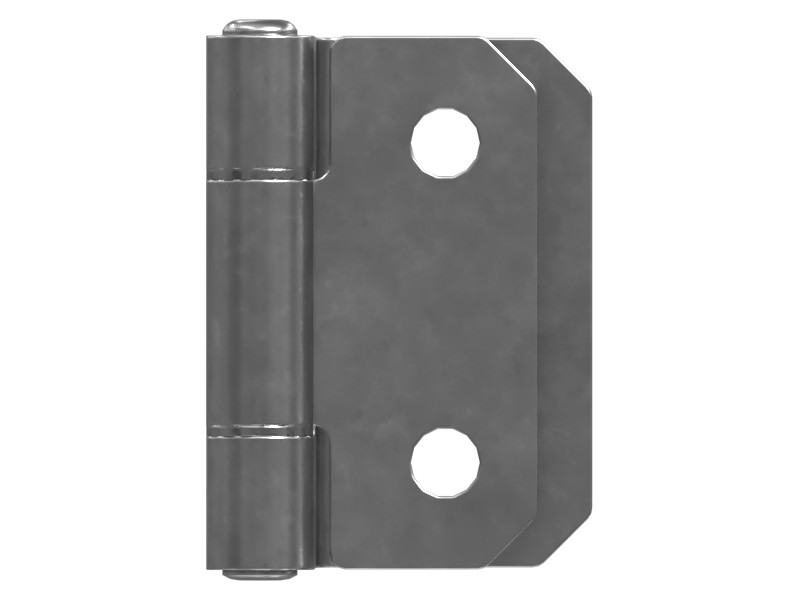

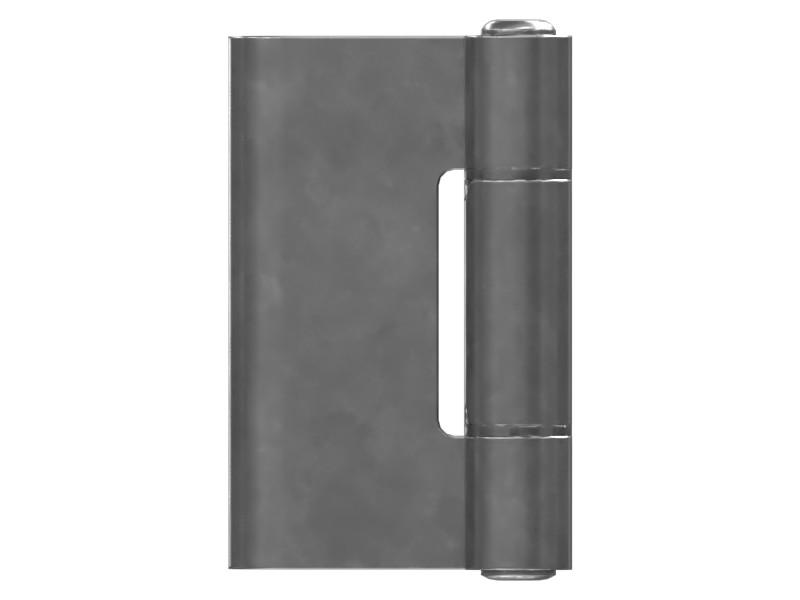

Description
A door hinge (such as 556-6590) is used to secure the door to the frame and also serves as the pivot for opening and closing the door. A hinge is a fastener part used to secure doors, windows and access panels while facilitating access.
Features
- Steel hinge
- Mounting Hole Spacing: 60 mm (2.36 in)
- Length: 100 mm (3.94 in)
- Width: 65 mm (2.54 in)
- Height: 73 mm (2.86 in)
Applications
Refer to your Operation and Maintenance Manual or contact MECHSC for more information.
Specifications
| Height | 73 mm (2.86 in) |
|---|---|
| Hole Size | 13 (2X), 16 (2X) mm (0.51 (2X), 0.61 (2X) in) |
| Length | 100 mm (3.94 in) |
| Pin Diameter | 10 mm |
| Width | 65 mm (2.54 in) |
Compatible Equipment
- Motor Graders: 349 GC
- Excavators: 374, 352, 350, 336, 340, 395, 355, 3101, 349, 335, 350MHPU
