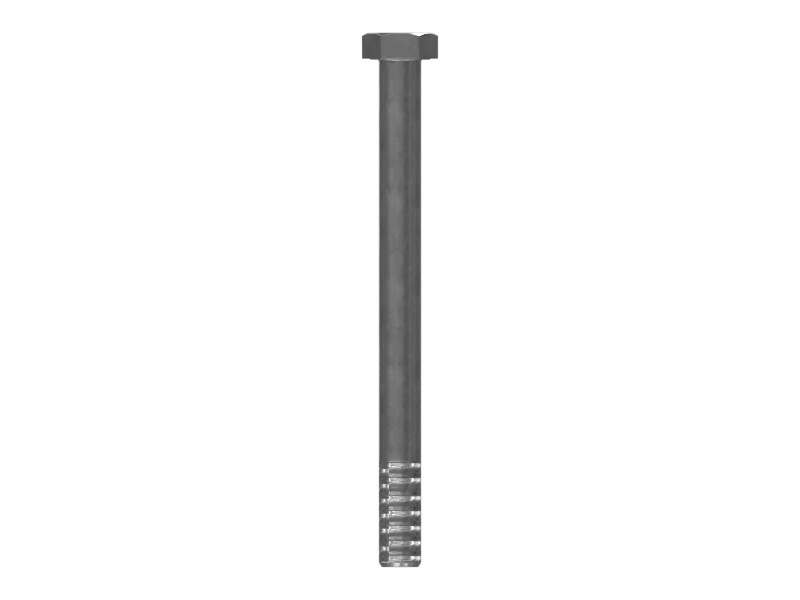

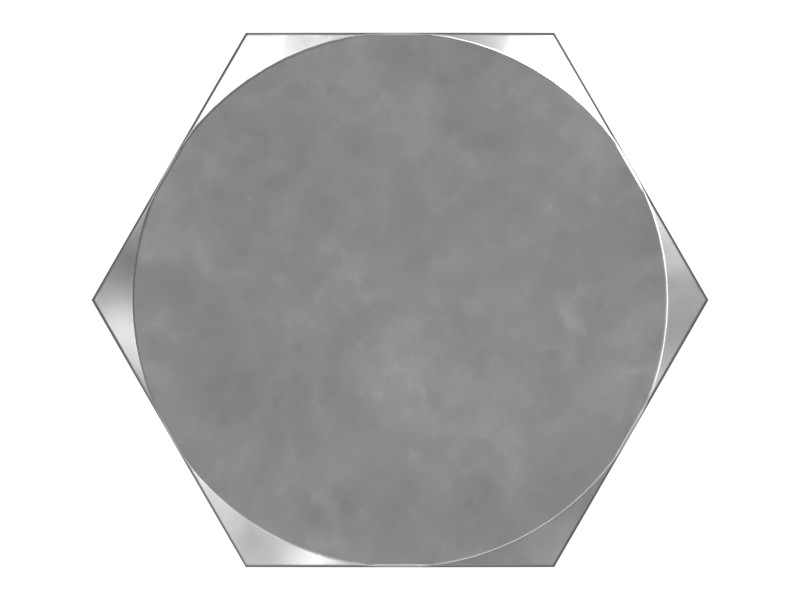

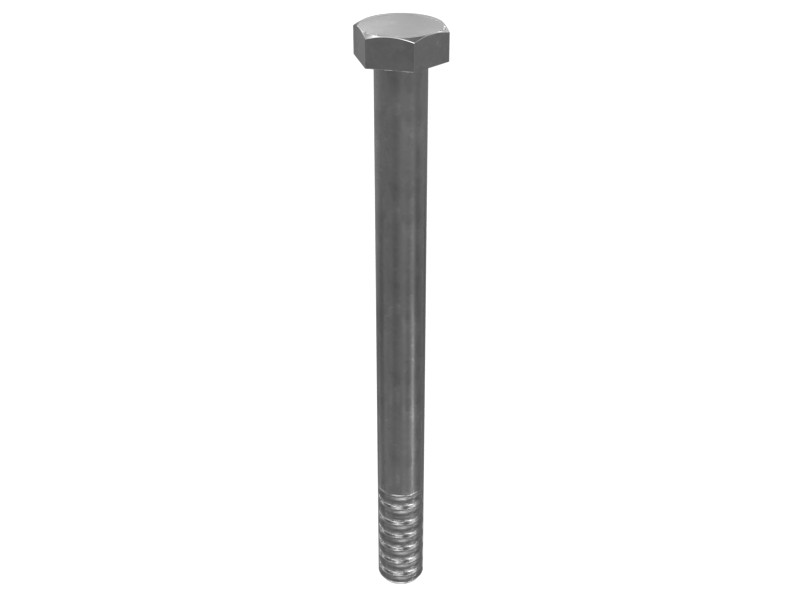

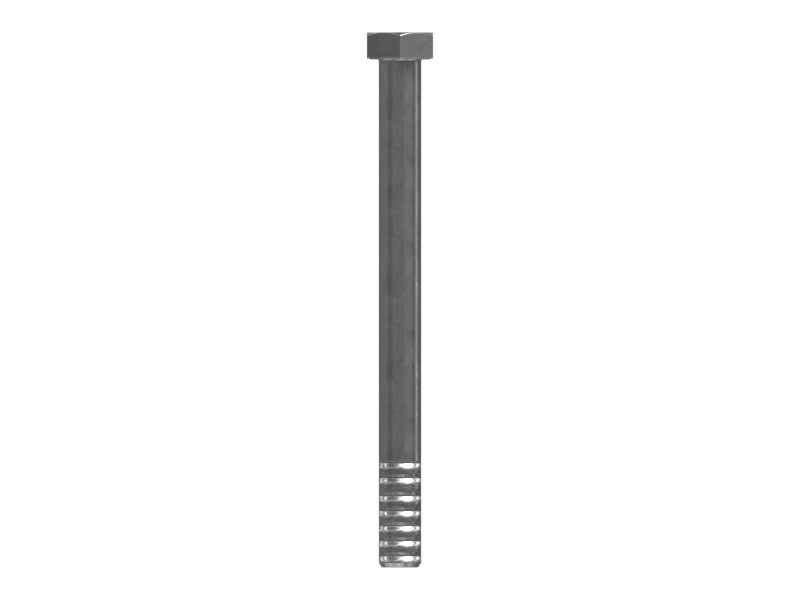

550-3570 M48-5 x 580 mm Hex Head Bolt
Cat® M48x5 Steel Hex Head Bolt for Counterweight Frames
Description
The cylinder head bolts of the counterweight frame can be a structural frame or bracket used to provide additional stability or balance when tightening the engine cylinder head bolts. The counterweight aspect of this component can refer to an integrated mechanism or design feature used to offset any imbalance or force applied during the tightening of the cylinder head bolts.
Attributes
- Prevents any unintended tilting
Applications
The cylinder head bolts of the counterweight frame provide support or guidance during engine assembly, helping engine technicians or mechanics position the cylinder head correctly and tighten the cylinder head bolts precisely. The design and function of the frame may help distribute torque evenly during head bolt tightening, ensuring consistent and accurate torque is applied to each head bolt.
Specifications
| Thread Direction | RH |
|---|---|
| Class or Grade | Cat/ISO 898-1 Class 11.9 |
| Thread Size (Diameter × Pitch) | M48x5 mm |
| Locking Feature | None |
| Thread Size | M48 mm (0 in) |
| Thread Size (in – TPI) | M48-5 in |
| Thread | Rough Milled |
| Bolt Length | 580 mm (22.83 in) |
| Bolt Type | Hex Head |
| Coating | Zinc Flake |
| Handle Length | 459 mm (18.07 in) |
Compatible Equipment
- Excavators: 6040
Additional information
| Machine Model | |
|---|---|
| Equipment Type | |
| Part Source | Genuine OEM |
