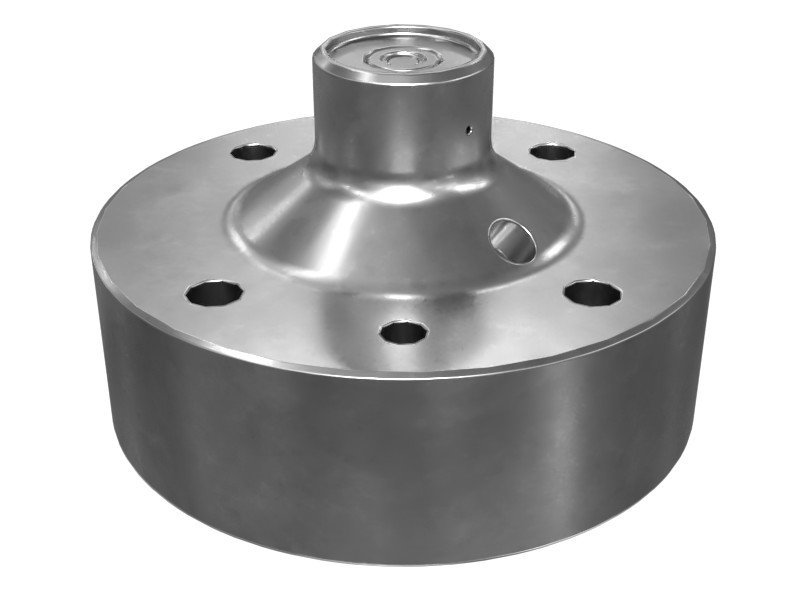

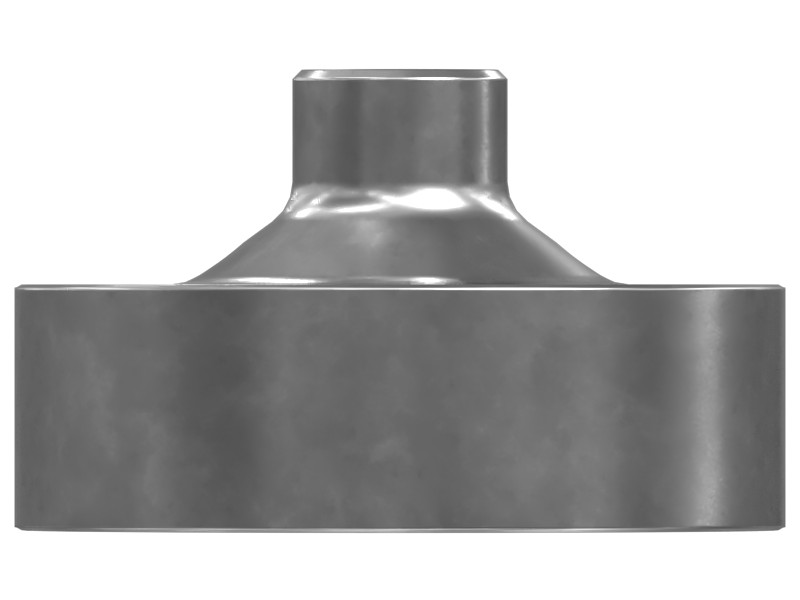

545-7125 Transmission Planetary Gear Drive Adapter
Cat® Drive Adapter, 31 Tooth Internal Spline, OD x Length: 126 x 75 mm
Description
Adapter 545-7125 is a steel adapter that mounts on the planetary gear carrier and drives the governor drive shaft on certain off-highway truck models.
Features
- Steel drive adapter with expander plug
- Number of Internal Spline Teeth: 31
- Bearing seat diameter: 80.013 mm (3.15 in)
- Outside Diameter: 125.6 mm (4.9 in)
- Hole Size: 11 mm (0.4 in) (4X)
- Thread Size: 3/8-16 (2X)
Applications
Refer to your Operation and Maintenance Manual or contact MECHSC for more information.
Specifications
| Inside Diameter | 80 (Bearing Seat) mm (3.1 in) |
|---|---|
| Outside Diameter | 126 mm (4.9 in) |
| Hole Size | 11 (4X) mm (0.4 (4X) in) |
| Length | 75 mm (3 in) |
| Thread Size | 3/8-16 (2X) in |
Compatible Equipment
- Excavators: 3516E
- Off-Highway Trucks: 793D, 789D, 785D, 785, 793, 789
Additional information
| Machine Model | |
|---|---|
| Equipment Type | |
| Part Source | Genuine OEM |
