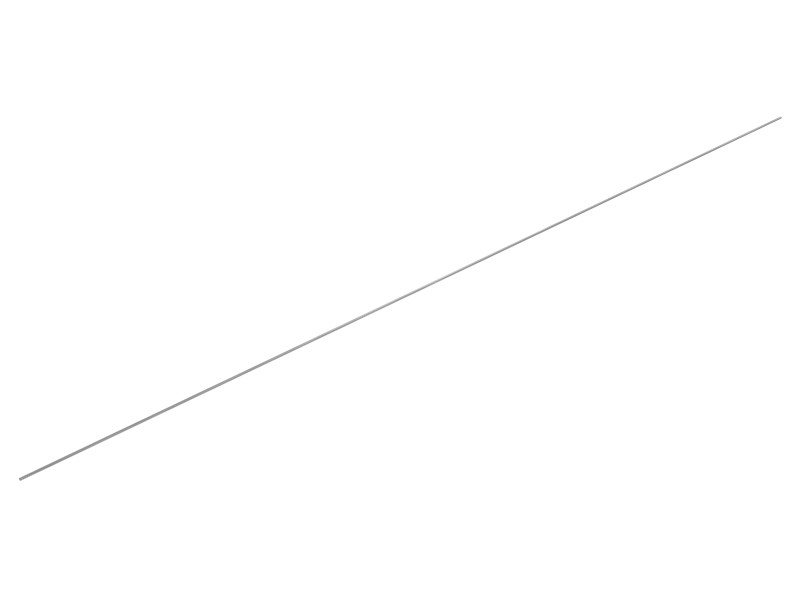

541-7136 22.2 mm ID Bulk Hose
Engine and Air Brake Hose
Wholesale only · Full payment before shipment · Send your machine nameplate to confirm fitment
Fitment data not listed — send us your machine model or serial number to confirm.
Description
Cat hoses are designed to route liquids and gases through machine systems. These hoses are made of quality materials built to withstand the application-specific pressure, vibration resistance and flow requirements of Cat heavy-duty equipment. Cat hydraulic hoses and couplings are tested using some of the most rigorous processes in the industry. Every Cat hose and coupling combination is tested as a system to ensure a perfect fit, maximizing safety and reliability.

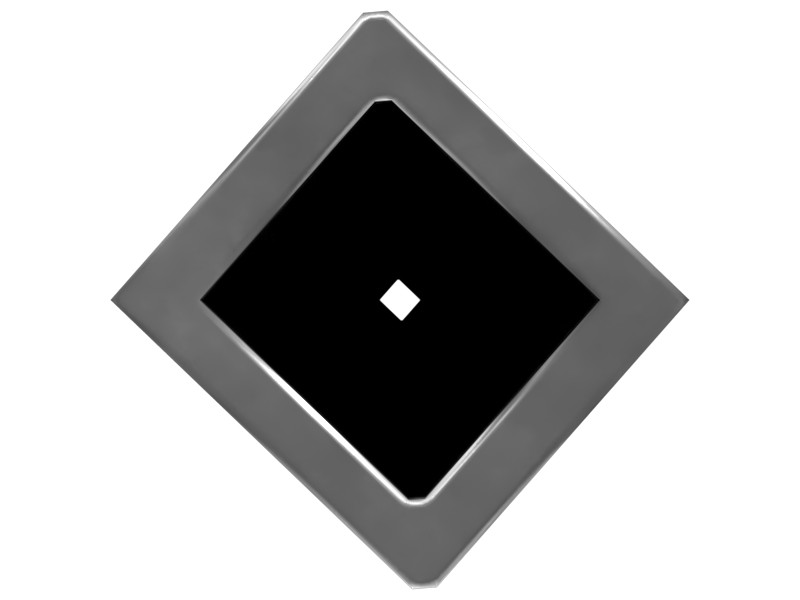

The hose is made of a synthetic rubber tube, a fabric inner braid layer, a high-tensile steel wire braid reinforcement layer and a fabric braid cover.
Specifications
| Hose Warning | Improper selection of hose and coupling combinations will void the warranty and may result in serious injury or death, property damage, or component and machine system failure. Cat® hose assembly products are designed and tested as a system to achieve reliable connections, maximizing hydraulic system safety and reliability. In addition, use of properly maintained, appropriate Caterpillar tooling is recommended to ensure hoses are crimped to specification. Using Caterpillar hose with another manufacturer's couplings, or Caterpillar couplings with another manufacturer's hose, may result in hose assemblies that are unreliable, unsafe or perform poorly. Caterpillar does not recommend or endorse this practice. For more information, refer to SAE J1273 Section 6.3 and ISO 17165-2 Section 6.3. |
|---|---|
| Bulk Unit of Measure | CM |
| Inside Diameter | 22.2 mm (0.87 in) |
| Dash Size | -14 in |
| Outside Diameter | 31.5 mm (1.24 in) |
| Operating Pressure | 5600 kPa (812 psi) |
| Operating Temperature | -40°C to 121°C |
| Pressurization Capability | 22400 psi |
| SAE | SAE 100R5 |
Additional information
| Part Source | Genuine OEM |
|---|
